Home / Danfoss (Drives) / Danfoss Hansen® quick disconnect couplings / Danfoss B24AS25M

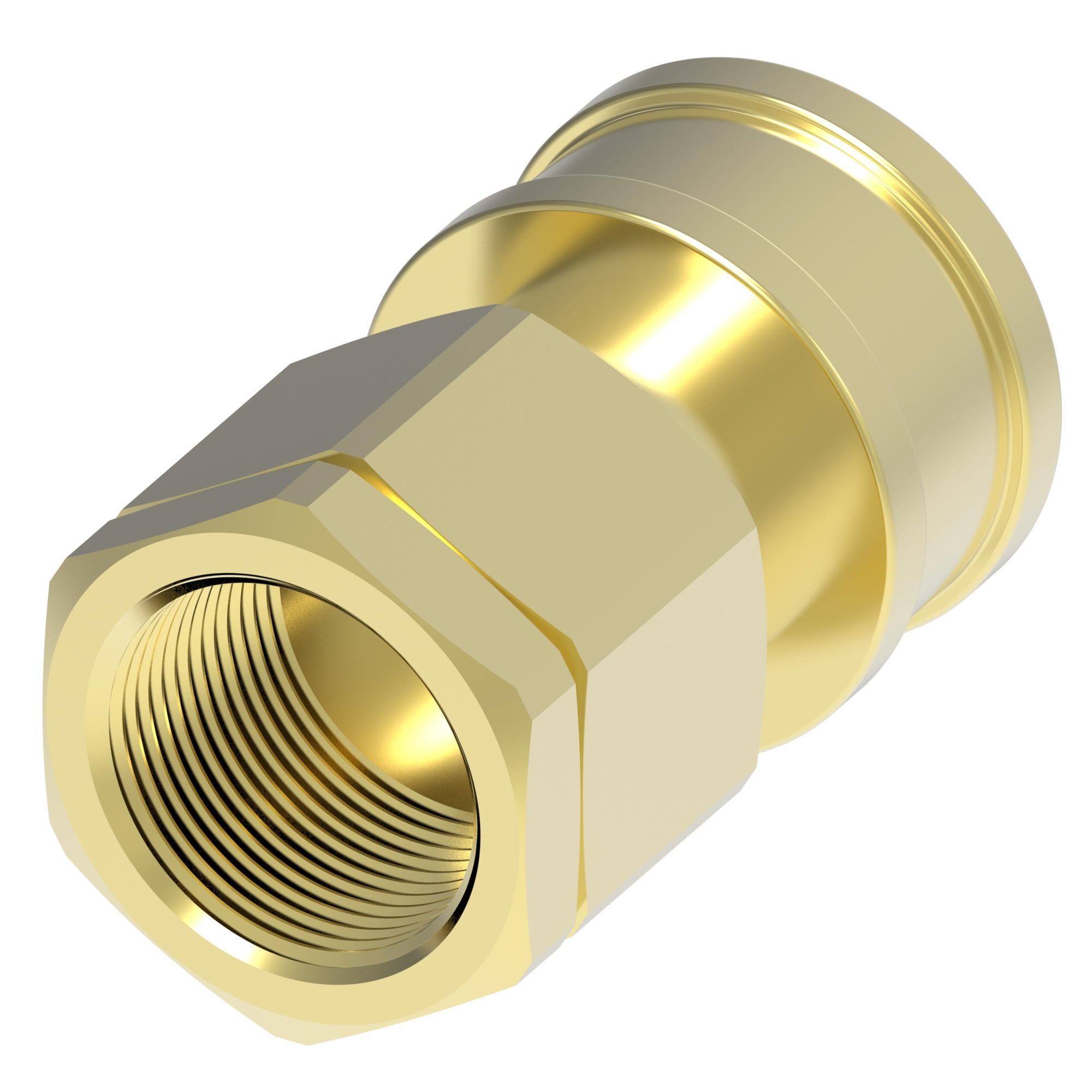

Danfoss B24AS25M

Cplng, AUTOFLO 24 SERIES FEMALE, BRASS

MPN: B24AS25M
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B24AS25M?

Danfoss Cplng, AUTOFLO 24 SERIES FEMALE, BRASS, manufacturer part number B24AS25M. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146202079
Angle shape	Straight
Body size	1/4
Brand	Danfoss
Burst pressure min bar	41
Burst pressure min psi	600
Connection style	Automatic connect
End size 2	-4
End Type 1	Female Push to Connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	336.56
Flow rate LPM	1274.02
Fluid compatibility	Compressed air
Hex size 1 IN	0.810
Hex size 1 MM	20.574
Item type	Female half
Latch type	Push/pull
Product length in	2.270
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Working pressure max psi	150
Working pressure max BAR	10.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

B24AS25M: frequently asked questions

When can B24AS25M be shipped?

B24AS25M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up B24AS25M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for B24AS25M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B24AS25M, subject to availability and destination.
