Danfoss B20K

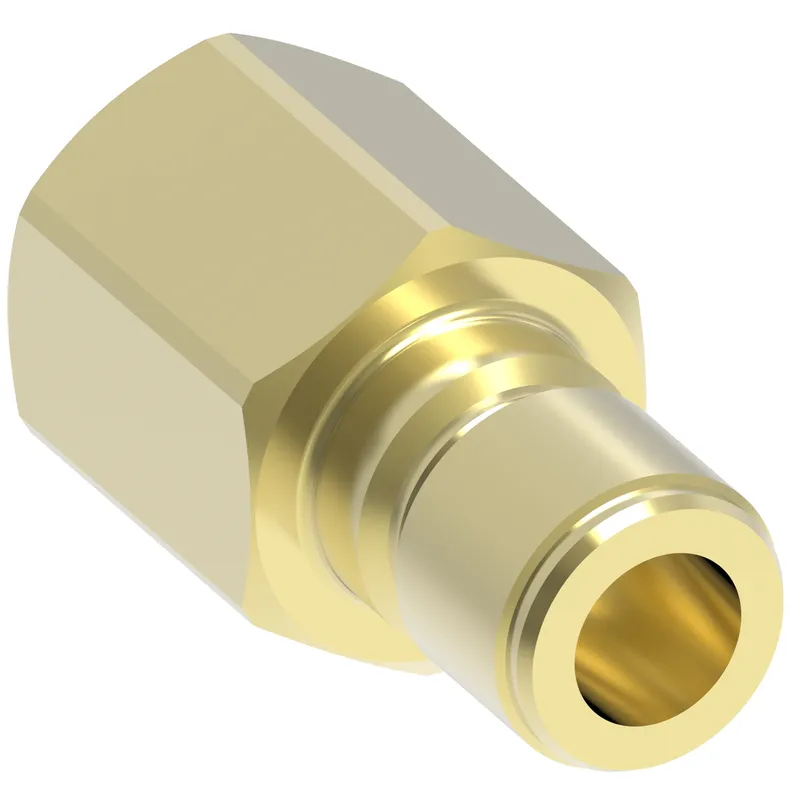

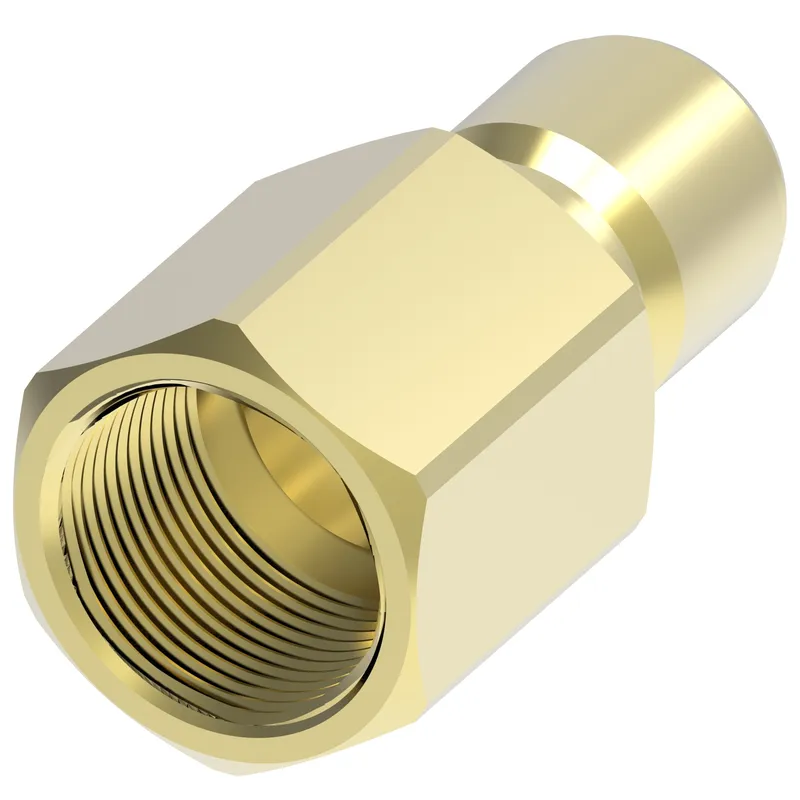

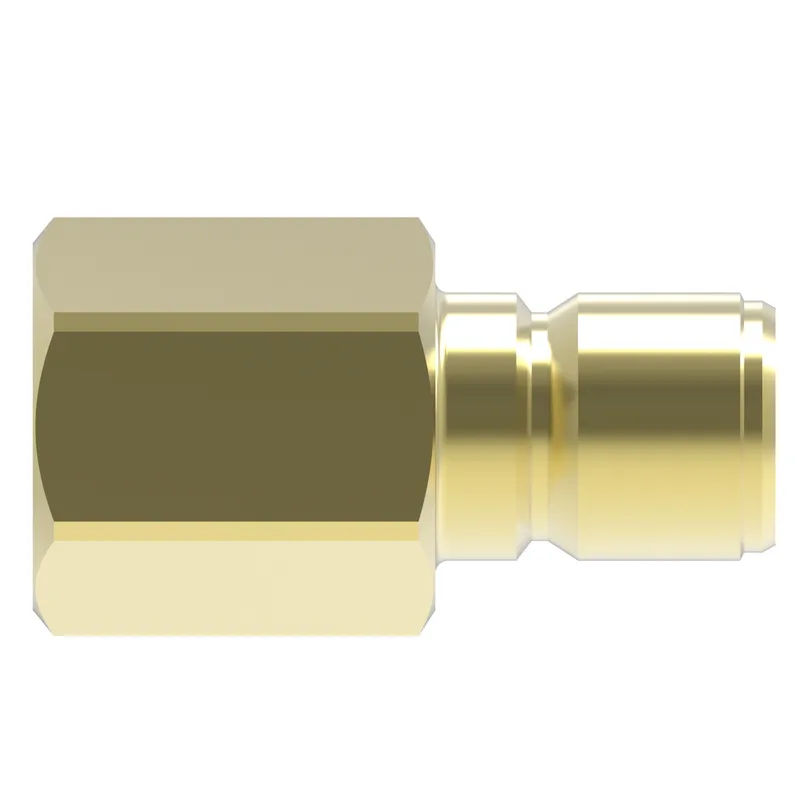

COUPLING,HK,M,2"1/2,B,-48NPTF,NBR

MPN: B20K
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B20K?

Danfoss COUPLING,HK,M,2"1/2,B,-48NPTF,NBR, manufacturer part number B20K. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146202000
Air inclusion max cc	209.90
Air inclusion max in3	12.81
Angle shape	Straight
Application	Agriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Nuclear, Oil and gas, Transportation, Trucks
Body size	2 1/2"
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End Type 1	Male push to connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	200.00
Flow rate LPM	757.08
Fluid compatibility	Hydraulic fluid
Fluid loss cc	209.90000
Fluid loss in3	12.80900
Hex size 1 IN	3.750
Hex size 1 MM	95.250
Item type	Male half
Latch type	Push/pull
Product material	Brass
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Valve type	2 way
Working pressure max psi	700
Working pressure max BAR	48.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

B20K: frequently asked questions

When can B20K be shipped?

B20K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up B20K in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for B20K and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B20K, subject to availability and destination.
