Danfoss B12H41SL

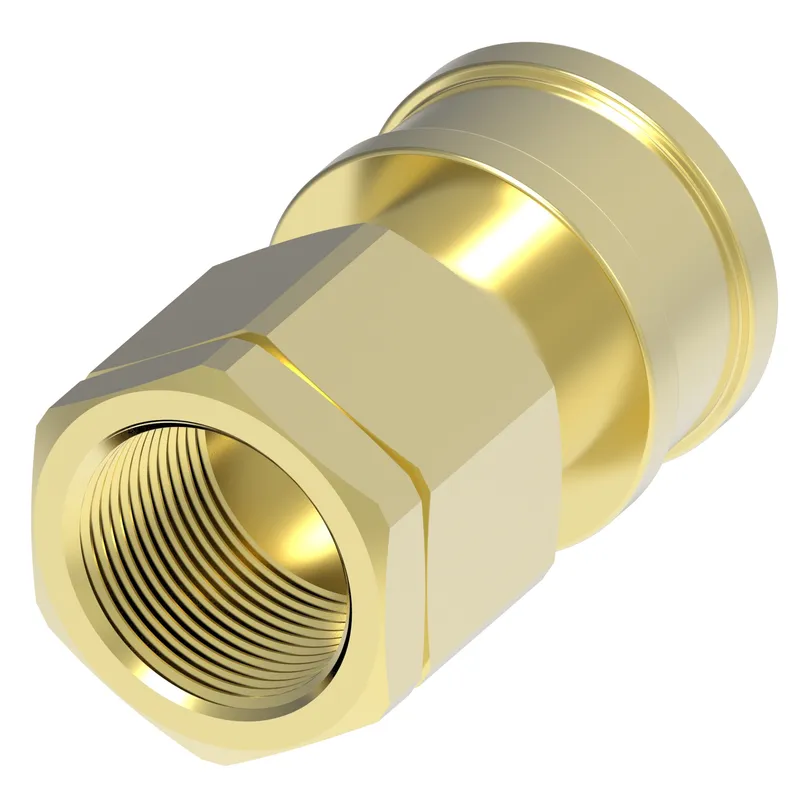

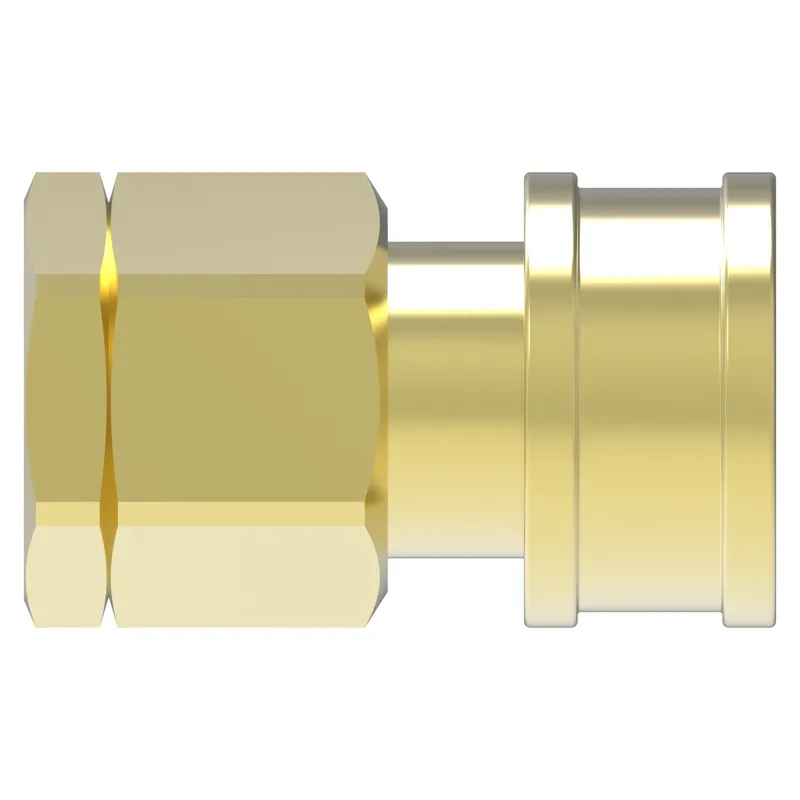

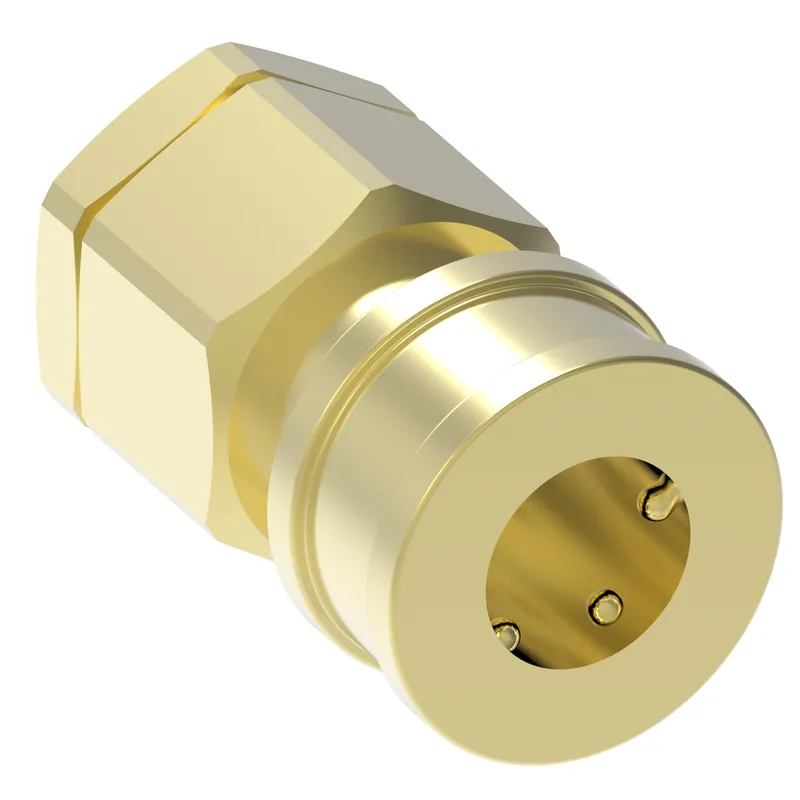

Cplng, HK SERIES SOCKET,BRASS

MPN: B12H41SL
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss B12H41SL?

Danfoss Cplng, HK SERIES SOCKET,BRASS, manufacturer part number B12H41SL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146105813
Air inclusion max cc	91.30
Air inclusion max in3	5.57
Angle shape	Straight
Body size	1 1/2"
Brand	Danfoss
Connection style	Manual connect
End size 2	-20
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Flow rate GPM	99.00
Flow rate LPM	374.76
Fluid compatibility	Hydraulic fluid
Fluid loss cc	91.30000
Fluid loss in3	5.57100
Hex size 1 IN	2.380
Hex size 1 MM	60.452
Item type	Female half
Latch type	Push/pull
Product length in	4.820
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	1500
Working pressure max BAR	103
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
