Danfoss ACHC-221622OGSVRNW

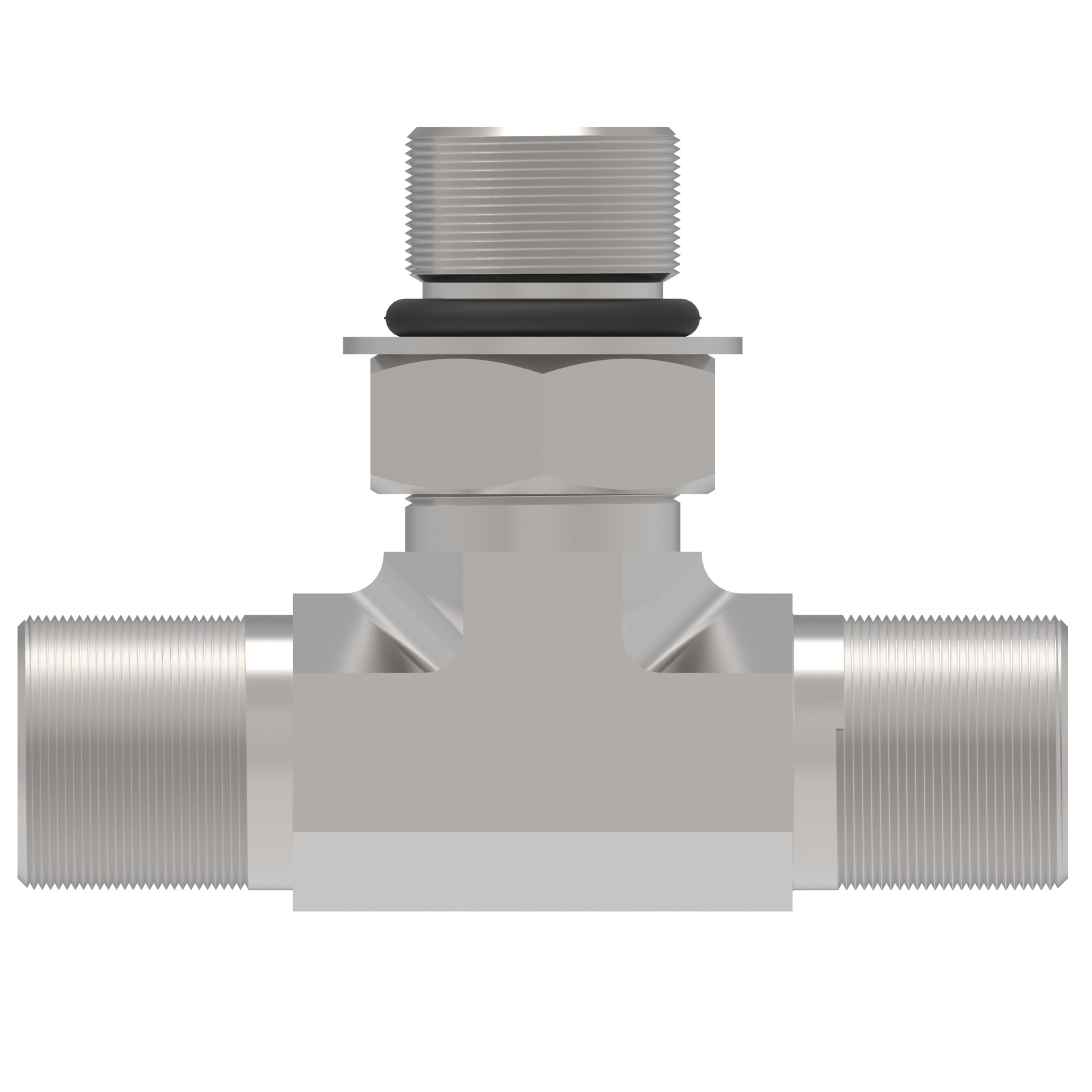

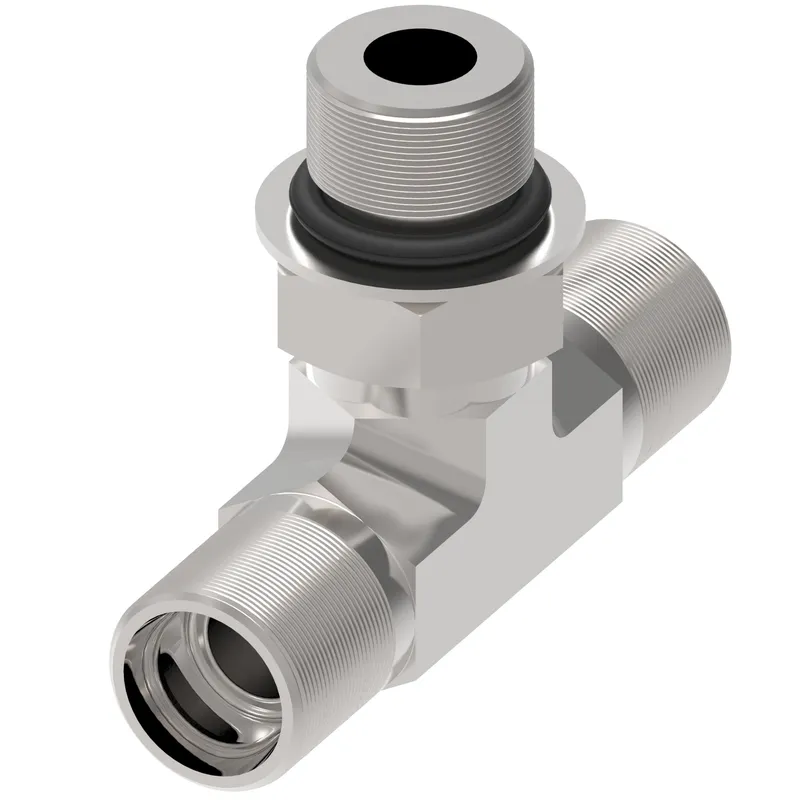

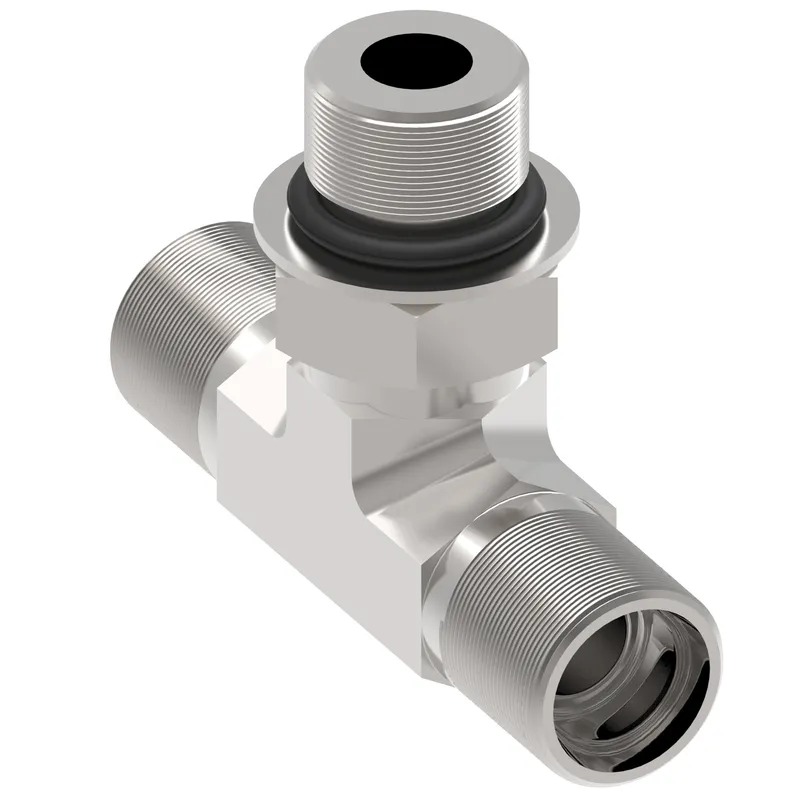

Adapter-TEE,ACHC,15LM1615L,316L,FKM,PA

MPN: ACHC-221622OGSVRNW
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss ACHC-221622OGSVRNW?

Danfoss Adapter-TEE,ACHC,15LM1615L,316L,FKM,PA, manufacturer part number ACHC-221622OGSVRNW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Winner by Danfoss
Complete connector	Yes
End size 1	15L
End size 2	M16
End size 3	15L
End Type 1	24 degree tube port light duty
End Type 2	Male adjustable ORB ISO 6149-2
End type 3	24 degree tube port light duty
Finish plating	Passivate
Hex size 1 MM	27.000
Hex size 2 MM	22.000
Hex size 3 MM	27.0
Hex size 5 MM	22.0
Item type	Adapter-tee
Product material	316L Stainless steel
Product serial name	ACHC
Seal material	Fluorocarbon (FKM)
Thread sealant	No
Thread size 1	M22x1.5
Thread size 2	M16x1.5
Thread size 3	M22x1.5
