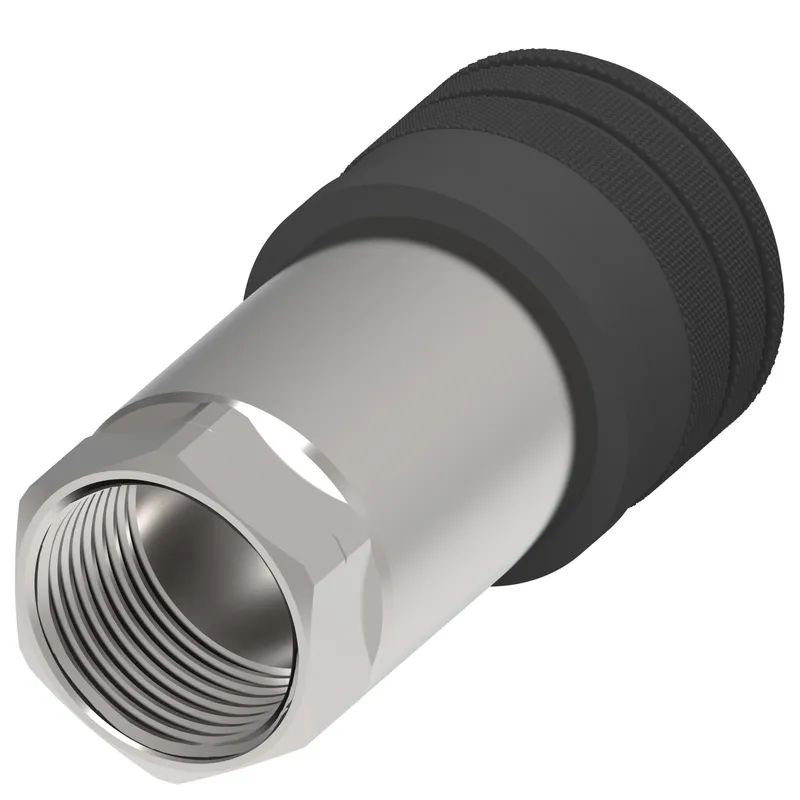

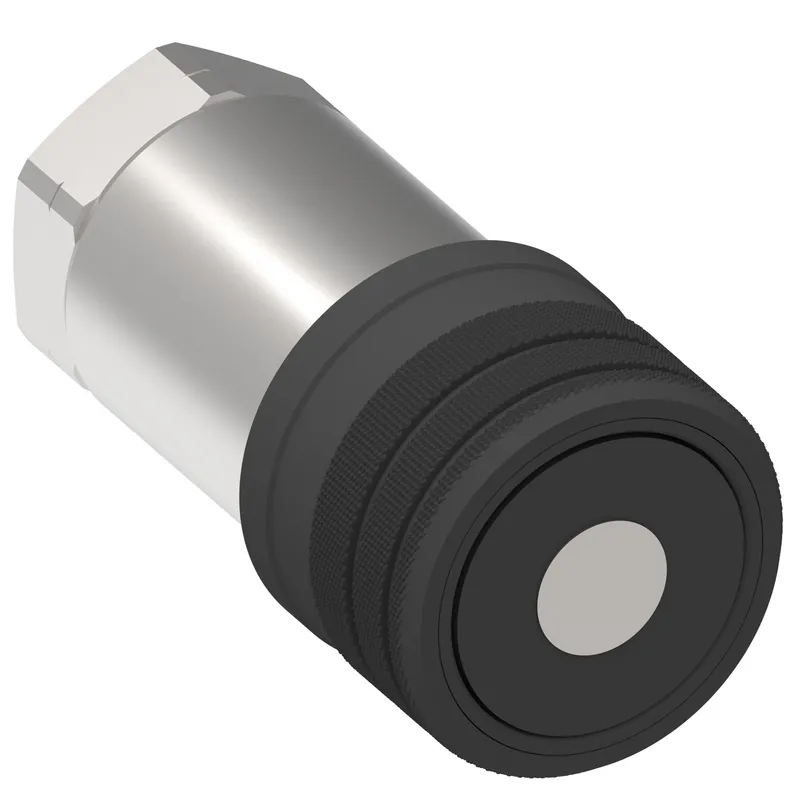

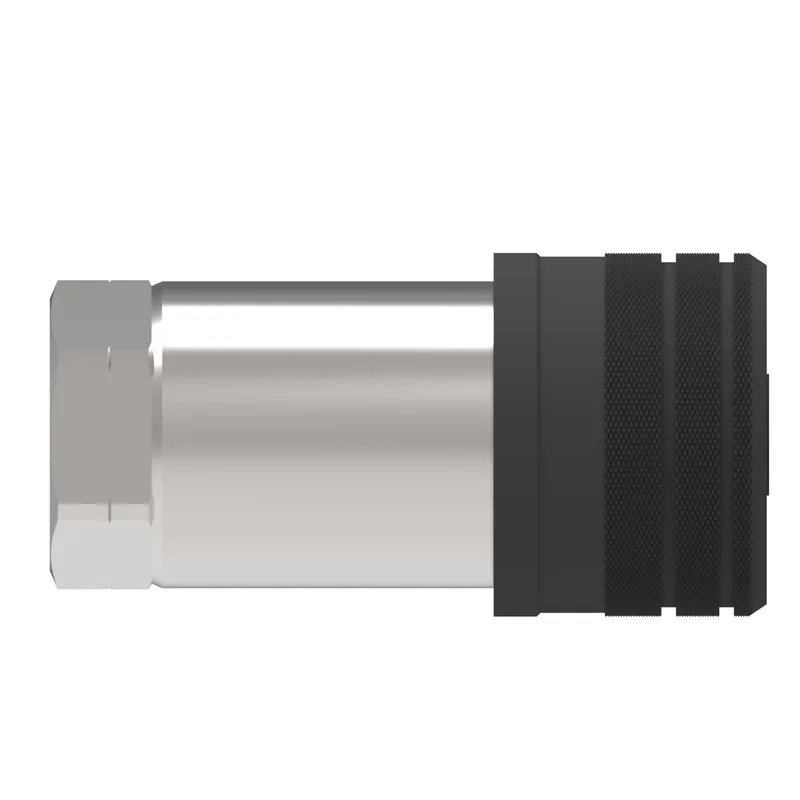

Danfoss A2DBS25BSRD

COUPLING,ADB,F,1/4,ALU,-4BSPP,EPDM

MPN: A2DBS25BSRD
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss A2DBS25BSRD?

Danfoss COUPLING,ADB,F,1/4,ALU,-4BSPP,EPDM, manufacturer part number A2DBS25BSRD. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Air inclusion max cc	0.00
Angle shape	Straight
Application	Cooling applications, Data centers, Process industry, Railways, Renewable energy
Body size	1/4
Brand	Danfoss
Connection style	Manual connect
End size 1	-4
End type 1	Female BSPP port washer seal.
Flow rate GPM	6.60
Fluid loss cc	0.00100
Hex size 1 IN	0.870
Item type	Female half
Latch type	Push to connect
Product material	Aluminum
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	G 1/4
Valve type	2 way
Working pressure max psi	360
Working temperature max F	250
Working temperature min F	-40

A2DBS25BSRD: frequently asked questions

When can A2DBS25BSRD be shipped?

A2DBS25BSRD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up A2DBS25BSRD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for A2DBS25BSRD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for A2DBS25BSRD, subject to availability and destination.
