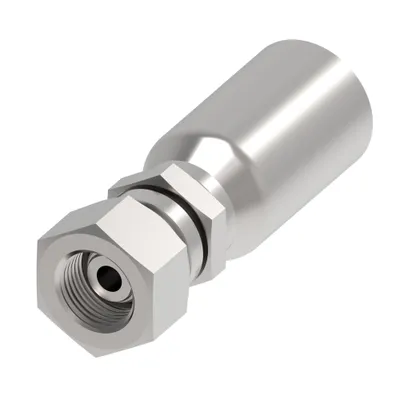

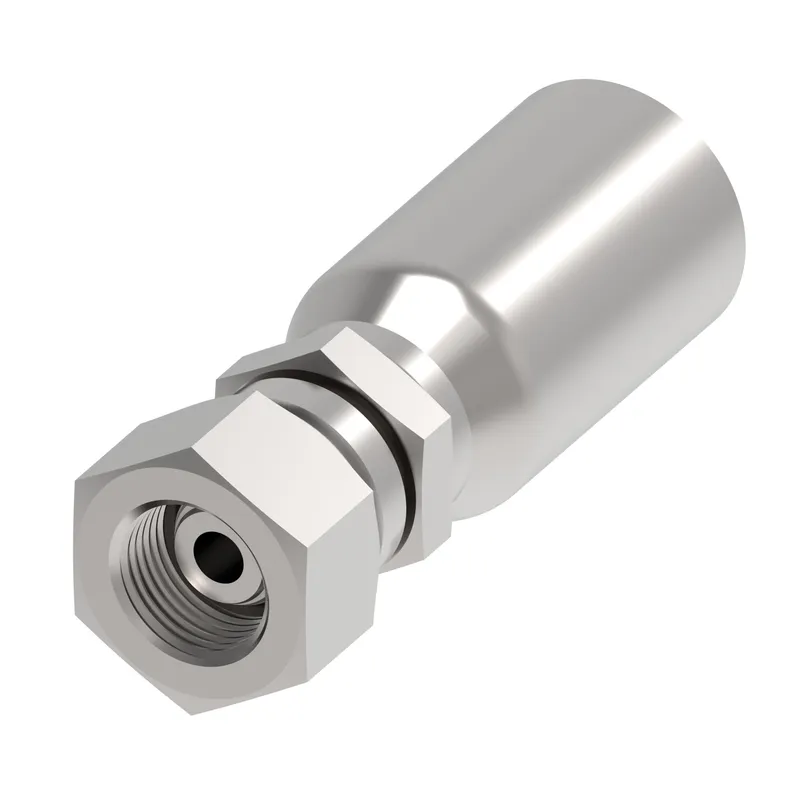

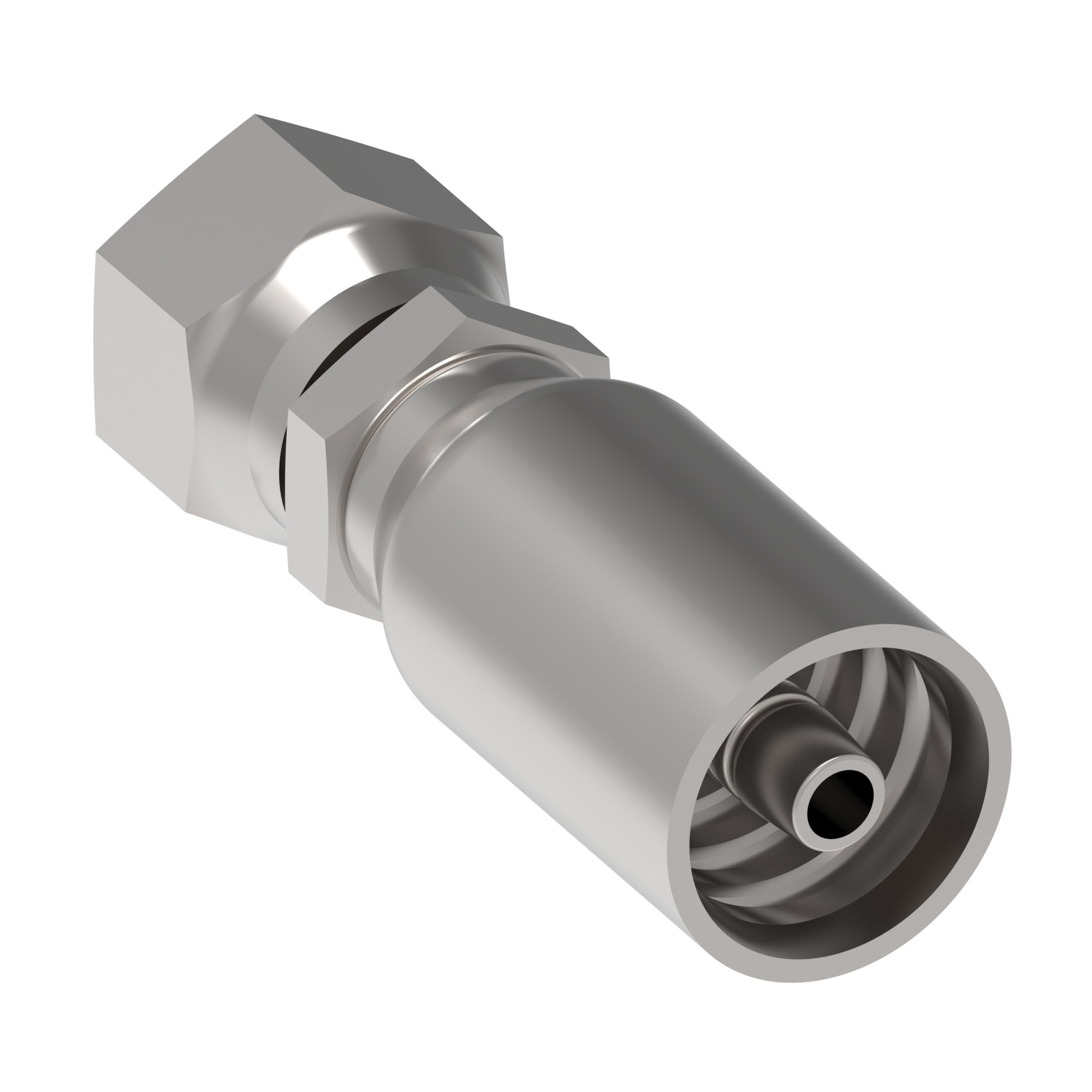

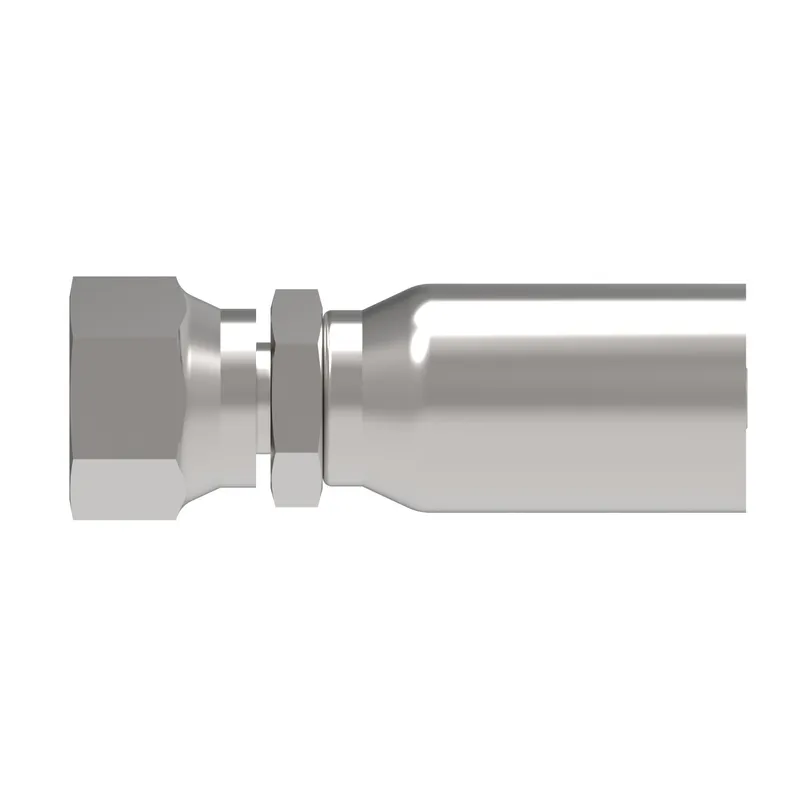

Danfoss 9MH04-04B000

HOSE FTG, SS/04, BSP-F/04, CS, STR

MPN
9MH04-04B000
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 9MH04-04B000?

Danfoss HOSE FTG, SS/04, BSP-F/04, CS, STR, manufacturer part number 9MH04-04B000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.240
A dimension MM56.800
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Construction StyleCrimp
End size 1-4
End type 1Female ORB port BSPP
Hex size 1 IN0.748
Hex size 1 MM19.000
Hex size 2 IN0.669
Hex size 2 MM17.000
Hose cut off factor IN1.150
Hose cut off factor MM29.200
Hose size-4
Inside diameter IN0.160
Inside diameter MM4.000
Product height in0.810
Product height mm20.574
Product length in2.240
Product length mm56.896
Product materialCarbon steel
Product width in0.810
Product width mm20.574 mm
Seal materialNitrile (NBR)
Thread sealantNo
Thread size 1G 1/4
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

9MH04-04B000: frequently asked questions

When can 9MH04-04B000 be shipped?

9MH04-04B000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 9MH04-04B000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 9MH04-04B000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9MH04-04B000, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 9MA04-045400 – HOSE FTG, SS/04, JIC-F/04, AP, STR
Danfoss
9MA04-045400

HOSE FTG, SS/04, JIC-F/04, AP, STR

Danfoss 9MA06-065500 – HOSE FTG, SS/06, JIC-F/06, AP, STR
Danfoss
9MA06-065500

HOSE FTG, SS/06, JIC-F/06, AP, STR

Danfoss 9MA08-085400 – HOSE FTG, SS/08, JIC-F/08, AP, STR
Danfoss
9MA08-085400

HOSE FTG, SS/08, JIC-F/08, AP, STR

Danfoss 9MA12-125500 – HOSE FTG, SS/12, JIC-F/12, AP, STR
Danfoss
9MA12-125500

HOSE FTG, SS/12, JIC-F/12, AP, STR

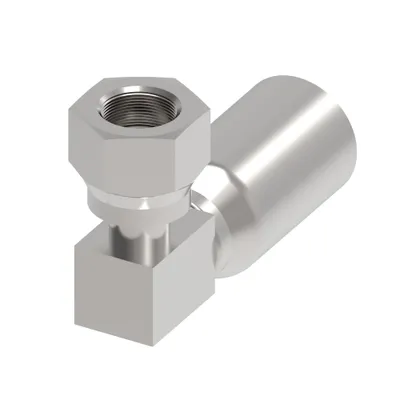

Danfoss 9MH04-04B0B0 – HOSE FTG, SS/04, BF/04, CS, 90D
Danfoss
9MH04-04B0B0

HOSE FTG, SS/04, BF/04, CS, 90D

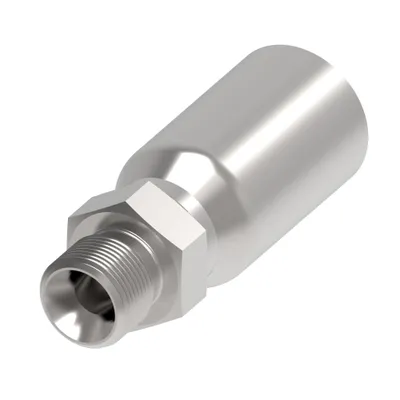

Danfoss 9MH04-04R100 – HOSE FTG, SS/04, BSPJ/04, CS, STR
