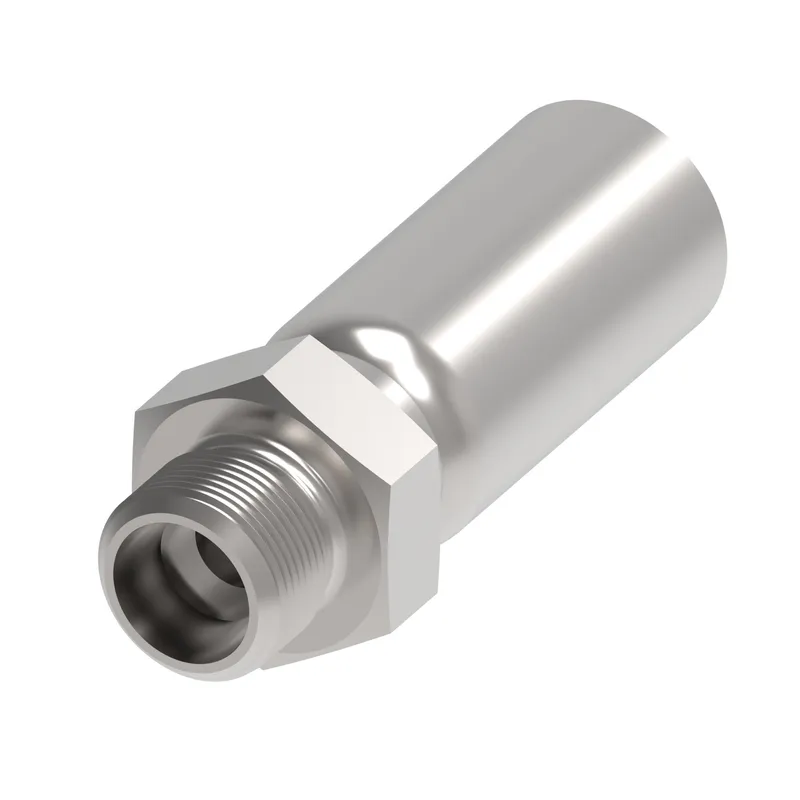

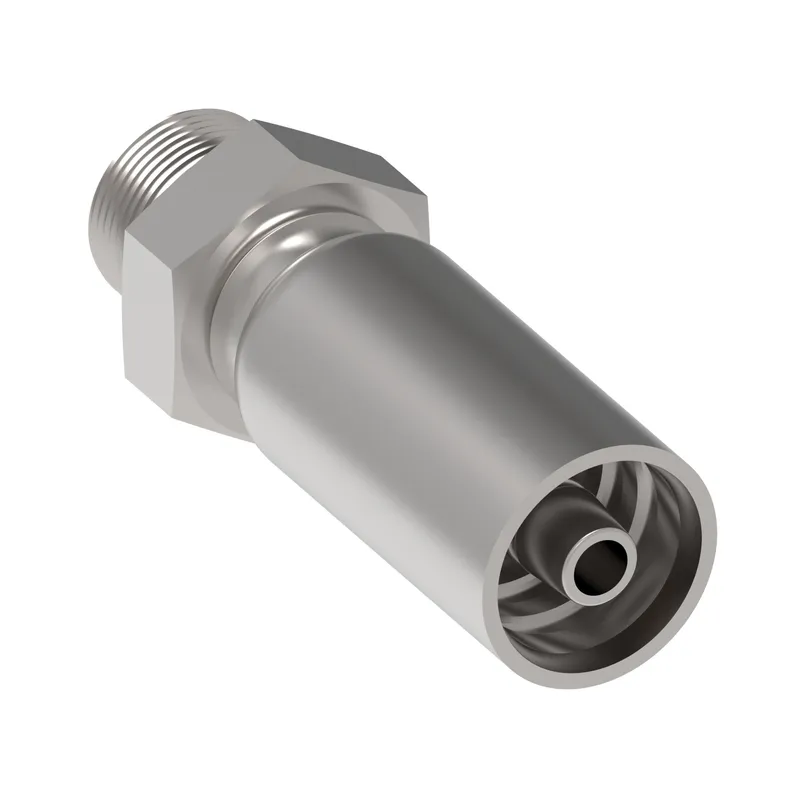

Danfoss 9M305-20SS00

HOSE FTG, SS/20, DKOH-B/05, CS, STR

MPN
9M305-20SS00
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 9M305-20SS00?

Danfoss HOSE FTG, SS/20, DKOH-B/05, CS, STR, manufacturer part number 9M305-20SS00. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.430
A dimension MM61.600
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM7.874
Construction StyleCrimp
End size 1-5
End type 124 deg. DKO swivel heavy duty
Finish platingDura-Kote
Hex size 1 IN0.944
Hex size 1 MM24.000
Hose cut off factor IN1.240
Hose cut off factor MM31.500
Hose size-5
Inside diameter IN0.220
Inside diameter MM5.600
Product height in1.090
Product height mm27.686
Product length in2.430
Product length mm61.722
Product materialCarbon steel
Product width in0.950
Product width mm24.130 mm
Thread sealantNo
Thread size 1M20X1.5
Working pressure max BAR400
Working pressure max PSI5800
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

9M305-20SS00: frequently asked questions

When can 9M305-20SS00 be shipped?

9M305-20SS00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 9M305-20SS00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 9M305-20SS00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9M305-20SS00, subject to availability and destination.
