Danfoss 9M304-10N090

TUBE NIPPLE, SS/04, 10, CS

MPN
9M304-10N090
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 9M304-10N090?

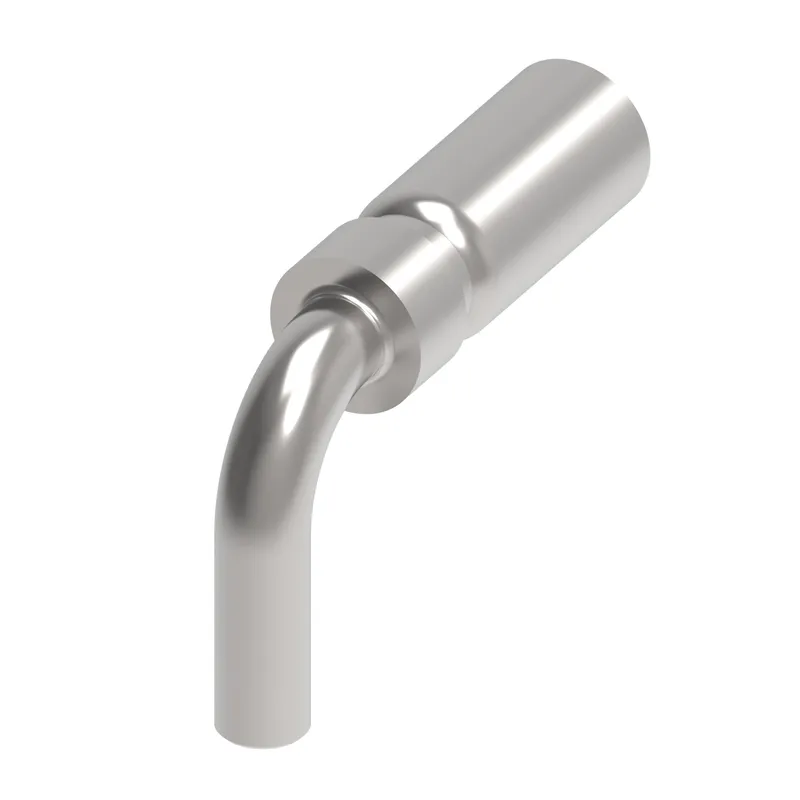

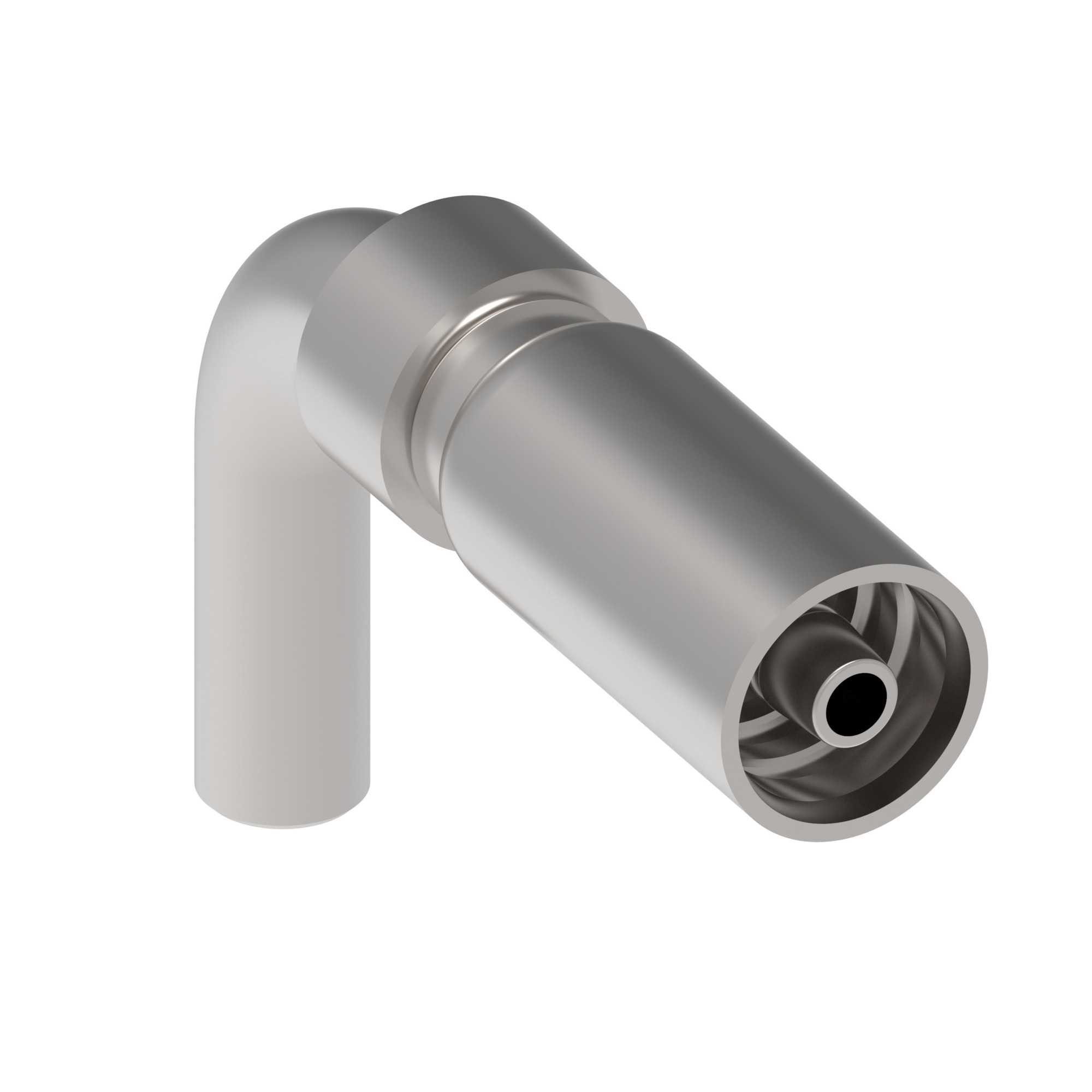

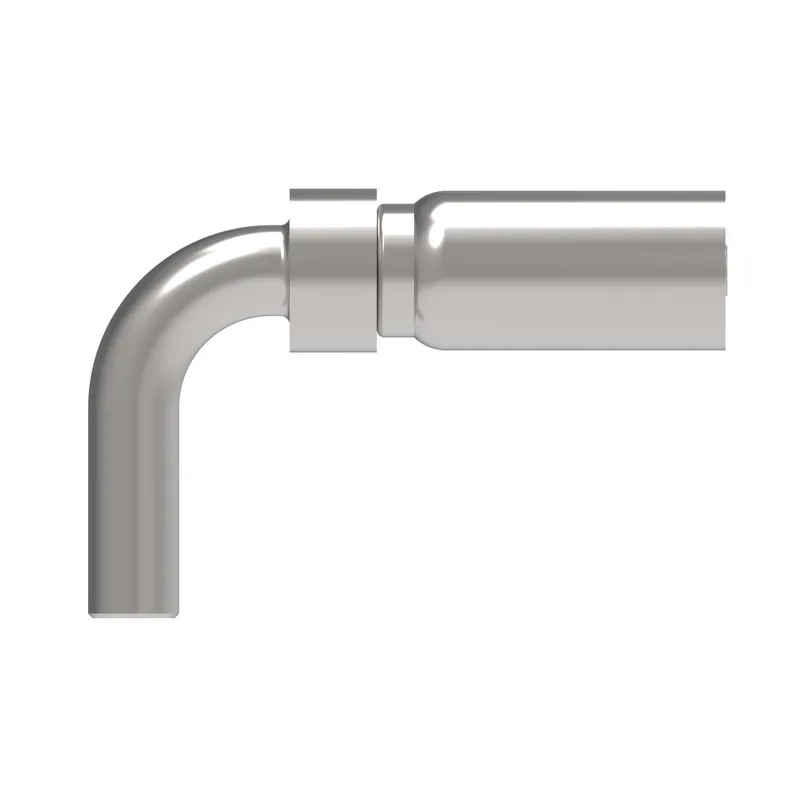

Danfoss TUBE NIPPLE, SS/04, 10, CS, manufacturer part number 9M304-10N090. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.380
A dimension MM60.400
Angle shape90 Degree
Compatible hose ID IN0.620
Compatible hose ID MM6.350
Construction StyleCrimp
Drop dimension IN2.000
Drop dimension MM2.00
End size 1-4
End type 1Male braze
Finish platingDura-Kote
Hex size 1 IN0.669
Hex size 1 MM17.000
Hose cut off factor IN1.290
Hose cut off factor MM32.800
Hose size-4
Inside diameter IN0.160
Inside diameter MM4.000
Product height in1.850
Product height mm46.990
Product length in2.760
Product length mm70.104
Product materialCarbon steel
Product width in0.690
Product width mm17.526 mm
Thread sealantNo
Working temperature max C100
Working temperature max F212
Working temperature min C40
Working temperature min F40

9M304-10N090: frequently asked questions

When can 9M304-10N090 be shipped?

9M304-10N090 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 9M304-10N090 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 9M304-10N090 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9M304-10N090, subject to availability and destination.
