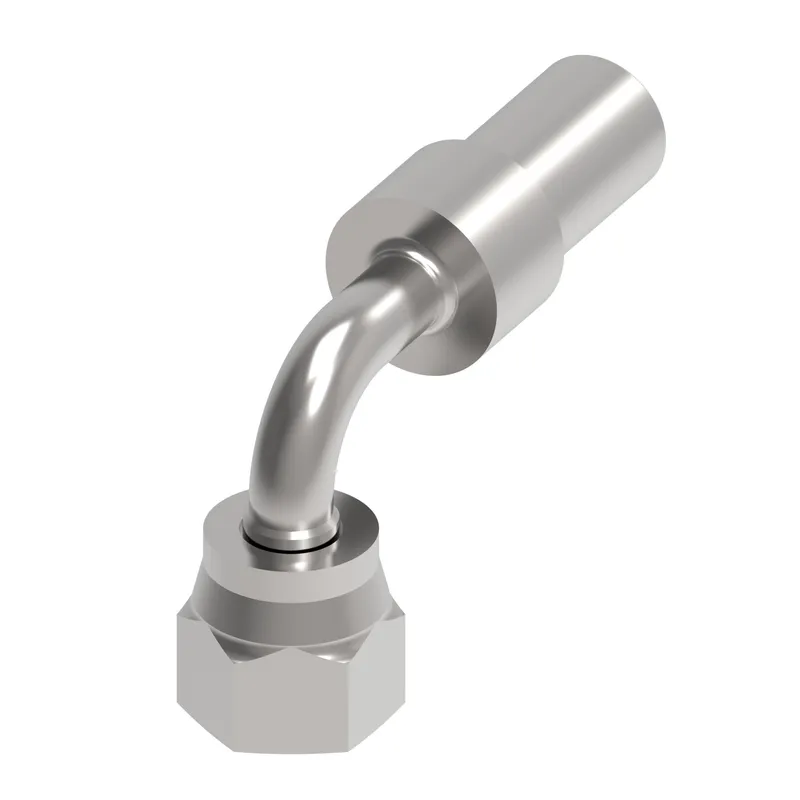

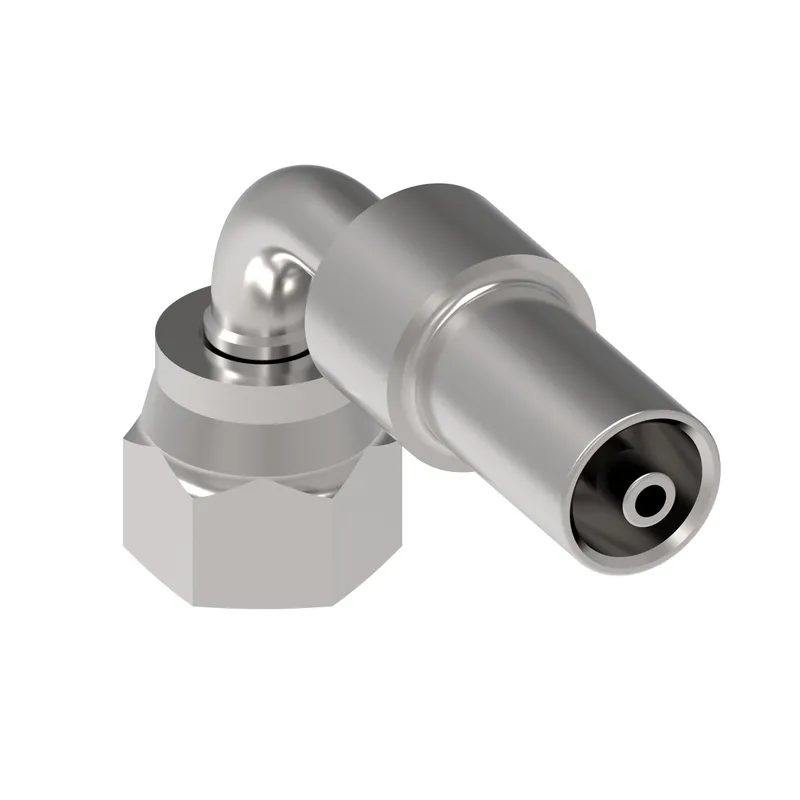

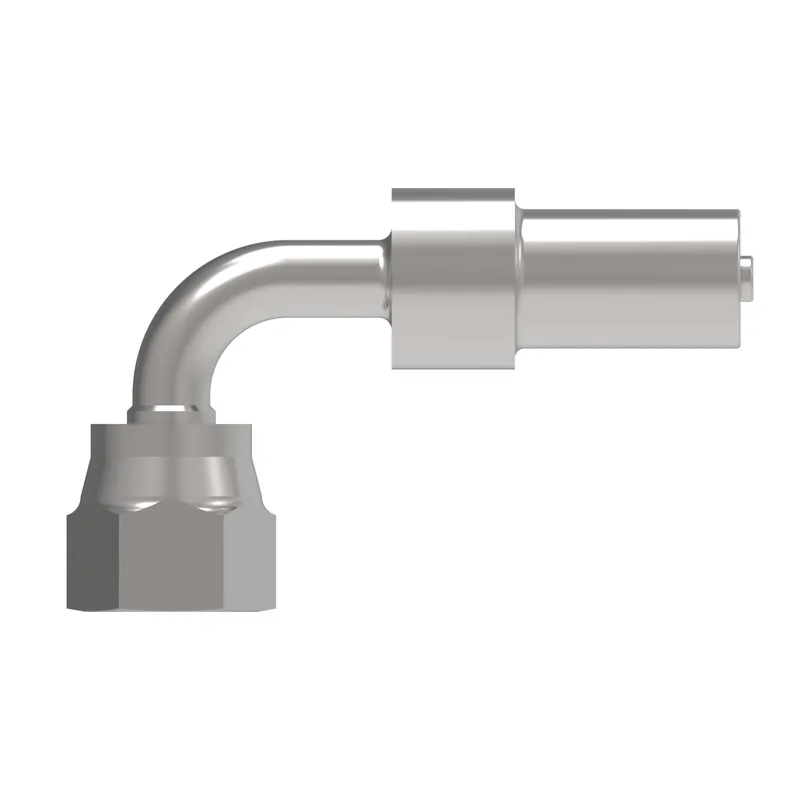

Danfoss 9M302-02V490

HOSE NIPPLE ASSY, SS/02, BF/02, CS, 90D

MPN
9M302-02V490
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 9M302-02V490?

Danfoss HOSE NIPPLE ASSY, SS/02, BF/02, CS, 90D, manufacturer part number 9M302-02V490. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN1.770
A dimension MM44.900
Angle shape90 Degree
BrandSynflex by Danfoss
Compatible hose ID IN0.120
Compatible hose ID MM3.302
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM19.00
End size 1-2
End type 1Female BSPP swivel
Hex size 1 IN0.551
Hex size 1 MM14.000
Hose cut off factor IN1.170
Hose cut off factor MM29.600
Hose size-2
Inside diameter IN0.080
Inside diameter MM2.100
Product height in1.310
Product height mm33.274
Product length in2.090
Product length mm53.086
Product materialCarbon steel
Product width in0.550
Product width mm13.970 mm
Thread sealantNo
Thread size 1G 1/8
Working pressure max BAR350
Working pressure max PSI5100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

9M302-02V490: frequently asked questions

When can 9M302-02V490 be shipped?

9M302-02V490 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 9M302-02V490 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 9M302-02V490 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9M302-02V490, subject to availability and destination.
