Danfoss 9522763

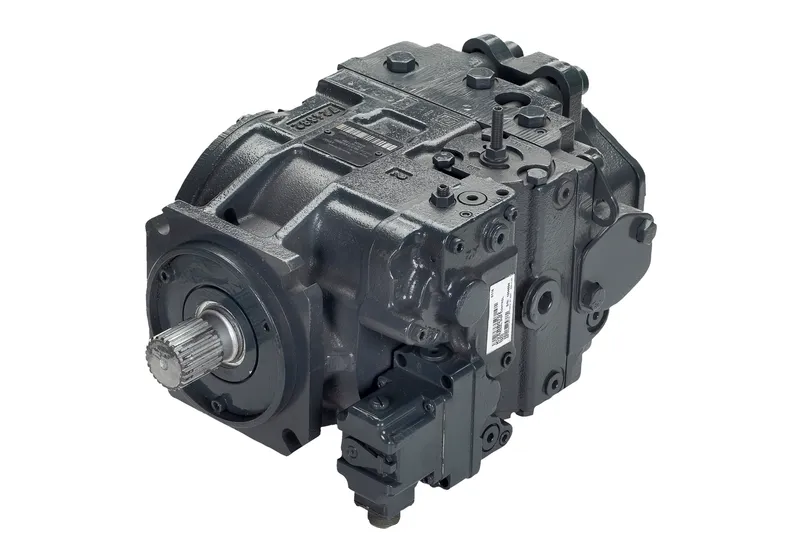

PUMP-VAR DISPL, CW

MPN: 9522763
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 9522763?

Danfoss PUMP-VAR DISPL, CW, manufacturer part number 9522763. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: DISPLACEMENT LIMITATION	No Limiters
G: END CAP PORTS	Twin Ports, no charge relief function, special ports at charge relief and filtration adapter locations
H: CHARGE PUMP	20 cc/rev
J: AUXILIARY MOUNTING PAD	SAE-C flat cover with 25 teeth coupling
K: CHARGE PRESSURE SETTING	external charge pressure reliev valve located in the side cover, 21 bar
K: CHARGE PRS RELIEF	external charge pressure reliev valve located in the side cover, 21 bar
L: SHAFT OPTIONS	21 teeth; 16/32 spline; special length
M: CONTROL	EDC, 2-pin deutsch connector, single coil 14-85mA
N: FILTRATION	none- filtration is external provided by customer
P: HIGH PRESSURE REGULATION	Port A & B: high pressure relief only, 420 to 520 bar settings
Proposition 65	Cancer and Reproductive Harm
Series 90 Displacement	75 Cubic Centimeters per Revolution
Series 90 Product Line	Series 90
Series 90 Rotation	Clockwise (Right hand) Rotation
T: CONTROL ORIFICES	EDC 1 & 3, EFPC (P) none (TA) none (TB) none (A) none (B) none
W: SPECIAL HARDWARE FEATURES	CP15+1,5° valve plate, external control supply, housing for speed sensor
X: DATA SHEET	orient external charge pressure relief valve 22°, mounted in side cover
Y: HIGH PRESSURE SETTING A	Port A = 370 Bar / 5370 PSI
Y: HIGH PRS SETTING PORT A	Port A = 370 Bar / 5370 PSI
Z: HIGH PRESSURE SETTING B	Port B = 370 Bar / 5370 PSI
Z: HIGH PRS SETTING PORT B	Port B = 370 Bar / 5370 PSI
