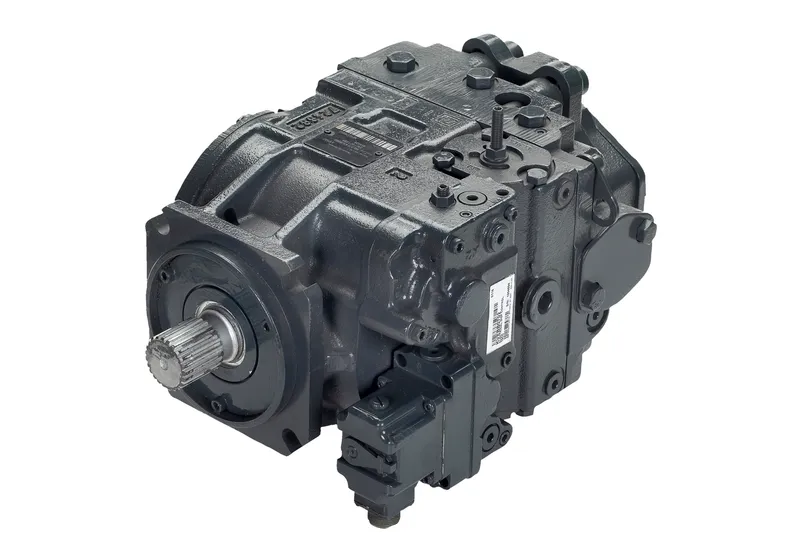

Danfoss 9522546

PUMP-VAR DISPL, CW

MPN: 9522546
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 9522546?

Danfoss PUMP-VAR DISPL, CW, manufacturer part number 9522546. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: DISPLACEMENT LIMITATION	No Limiters
G: END CAP PORTS	twin ports
H: CHARGE PUMP	17 cc/rev
J: AUXILIARY MOUNTING PAD	SAE-C with 14 T coupling, 4 bolt adapter,(2) ½-13 UNC tapped holes for support of pump
K: CHARGE PRESSURE SETTING	28 bar
K: CHARGE PRS RELIEF	28 bar
L: SHAFT OPTIONS	splined shaft , 14 teeth, pitch = 12 / 24
M: CONTROL	weather-pack connector,standard. porting, dual coil (14 - 85 mA)
N: FILTRATION	Suction
P: HIGH PRESSURE REGULATION	Port A & B: fast response PL, up to 450 bar settings
Proposition 65	Cancer and Reproductive Harm
Series 90 Displacement	75 Cubic Centimeters per Revolution
Series 90 Product Line	Series 90
Series 90 Rotation	Clockwise (Right hand) Rotation
T: CONTROL ORIFICES	MDC (P) 0,81 (TA) none* (TB) none* (A) none (B) none
W: SPECIAL HARDWARE FEATURES	CP15 +0.5 VALVE PLATE
Y: HIGH PRESSURE SETTING A	Port A = 450 Bar / 6530 PSI
Y: HIGH PRS SETTING PORT A	Port A = 450 Bar / 6530 PSI
Z: HIGH PRESSURE SETTING B	Port B = 450 Bar / 6530 PSI
Z: HIGH PRS SETTING PORT B	Port B = 450 Bar / 6530 PSI

9522546: frequently asked questions

When can 9522546 be shipped?

9522546 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 9522546 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 9522546 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9522546, subject to availability and destination.
