Home / Danfoss (Drives) / Industrial valves / Danfoss 927848

Danfoss 927848

Q: When can 927848 be shipped?

927848 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 927848 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 927848 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 927848, subject to availability and destination.

MPN: 927848
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 927848?

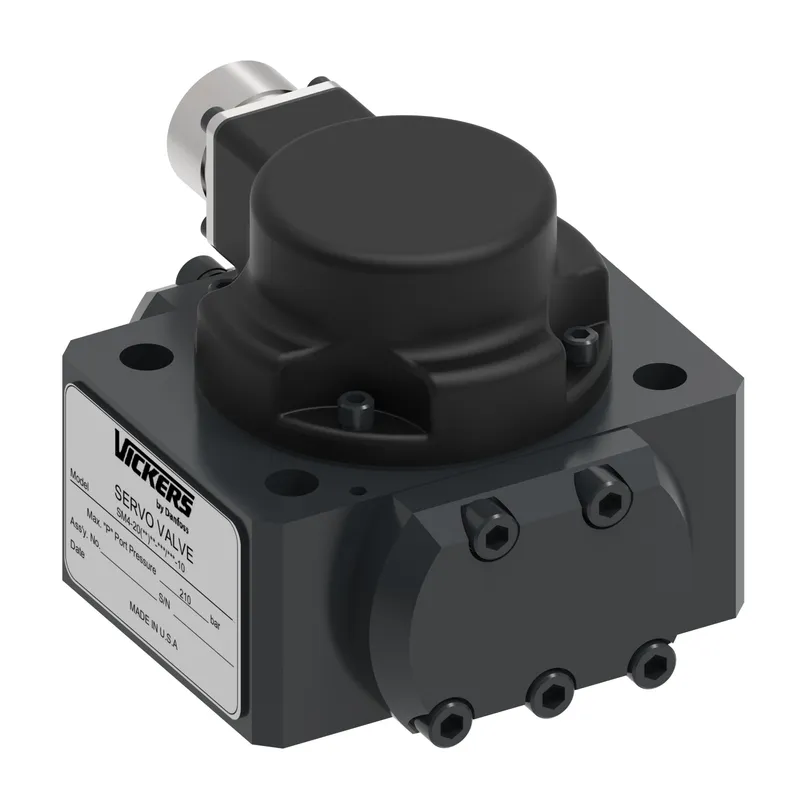

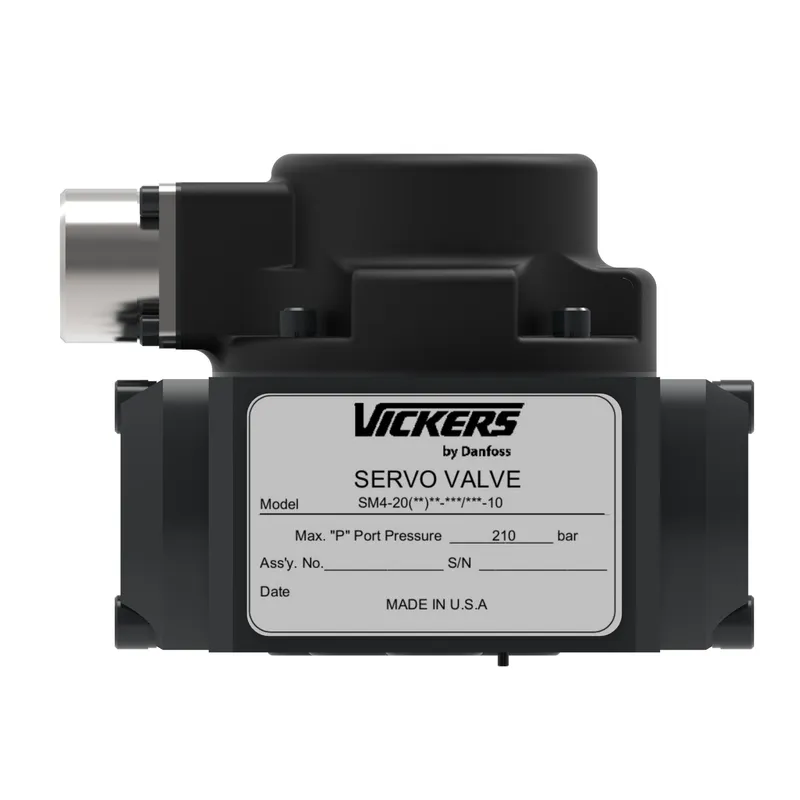

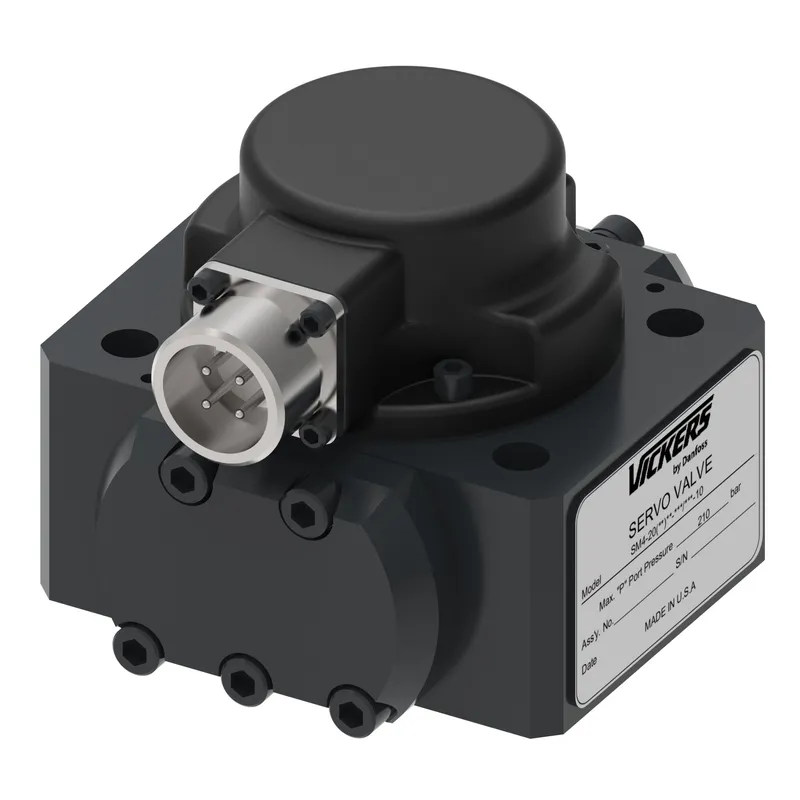

Danfoss SM4 20(10)38 80/40 50 S1 0, SM420(10)3880/4050S10, manufacturer part number 927848. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

100% step response	12 ms
Brand	Vickers by Danfoss
Burst pressure return	250 (% max supply pressure)
Coil rated current	40 mA
Coil resistance	80 Ohms
Design Series	50 Series
Flow rating GPM	10.00
Flow rating LPM	38.0
Frequency response @-3dB	90 Hz
Frequncy response @ 90°	100 Hz
Hysteresis around null	</= 3 (% of rated current)
Linearity error	<10 (% of rated current)
Maximum supply pressure BAR	350
Maximum supply pressure PSI	5000
Minimum supply pressure BAR	14
Minimum supply pressure PSI	200
Model Code 1	SM420(10)3880/4050S10
Port circle inch	0.875
Product height in	2.830
Product height mm	71.882
Product length in	3.910
Product length mm	99.314
Product width in	3.420
Product width mm	86.868
Proof pressure return	100 (% max supply pressure)
Proof pressure supply	150 (% max supply pressure)
Series	SM4
Special feature	5th port activated
Symmetry error	<10 (% of rated current)
Threshold	</= 0.5 (% of rated current)
Valve size	Size 20
Working temp max C	135
Working temp max F	275
