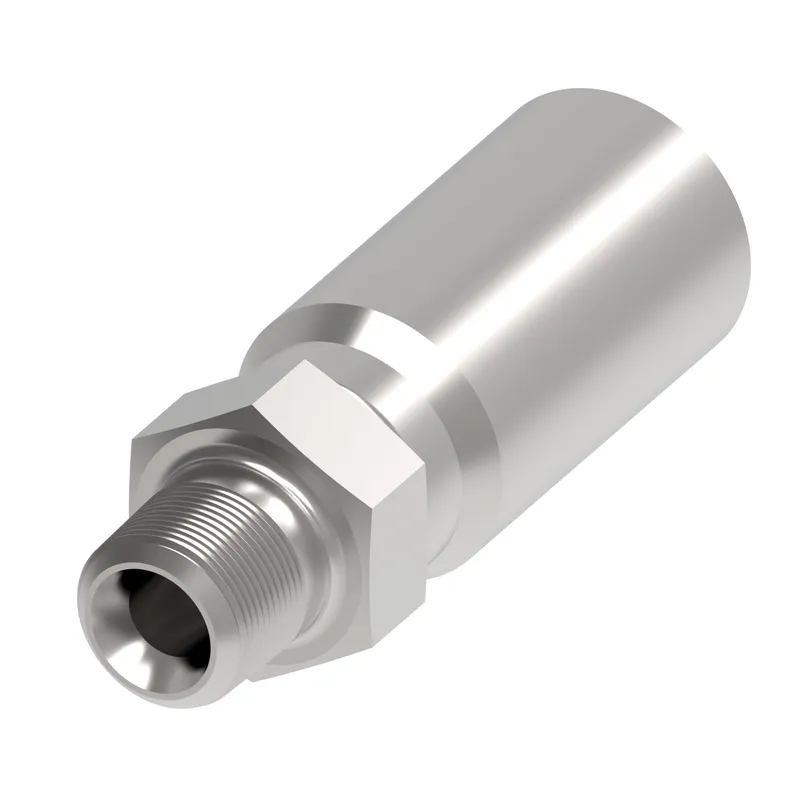

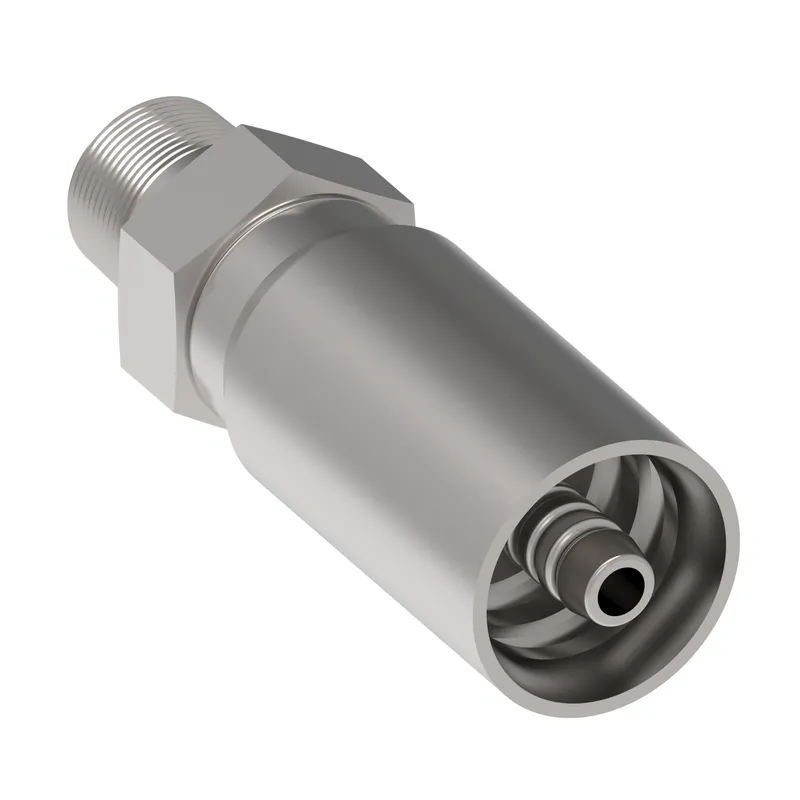

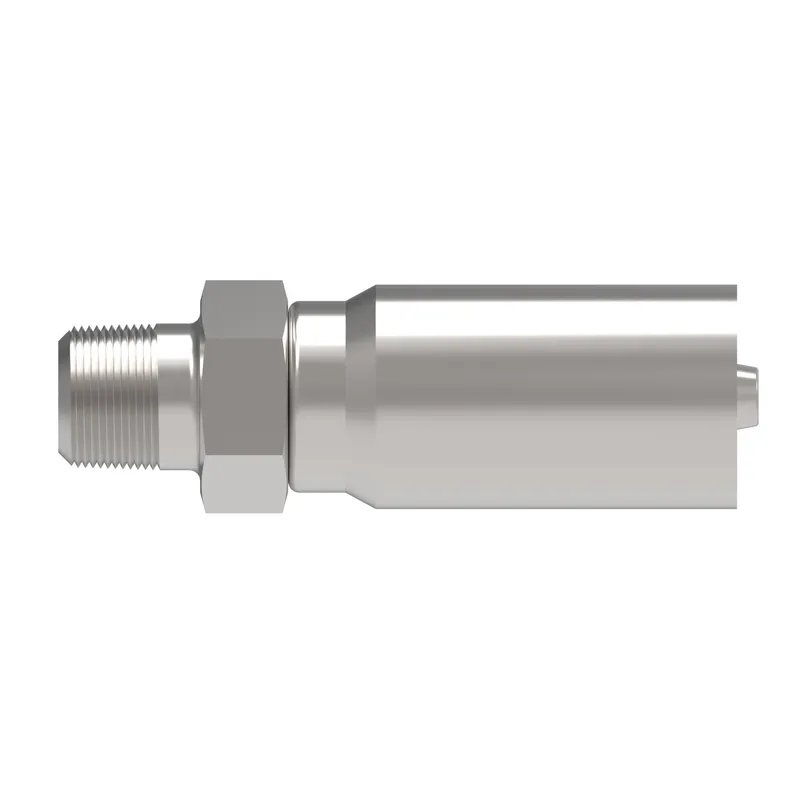

Danfoss 90V04-041000

HOSE FTG, SV/04, NPTF-M/04, CS, STR

MPN: 90V04-041000
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90V04-041000?

Danfoss HOSE FTG, SV/04, NPTF-M/04, CS, STR, manufacturer part number 90V04-041000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.310
A dimension MM	31.200
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
End size 1	-4
End type 1	Male pipe (NPTF)
Finish plating	Zinc plating
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hose cut off factor IN	1.230
Hose cut off factor MM	31.200
Hose size	-4
Inside diameter IN	0.140
Inside diameter MM	3.600
Product height in	0.810
Product height mm	20.574
Product length in	2.310
Product length mm	58.674
Product material	Carbon steel
Product width in	0.810
Product width mm	20.574 mm
Thread sealant	Yes
Thread size 1	1/4-18 NPTF
Working pressure max BAR	655
Working pressure max PSI	9100
Working temperature max C	66
Working temperature max F	150
Working temperature min C	40
Working temperature min F	40
