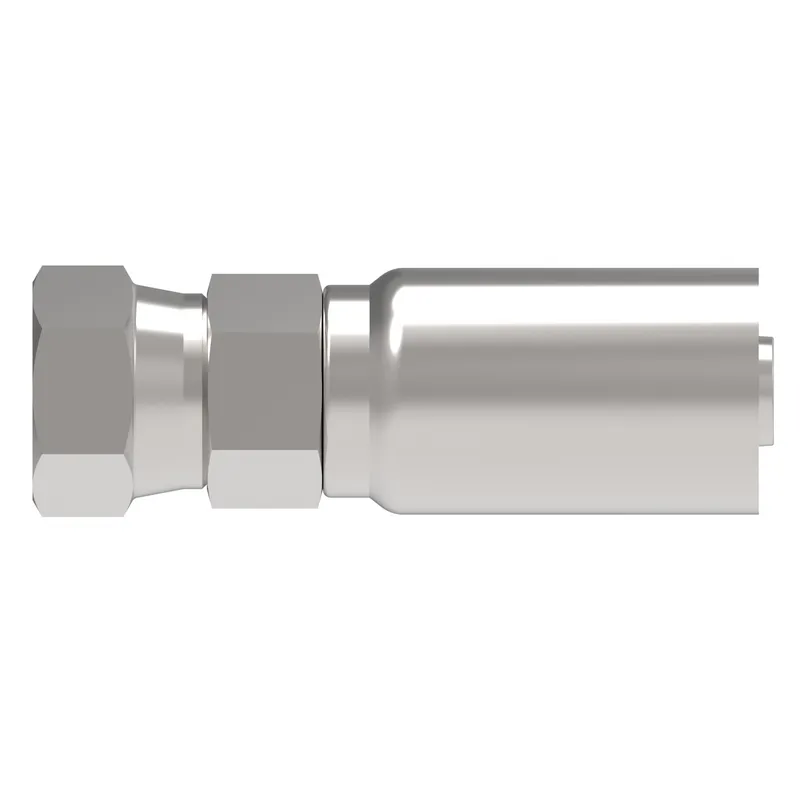

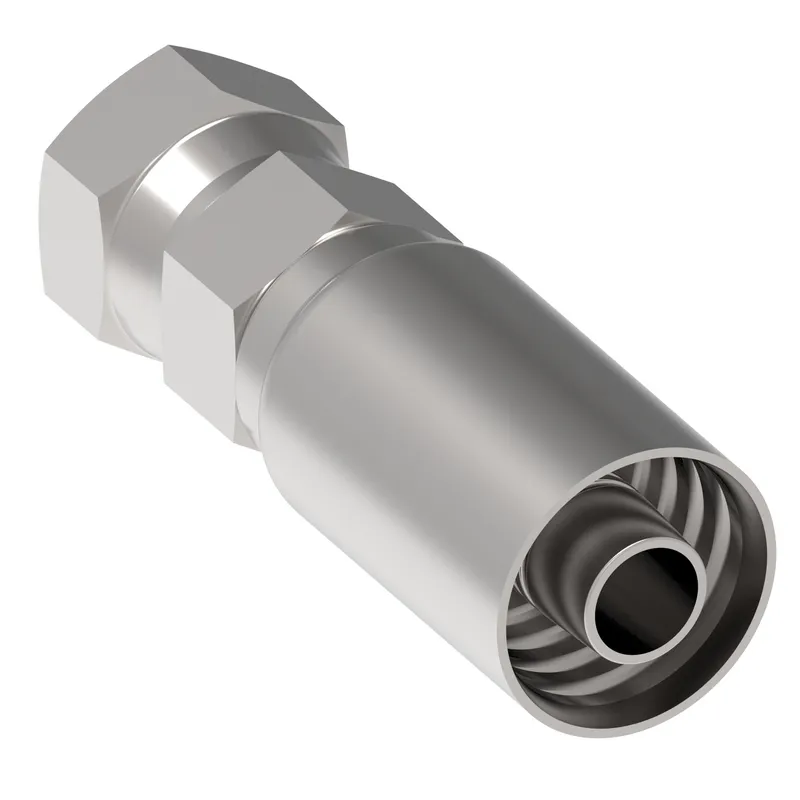

Danfoss 90L08-085400-0

HOSE FTG, 4T/08, JIC-F/08, AP, STR

MPN: 90L08-085400-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90L08-085400-0?

Danfoss HOSE FTG, 4T/08, JIC-F/08, AP, STR, manufacturer part number 90L08-085400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789352583
A dimension IN	3.150
A dimension MM	80.000
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	3440 (Size dependent), 34BA (Size dependent), 34PW (Size dependent), 3630 (Size dependent), 3E80 (Size dependent), 3R80 (Size dependent)
Compatible tube OD IN	0.50
Compatible tube OD MM	12.700
Construction Style	Crimp
End size 1	-8
End type 1	Female 37 degree swivel
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hex size 2 IN	0.944
Hex size 2 MM	24.000
Hose cut off factor IN	1.630
Hose cut off factor MM	41.400
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	9.900
Product height in	0.940
Product height mm	23.876
Product length in	3.150
Product length mm	80.010
Product material	316L Stainless steel
Product width in	0.940
Product width mm	23.876 mm
Thread sealant	No
Thread size 1	3/4-16 UNF
Tube OD 1 IN	0.500
Tube OD 1 MM	12.700
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

90L08-085400-0: frequently asked questions

When can 90L08-085400-0 be shipped?

90L08-085400-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90L08-085400-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90L08-085400-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90L08-085400-0, subject to availability and destination.
