Danfoss 90H08-105400

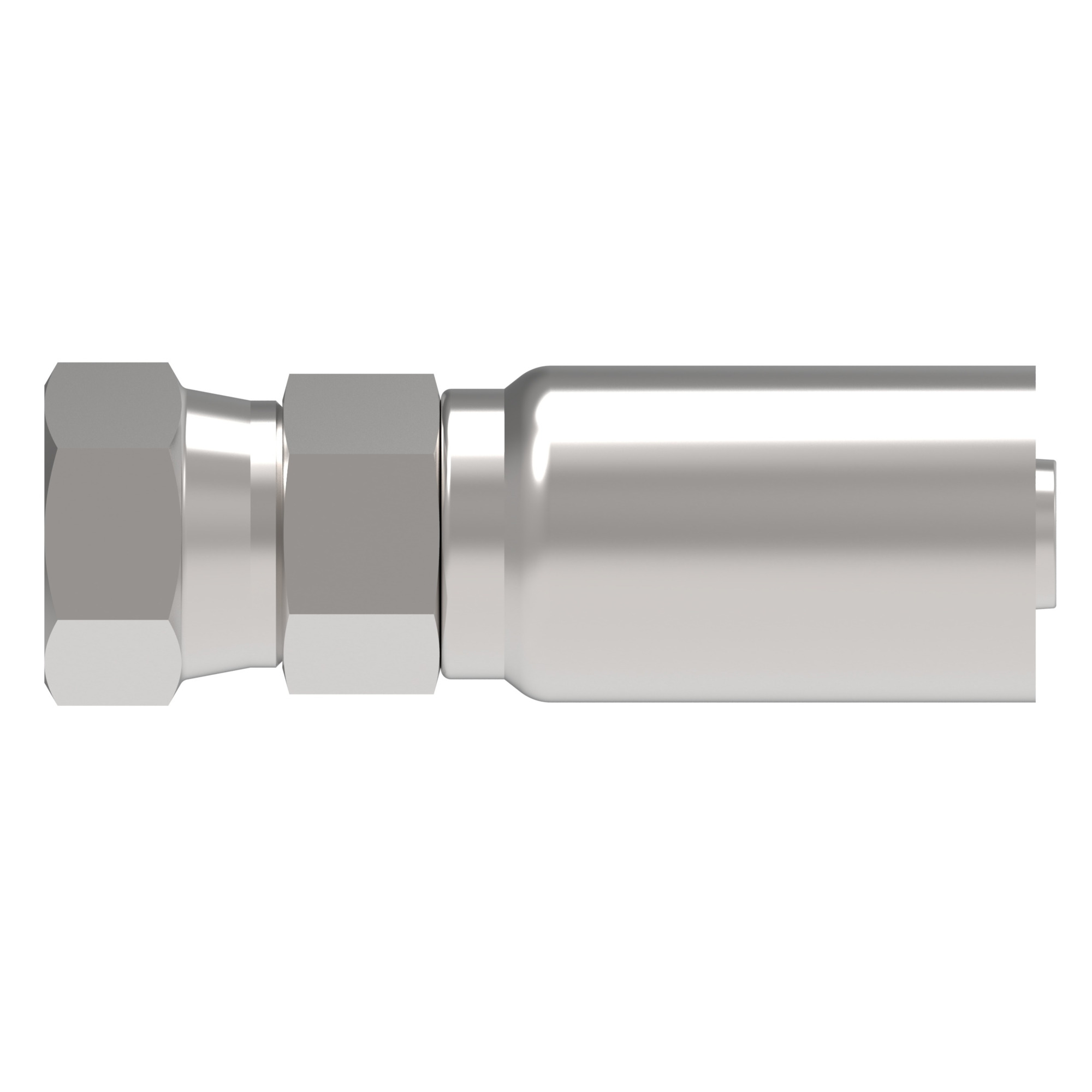

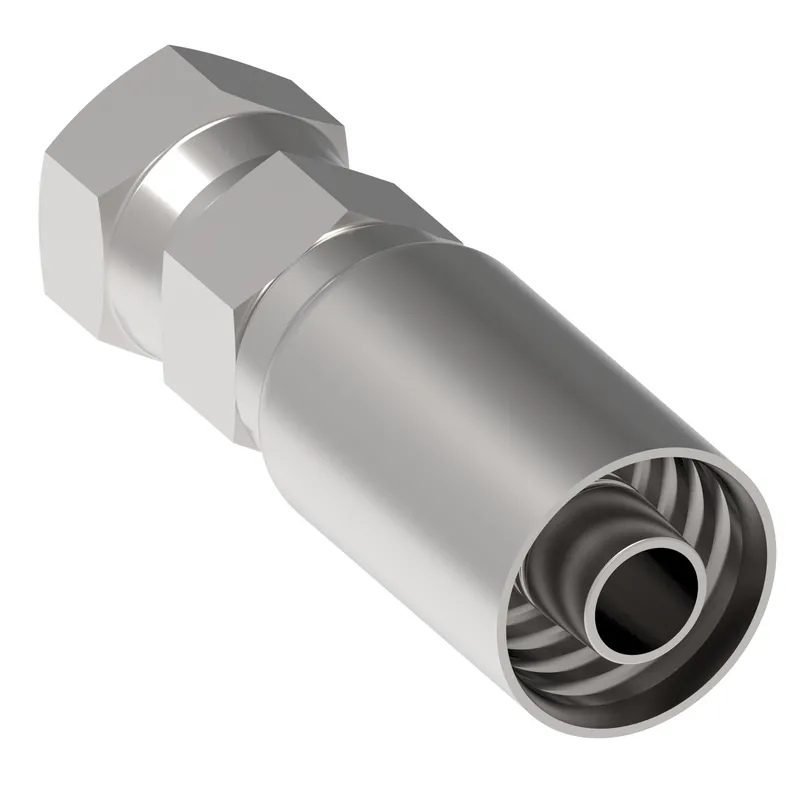

HOSE FTG, SS/08, JIC-F/08, CS, STR

MPN: 90H08-105400
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90H08-105400?

Danfoss HOSE FTG, SS/08, JIC-F/08, CS, STR, manufacturer part number 90H08-105400. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.151
A dimension MM	80.000
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-8
End type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	27.0
Hex size 2 IN	0.866
Hex size 2 MM	22.0
Hose cut off factor IN	1.656
Hose cut off factor MM	42.062
Hose size	-8
Inside diameter IN	0.391
Inside diameter MM	9.930
Product height in	0.880
Product height mm	22.352
Product length in	3.150
Product length mm	80.010
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352 mm
Thread sealant	No
Thread size 1	7/8-14 UNF
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
