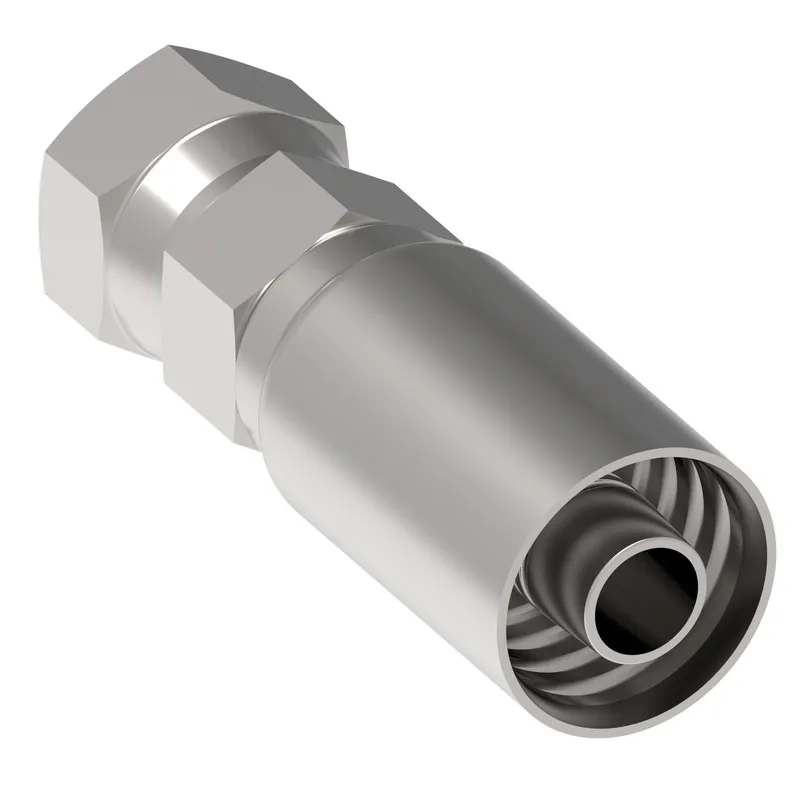

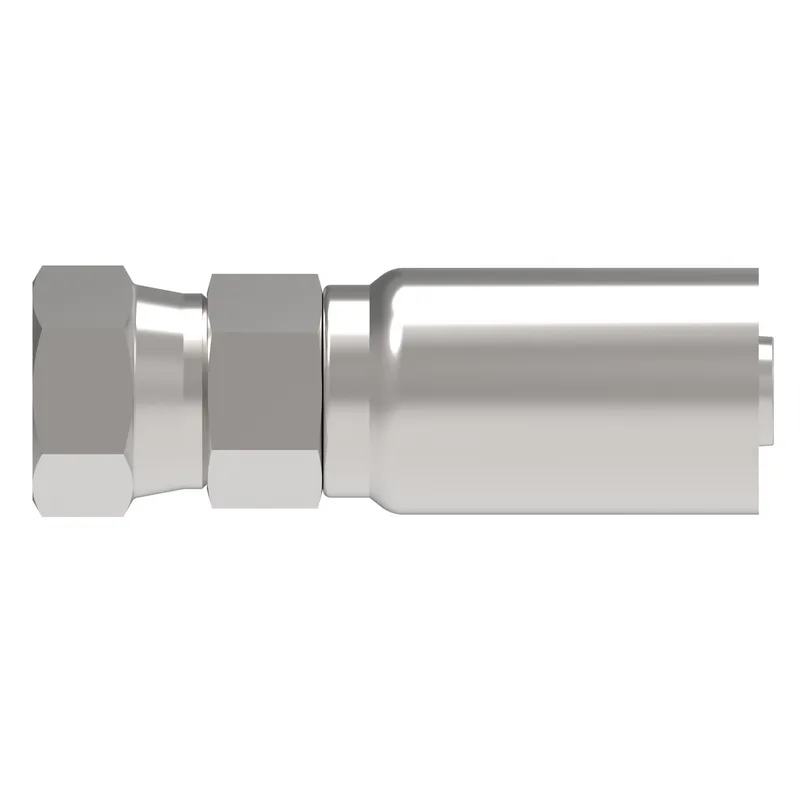

Danfoss 90H06-085400-0

FTG-Steel- F-JIC - STRT WAS 390H-06548

MPN: 90H06-085400-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90H06-085400-0?

Danfoss FTG-Steel- F-JIC - STRT WAS 390H-06548, manufacturer part number 90H06-085400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789326126
Angle shape	Straight
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	3440 (Size dependent), 3630 (Size dependent), 3E80 (Size dependent), 3R80 (Size dependent)
Construction Style	Swage
End size 1	-12
End type 1	Female 37 degree swivel
Hex size 1 IN	0.750
Hex size 1 MM	19.1
Hex size 2 IN	0.940
Hex size 2 MM	23.9
Hose cut off factor IN	1.560
Hose cut off factor MM	39.624
Hose size	-8
Inside diameter IN	0.280
Inside diameter MM	7.112
Product height in	0.940
Product height mm	23.876
Product length in	2.810
Product length mm	71.374
Product material	Carbon steel
Product width in	0.940
Product width mm	23.876 mm
Thread sealant	No
Working pressure max BAR	276
Working pressure max PSI	4000

90H06-085400-0: frequently asked questions

When can 90H06-085400-0 be shipped?

90H06-085400-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90H06-085400-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90H06-085400-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90H06-085400-0, subject to availability and destination.
