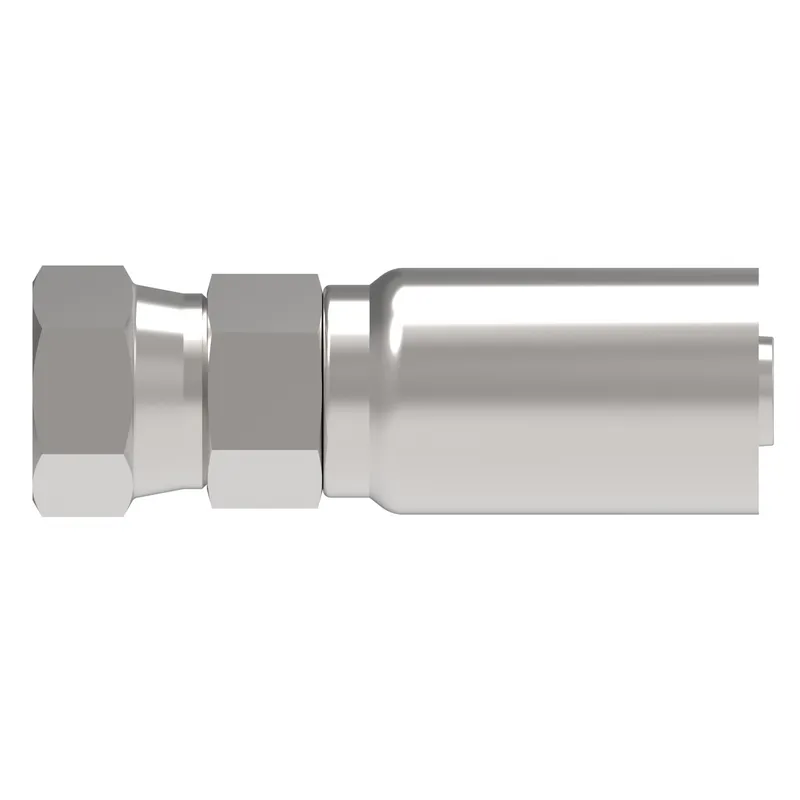

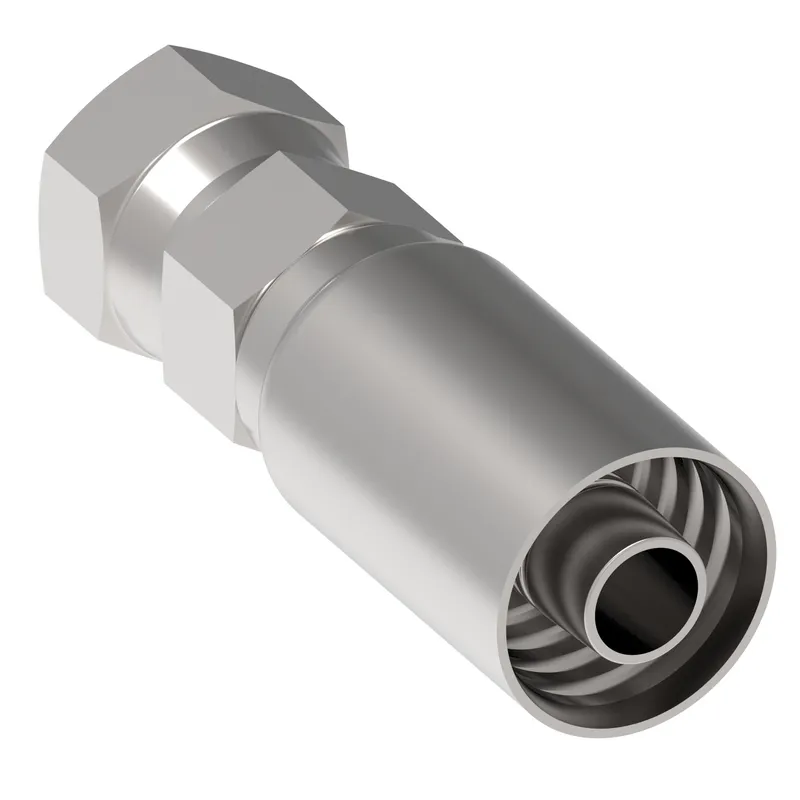

Danfoss 90A12-125500-0

HOSE FTG, 4T/12, JIC-F/12, AP, STR

MPN: 90A12-125500-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90A12-125500-0?

Danfoss HOSE FTG, 4T/12, JIC-F/12, AP, STR, manufacturer part number 90A12-125500-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146087331
A dimension IN	3.430
A dimension MM	87.100
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Construction Style	Crimp
End size 1	-12
End type 1	Female 37 degree swivel
Hex size 1 IN	1.141
Hex size 1 MM	29.000
Hex size 2 IN	1.220
Hex size 2 MM	31.000
Hose cut off factor IN	1.740
Hose cut off factor MM	44.200
Hose size	-12
Inside diameter IN	0.560
Inside diameter MM	14.200
Product height in	1.250
Product height mm	31.750
Product length in	3.430
Product length mm	87.122
Product material	316 Stainless steel
Product width in	1.250
Product width mm	31.750 mm
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

90A12-125500-0: frequently asked questions

When can 90A12-125500-0 be shipped?

90A12-125500-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90A12-125500-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90A12-125500-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90A12-125500-0, subject to availability and destination.
