Danfoss 90A08-085400-0

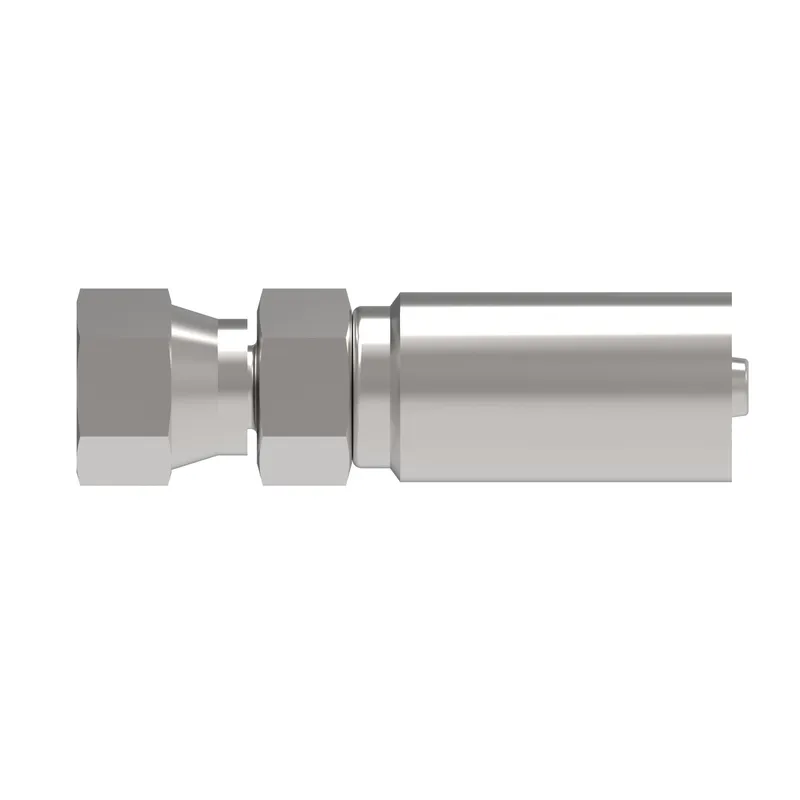

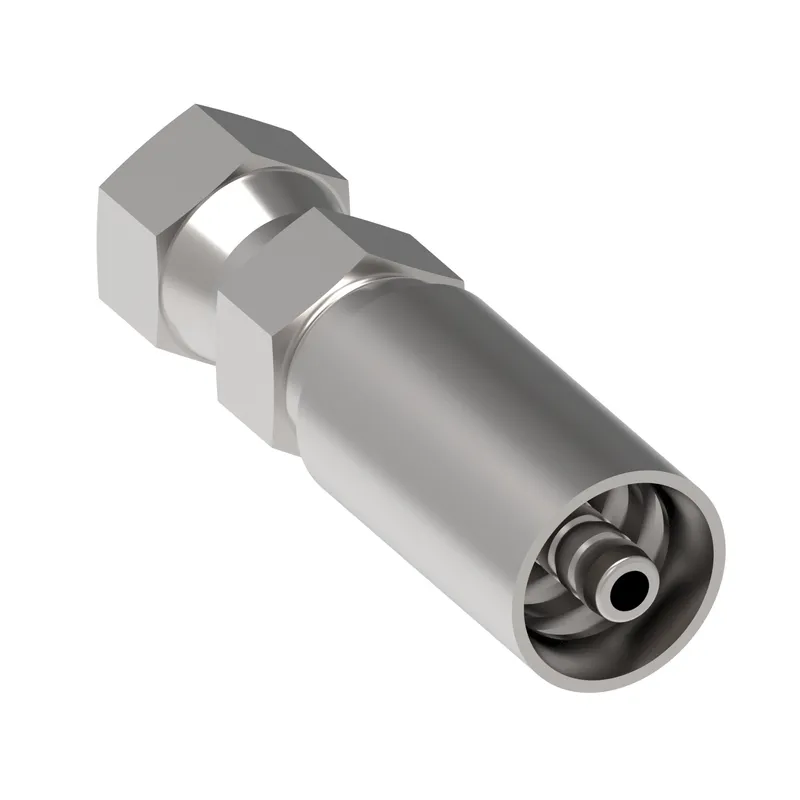

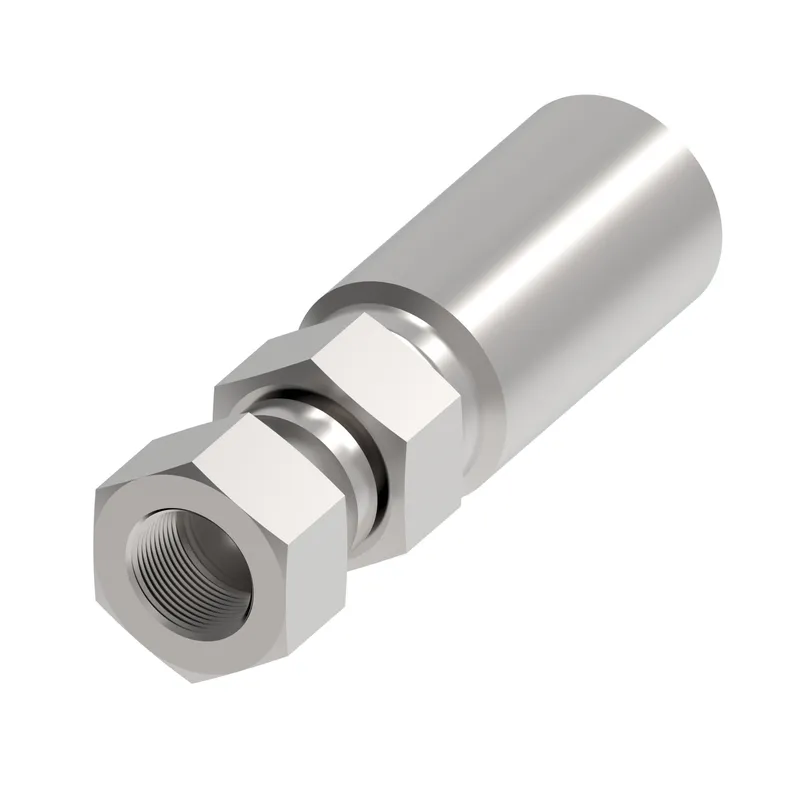

HOSE FTG, 4T/08, JIC-F/08, AP, STR

MPN: 90A08-085400-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90A08-085400-0?

Danfoss HOSE FTG, 4T/08, JIC-F/08, AP, STR, manufacturer part number 90A08-085400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789352514
A dimension IN	3.510
A dimension MM	80.040
Angle shape	Straight
Compatible hose ID IN	0.500
Construction Style	Crimp
End size 1	-8
End type 1	Female 37 degree swivel
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hex size 2 IN	0.944
Hex size 2 MM	24.000
Hose cut off factor IN	1.650
Hose cut off factor MM	42.060
Inside diameter IN	0.390
Inside diameter MM	9.930
Product height in	0.940
Product height mm	23.876
Product length in	3.150
Product length mm	80.010
Product material	316 Stainless steel
Product width in	0.940
Product width mm	23.876 mm
Thread sealant	No
Thread size 1	3/4-16 UNF
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
