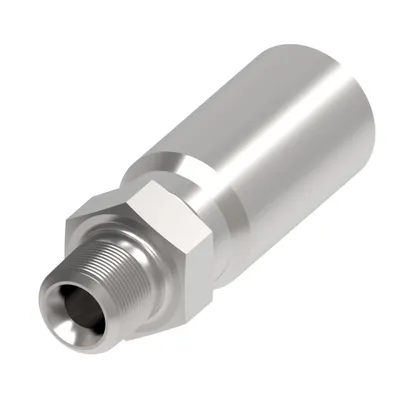

Danfoss 90A04-06N000-0

HOSE FTG, 4T/06, STPIPE/04, AP, STR

MPN: 90A04-06N000-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90A04-06N000-0?

Danfoss HOSE FTG, 4T/06, STPIPE/04, AP, STR, manufacturer part number 90A04-06N000-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.560
A dimension MM	65.100
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	6.350
Construction Style	Crimp
End size 1	-4
End type 1	Standpipe Metric
Hex size 1 IN	0.708
Hex size 1 MM	18.000
Hose cut off factor IN	1.480
Hose cut off factor MM	37.700
Hose size	-4
Inside diameter IN	0.1600
Inside diameter MM	4.0000
Product height in	0.687
Product height mm	17.449
Product length in	2.560
Product length mm	65.100
Product material	316 Stainless steel
Product width in	0.687
Product width mm	17.449 mm
Thread sealant	No
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	40
Working temperature min F	40
