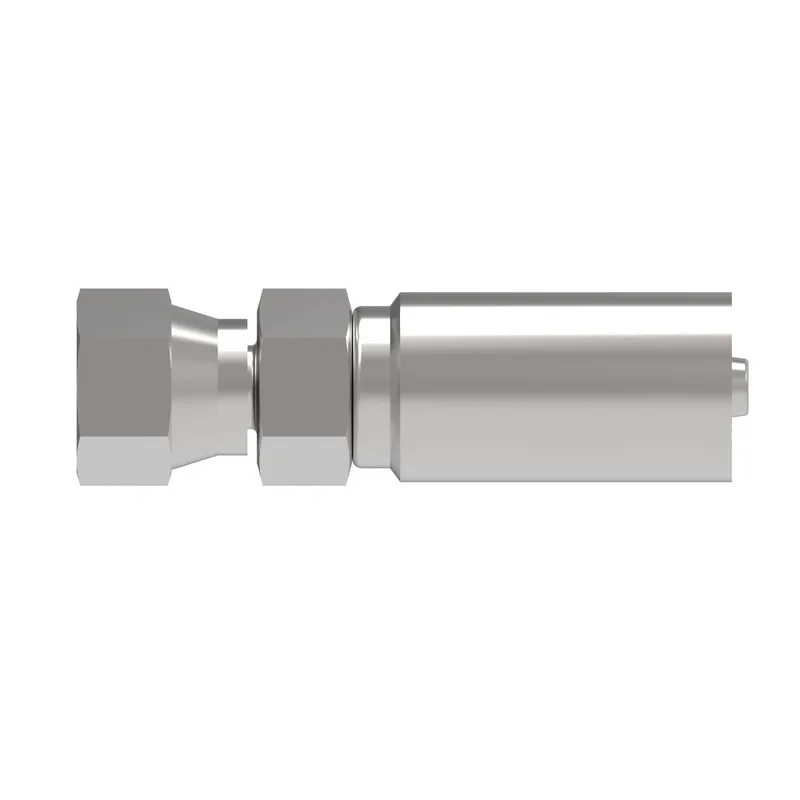

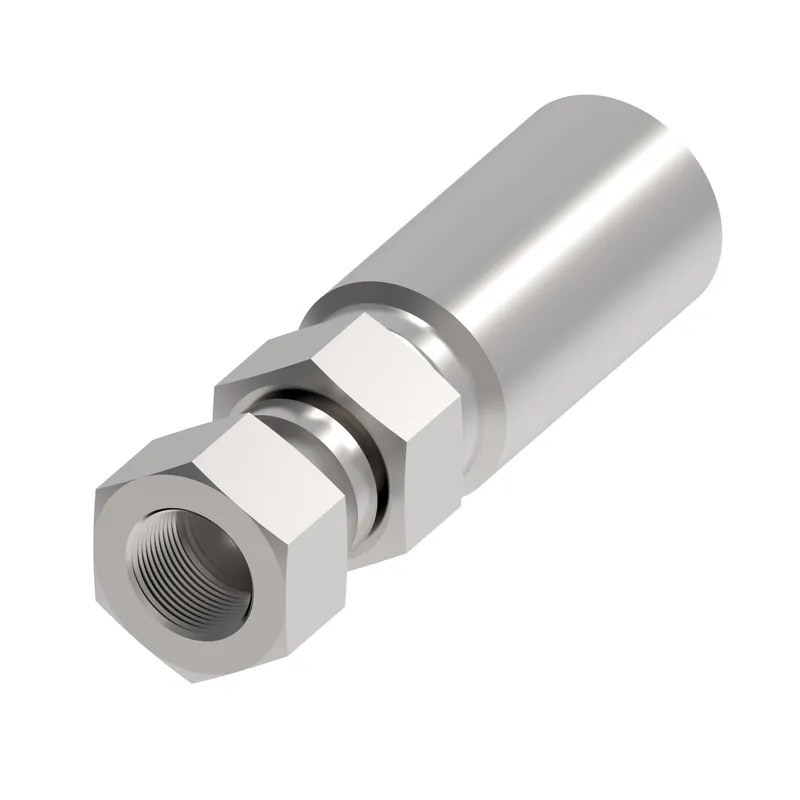

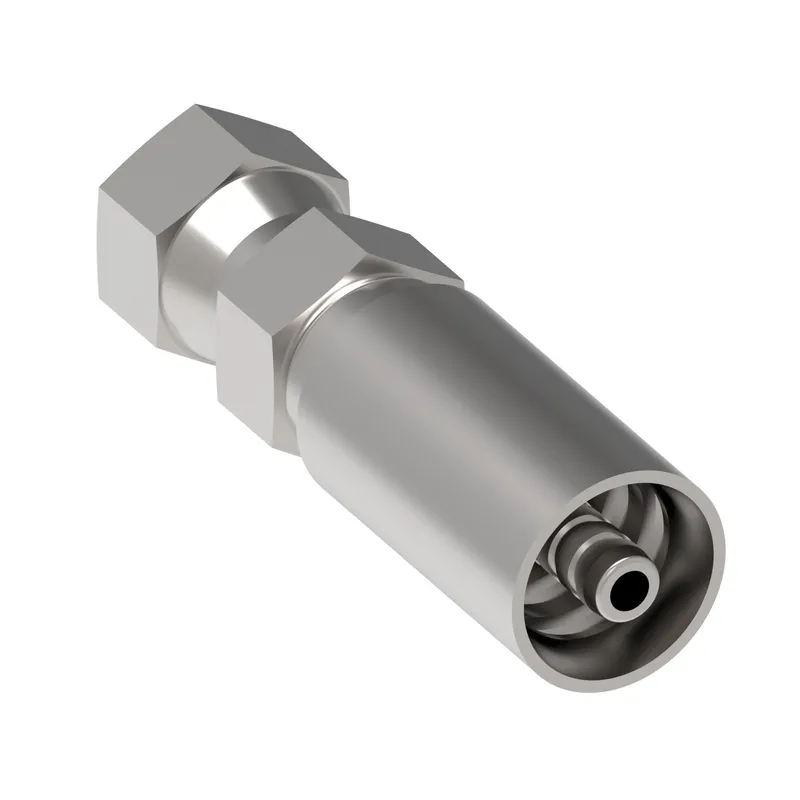

Danfoss 90A03-04B000-0

HOSE FTG, 4T/04, BF/04, AP, STR

MPN: 90A03-04B000-0
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90A03-04B000-0?

Danfoss HOSE FTG, 4T/04, BF/04, AP, STR, manufacturer part number 90A03-04B000-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.040
A dimension MM	51.900
Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
End size 1	-4
End type 1	Female BSPP swivel
Hex size 1 IN	0.563
Hex size 1 MM	14.000
Hex size 2 IN	0.748
Hex size 2 MM	19.000
Hose cut off factor IN	1.180
Hose cut off factor MM	30.000
Hose size	-4
Inside diameter IN	0.110
Inside diameter MM	2.800
Product height in	0.748
Product height mm	19.000
Product length in	3.210
Product length mm	56.100
Product width in	0.748
Product width mm	19.000 mm
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	G 1/4
Working pressure max BAR	450
Working pressure max PSI	6550
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

90A03-04B000-0: frequently asked questions

When can 90A03-04B000-0 be shipped?

90A03-04B000-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90A03-04B000-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90A03-04B000-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90A03-04B000-0, subject to availability and destination.
