Danfoss 90306-064000-0

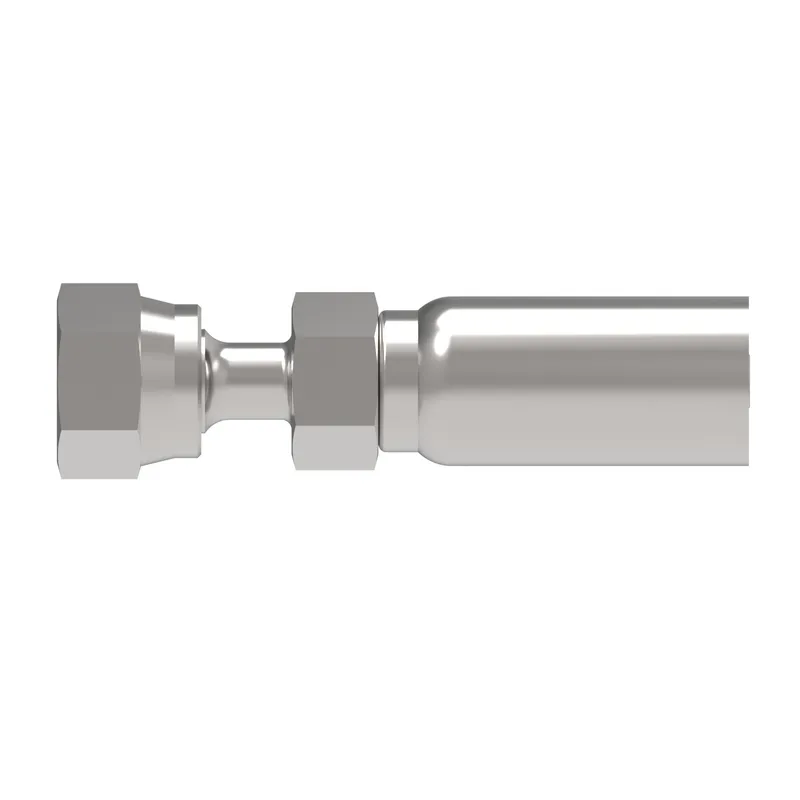

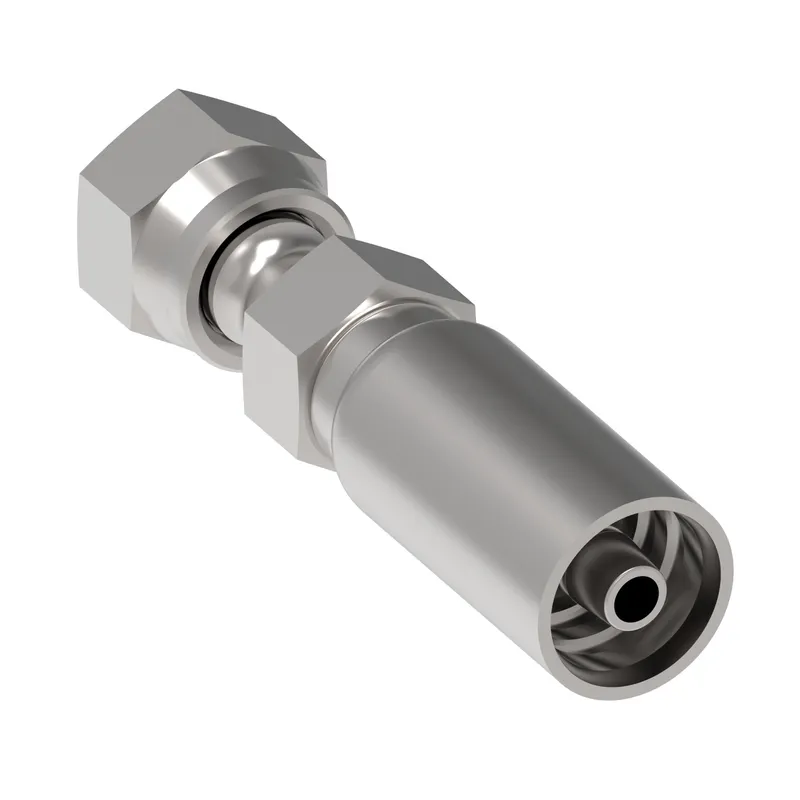

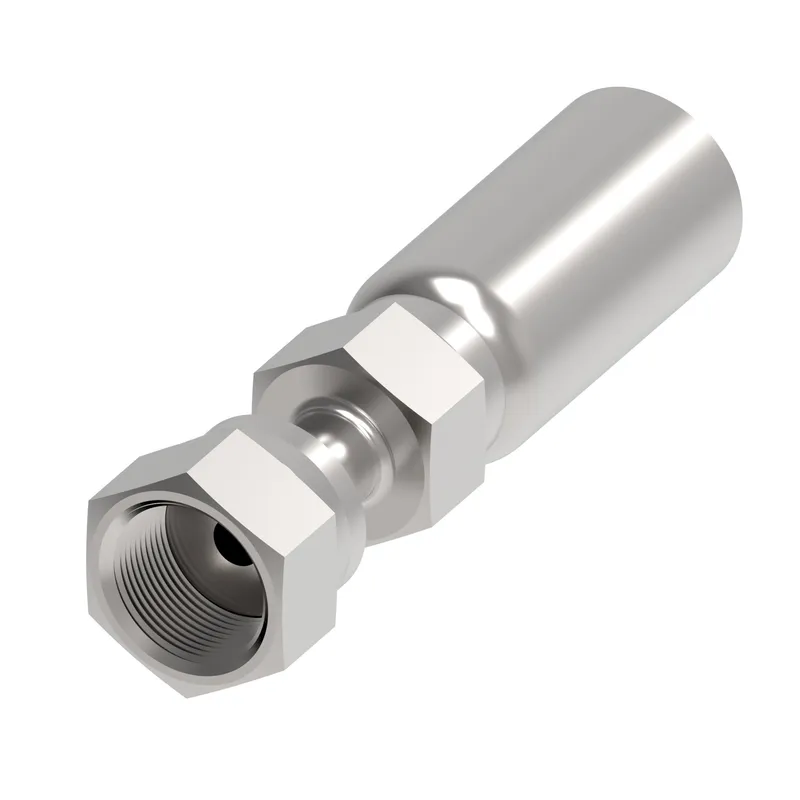

HOSE FTG, 4T/06, NPTF-M/06, CS, STR

MPN
90306-064000-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90306-064000-0?

Danfoss HOSE FTG, 4T/06, NPTF-M/06, CS, STR, manufacturer part number 90306-064000-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.680
A dimension MM68.000
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.652
Compatible hoses37AL, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Compatible tube OD IN0.38
Compatible tube OD MM9.652
Construction StyleCrimp
End type 1Female 37/45 universal swivel
Finish platingZinc plating
Hex size 1 IN0.750
Hex size 1 MM19.0
Hex size 2 IN0.875
Hex size 2 MM22.0
Hose cut off factor IN1.430
Hose cut off factor MM36.200
Hose size-6
Inside diameter IN0.260
Inside diameter MM6.700
Product height in0.880
Product height mm22.352
Product length in2.690
Product length mm68.326
Product materialCarbon steel
Product width in0.880
Product width mm22.352 mm
Thread sealantNo
Thread size 111/16-16 UN
Tube OD 1 IN0.380
Tube OD 1 MM9.652
Working pressure max BAR86
Working pressure max PSI1250
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90306-064000-0: frequently asked questions

When can 90306-064000-0 be shipped?

90306-064000-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90306-064000-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90306-064000-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90306-064000-0, subject to availability and destination.
