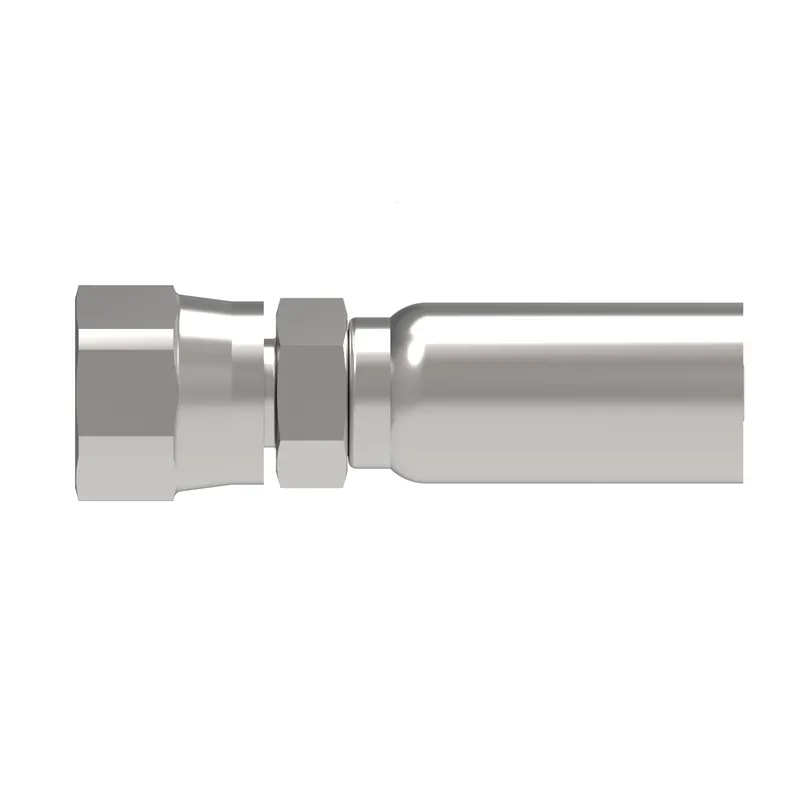

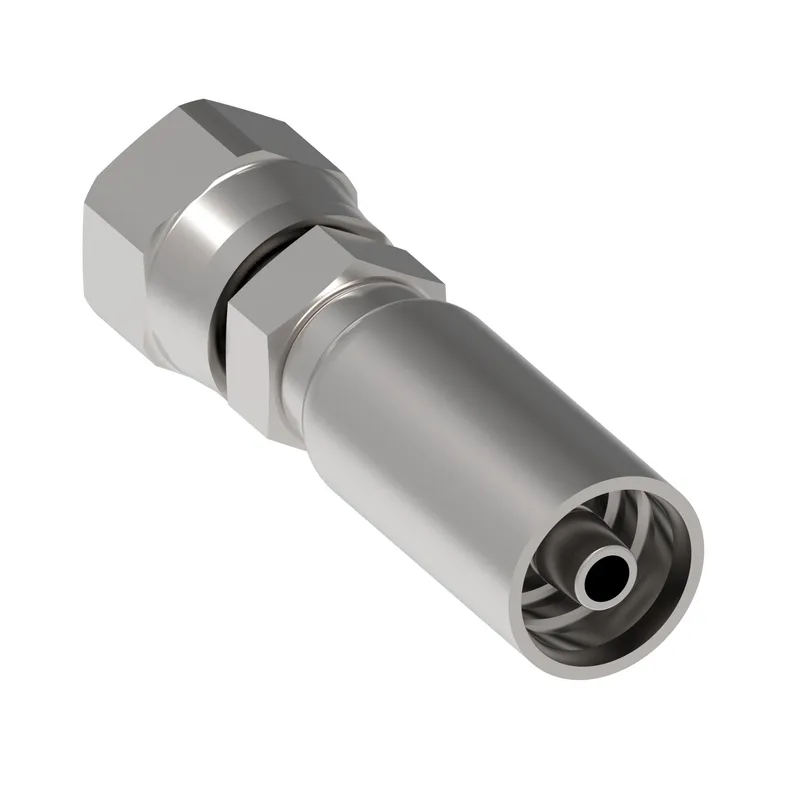

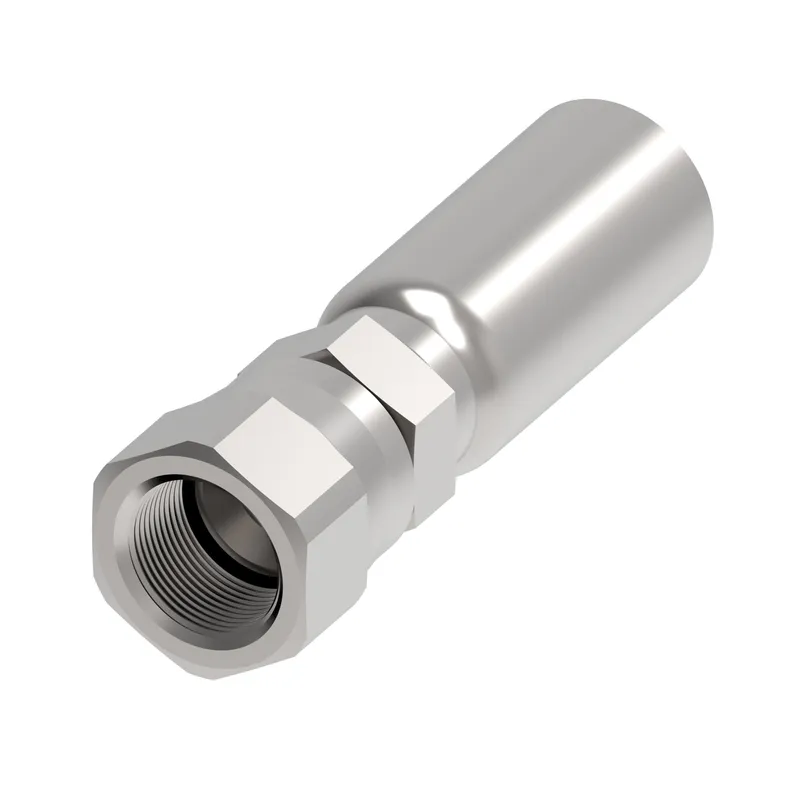

Danfoss 90304-045400-0

HOSE NIPPLE ASSY,4T/04,JIC-M/04,CS,STR

MPN
90304-045400-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90304-045400-0?

Danfoss HOSE NIPPLE ASSY,4T/04,JIC-M/04,CS,STR, manufacturer part number 90304-045400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789304629
A dimension IN2.540
A dimension MM64.400
Angle shapeStraight
BrandSynflex by Danfoss
Construction StyleCrimp
End type 1Female 37/45 universal swivel
Finish platingZinc plating
Hex size 1 IN0.625
Hex size 1 MM15.000
Hex size 2 IN0.625
Hex size 2 MM15.000
Hose cut off factor IN1.460
Hose cut off factor MM37.000
Inside diameter IN0.1600
Inside diameter MM4.0000
Product height in0.630
Product height mm16.002
Product length in2.530
Product length mm64.262
Product materialCarbon steel
Product width in0.630
Product width mm16.002 mm
Thread sealantNo
Thread size 17/16-20 UNF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90304-045400-0: frequently asked questions

When can 90304-045400-0 be shipped?

90304-045400-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90304-045400-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90304-045400-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90304-045400-0, subject to availability and destination.
