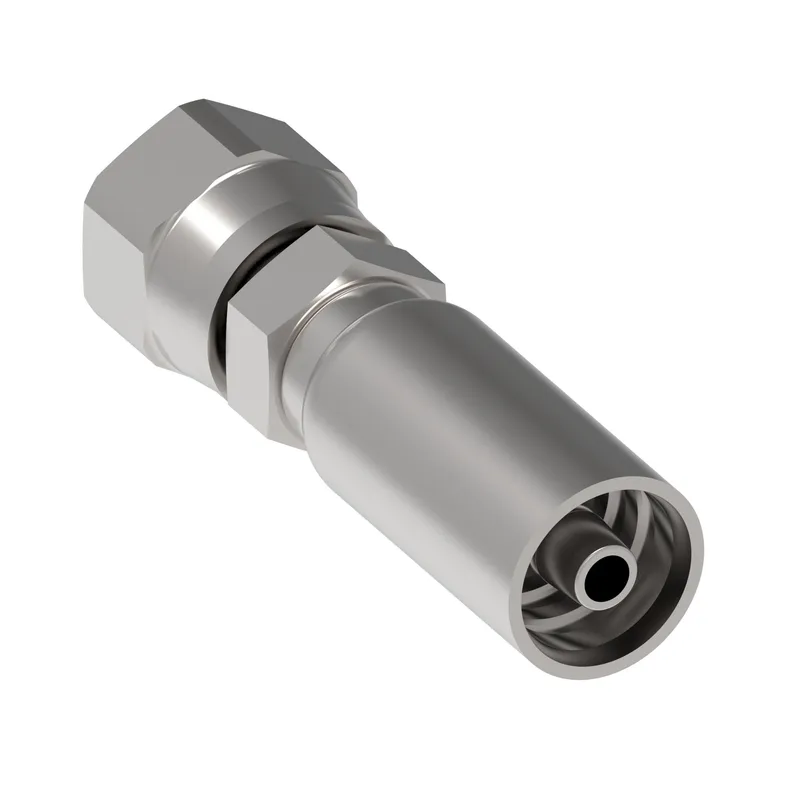

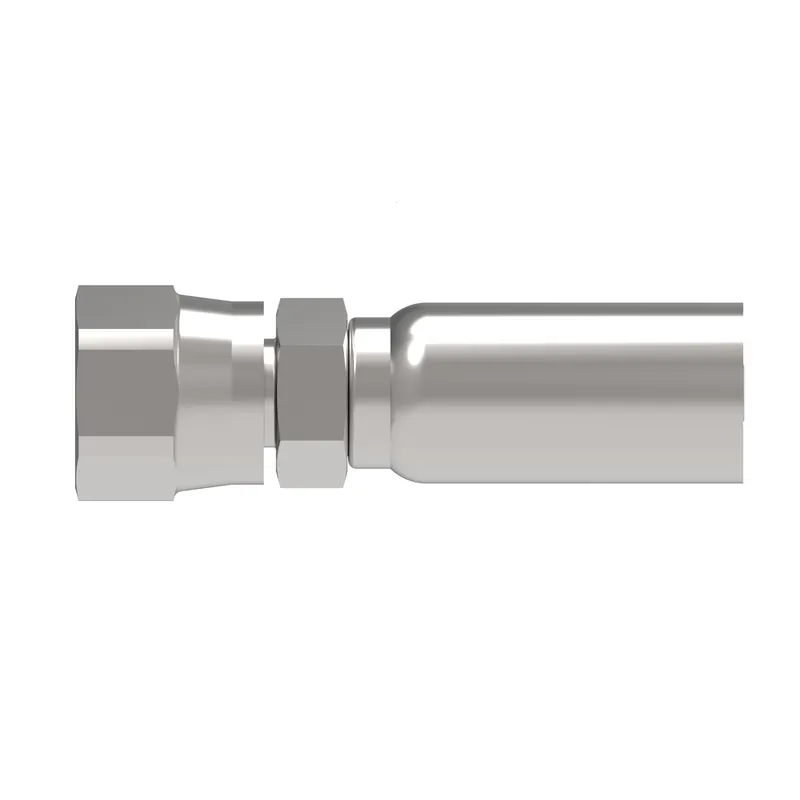

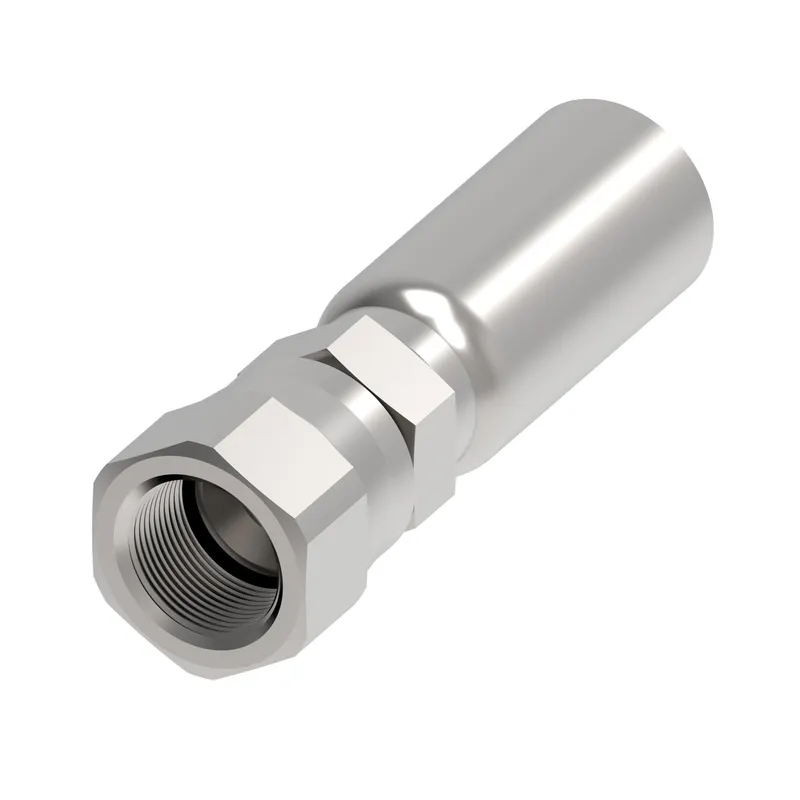

HOSE NIPPLE ASSY, 4T/03, SP/04, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 90303-042400-0 be shipped?
90303-042400-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 90303-042400-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 90303-042400-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90303-042400-0, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY, 4T/03, SP/04, CS, STR, manufacturer part number 90303-042400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146087034 |
| A dimension IN | 2.134 |
| A dimension MM | 54.203 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.350 |
| Compatible hoses | 37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30 |
| Construction Style | Crimp |
| End size 1 | -4 |
| End type 1 | Female pipe swivel (NPSM) |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.625 |
| Hex size 1 MM | 15.000 |
| Hex size 2 IN | 0.750 |
| Hex size 2 MM | 19.000 |
| Hose cut off factor IN | 1.334 |
| Hose cut off factor MM | 33.883 |
| Hose size | -4 |
| Inside diameter IN | 0.109 |
| Inside diameter MM | 2.768 |
| Product height in | 0.630 |
| Product height mm | 16.002 |
| Product length in | 2.130 |
| Product length mm | 54.102 |
| Product material | Carbon steel |
| Product width in | 0.630 |
| Product width mm | 16.002 mm |
| Thread sealant | No |
| Thread size 1 | 1/4-18 NPSM |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
More Danfoss (Drives) parts
Available on requestFtng (perm), thermo 90 DEG. JIC FEMALE
Available on requestFTG-Steel- M-PIPE- STRT WAS 3903-03102 N

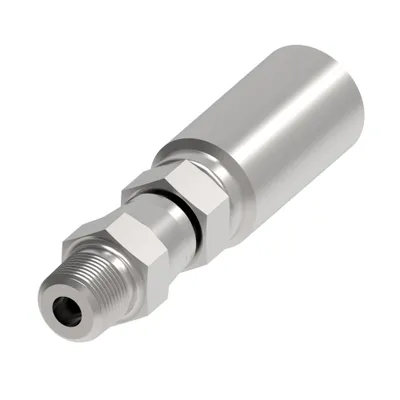

Available on requestHOSE NIPPLE ASSY,4T/03,NPTF-M/04,CS,STR
Available on requestHOSE NIPPLE ASSY,4T/03,NPTF-M/04,CS,STR
Available on requestConector macho de acero permanente
Available on requestHOSE FTG, 4T/03, US/04, CS, STR
Available on requestHOSE FTG, 4T/03, NPTF-M/04, CS, STR

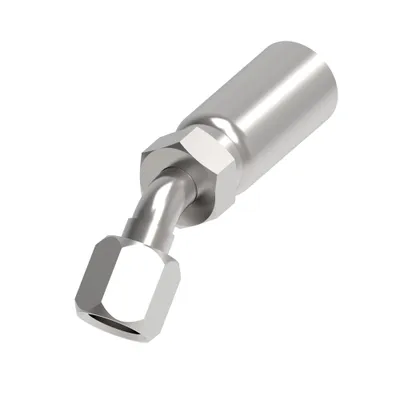

Available on requestFTG-STEEL- F-JIC - 45BT 20 PCS - WAS 390
