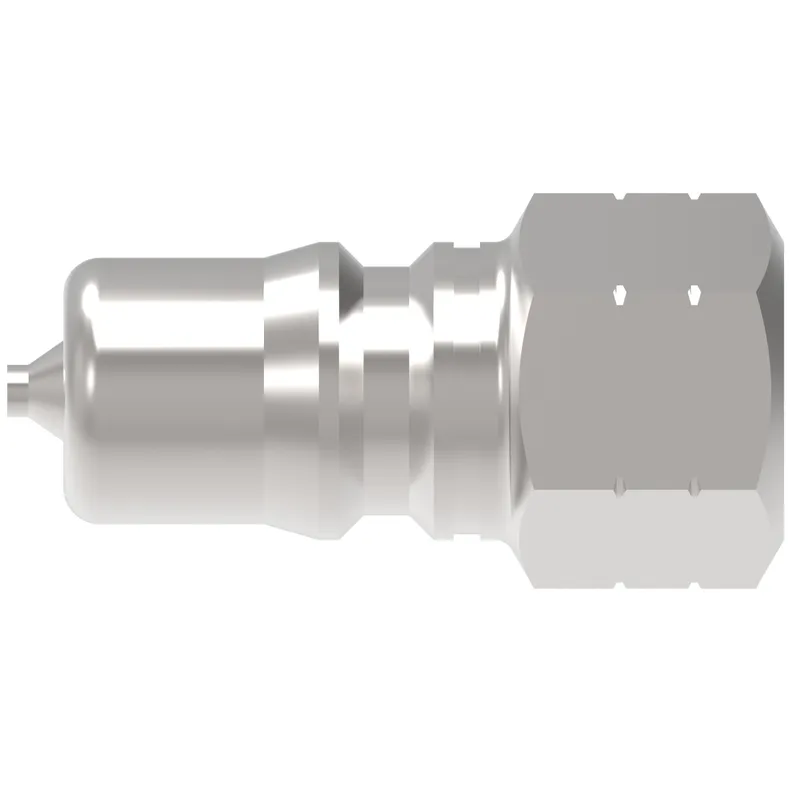

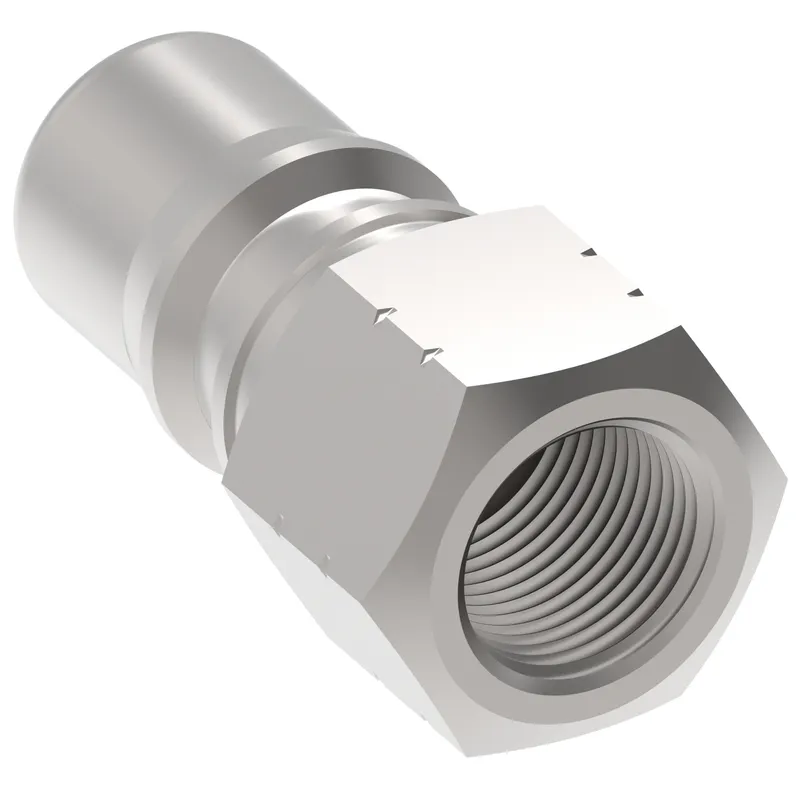

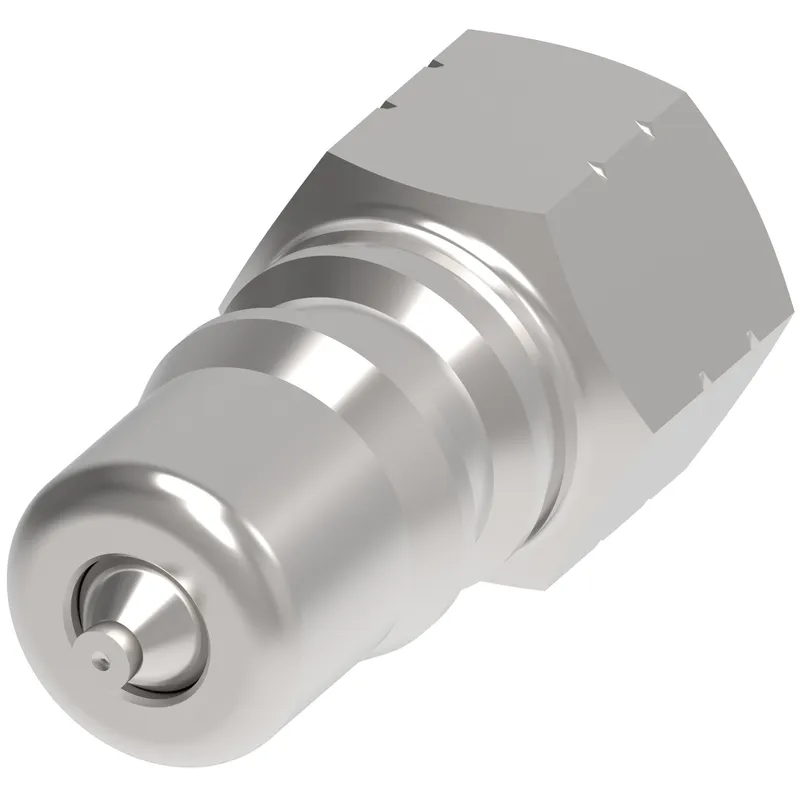

Danfoss 8KP16192

COUPLING,HK,M,1",CS,-16UNF,EPDM

MPN: 8KP16192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 8KP16192?

Danfoss COUPLING,HK,M,1",CS,-16UNF,EPDM, manufacturer part number 8KP16192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146105189
Air inclusion max cc	18.00
Air inclusion max in3	1.10
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	1"
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-16
End size 2	1-5/16"
End type 1	Male push to connect
End type 2	Female 37 degree swivel
Finish plating	Zinc
Flow rate GPM	50.00
Flow rate LPM	189.27
Fluid compatibility	Hydraulic fluid
Fluid loss cc	16.90000
Fluid loss in3	1.03100
Hex size 1 IN	1.880
Hex size 1 MM	47.752
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Thread size 1	1 5/16-12 UN
Valve type	2 way
Working pressure max psi	4000
Working pressure max BAR	276
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65
