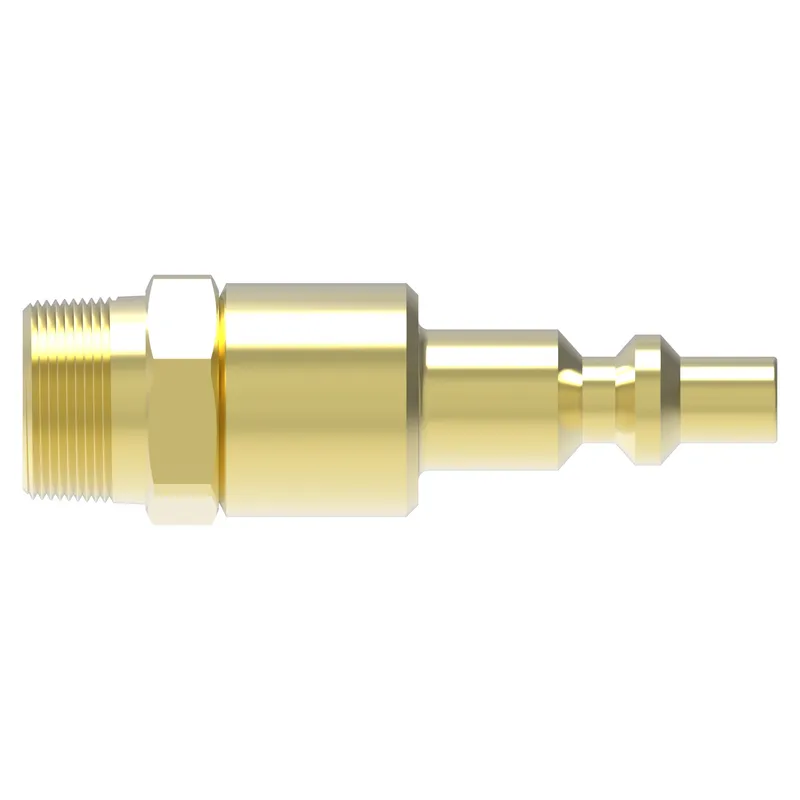

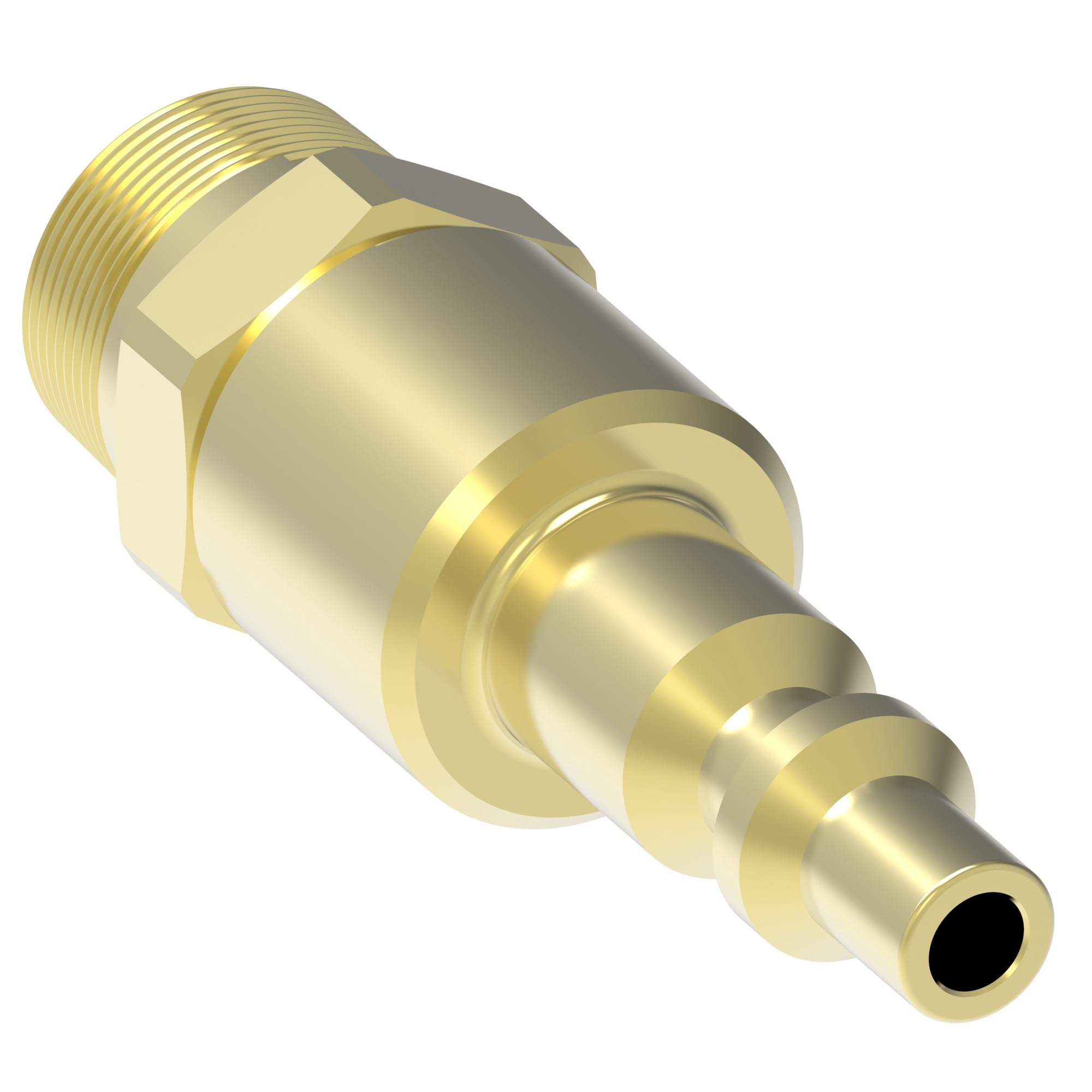

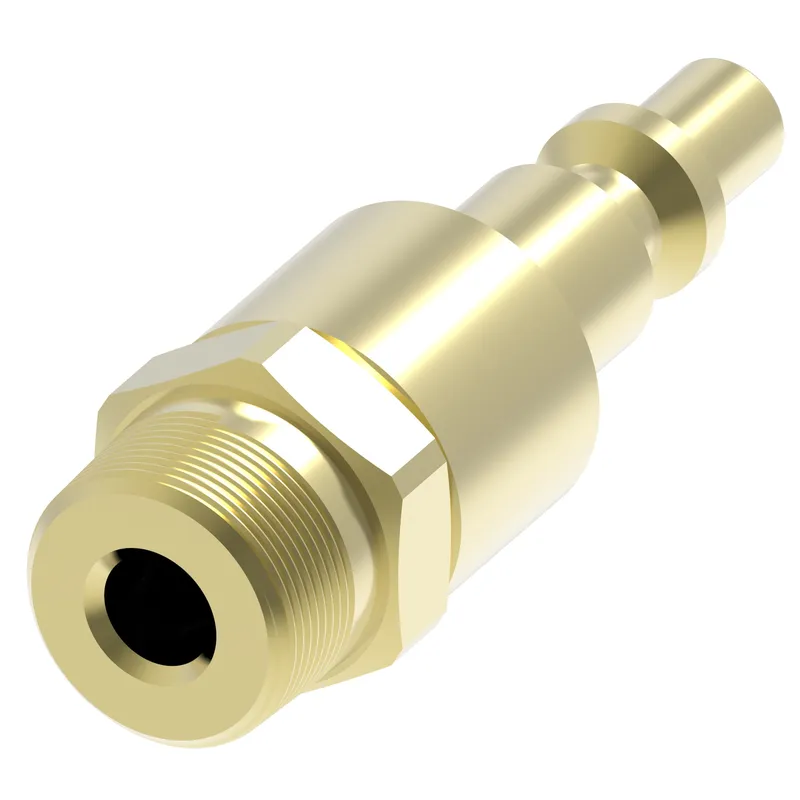

Danfoss 8GHP75M

Cplng, ST SERIES MALE, BRASS

MPN: 8GHP75M
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 8GHP75M?

Danfoss Cplng, ST SERIES MALE, BRASS, manufacturer part number 8GHP75M. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146105004
Angle shape	Straight
Body size	1"
Brand	Danfoss
Burst pressure min bar	359
Burst pressure min psi	5200
Connection style	Manual connect
End size 2	-12
End type 1	Male push to connect
End type 2	Female pipe (NPTF)
Flow rate GPM	140.00
Flow rate LPM	529.96
Fluid compatibility	Versatile fluid
Item type	Male half
Latch type	Push/pull
Product length in	1.660
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	Straight thru
Working pressure max psi	63110
Working pressure max BAR	17983
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

8GHP75M: frequently asked questions

When can 8GHP75M be shipped?

8GHP75M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8GHP75M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8GHP75M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8GHP75M, subject to availability and destination.
