Danfoss 890477

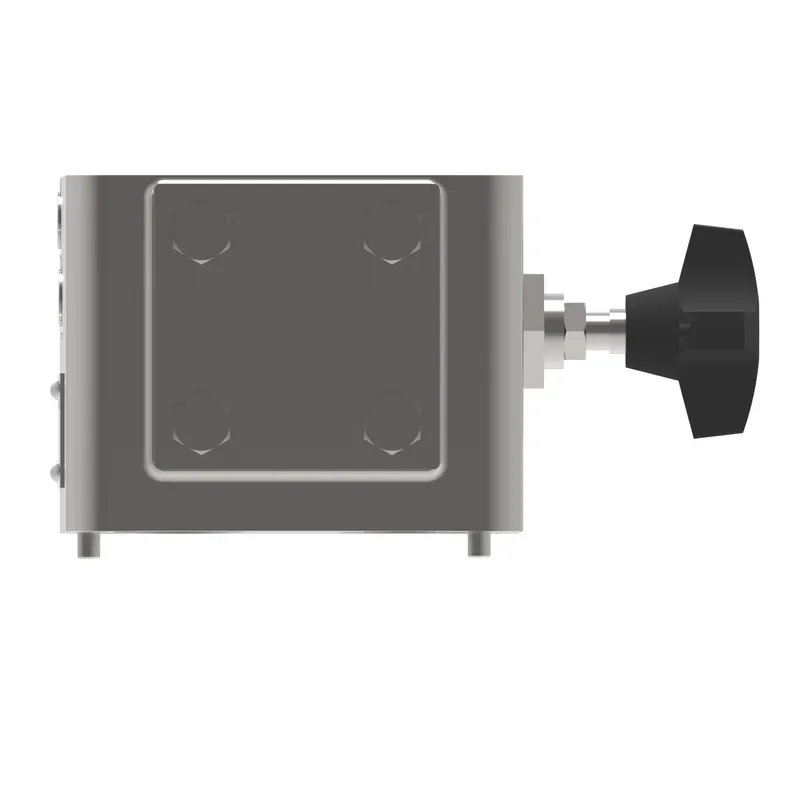

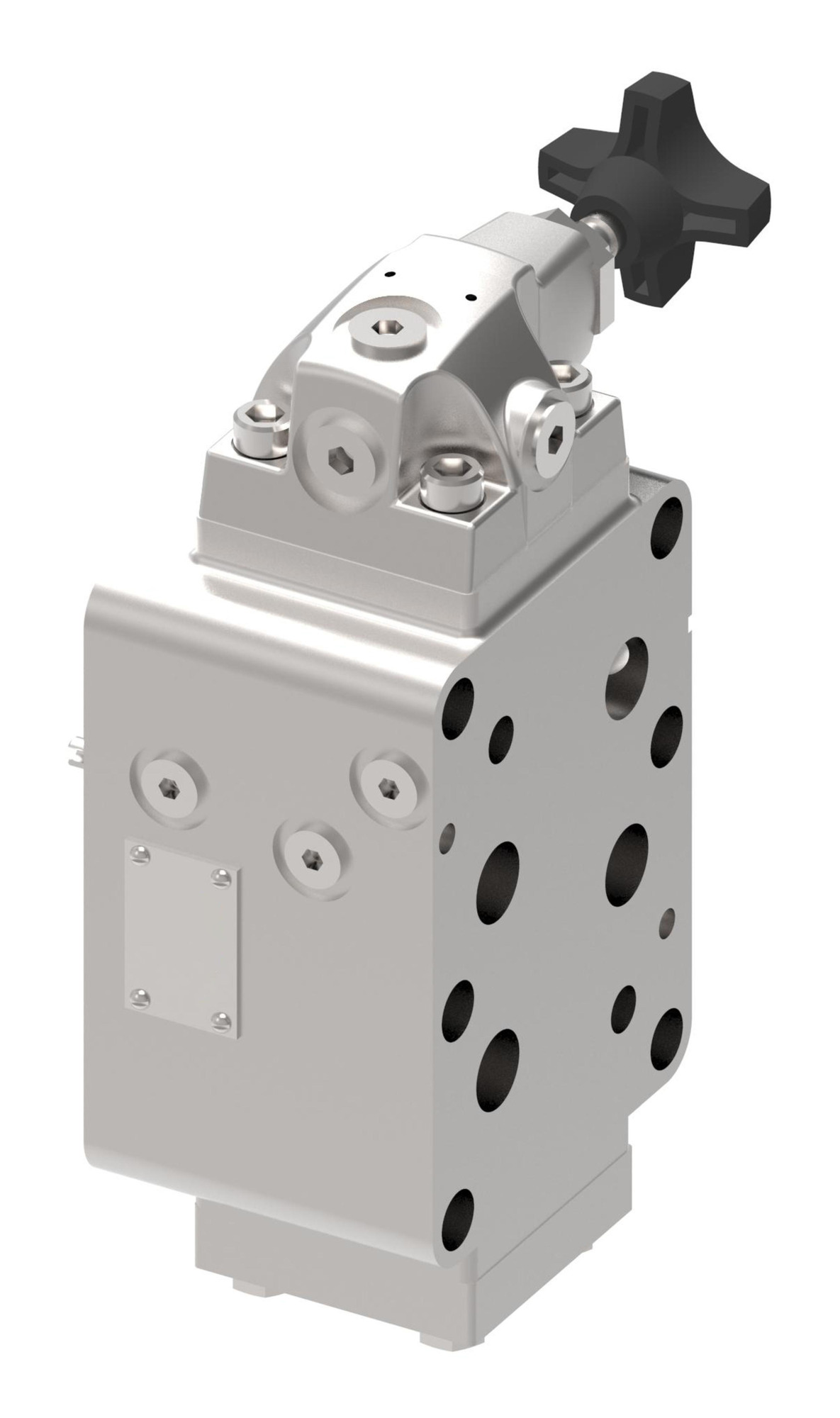

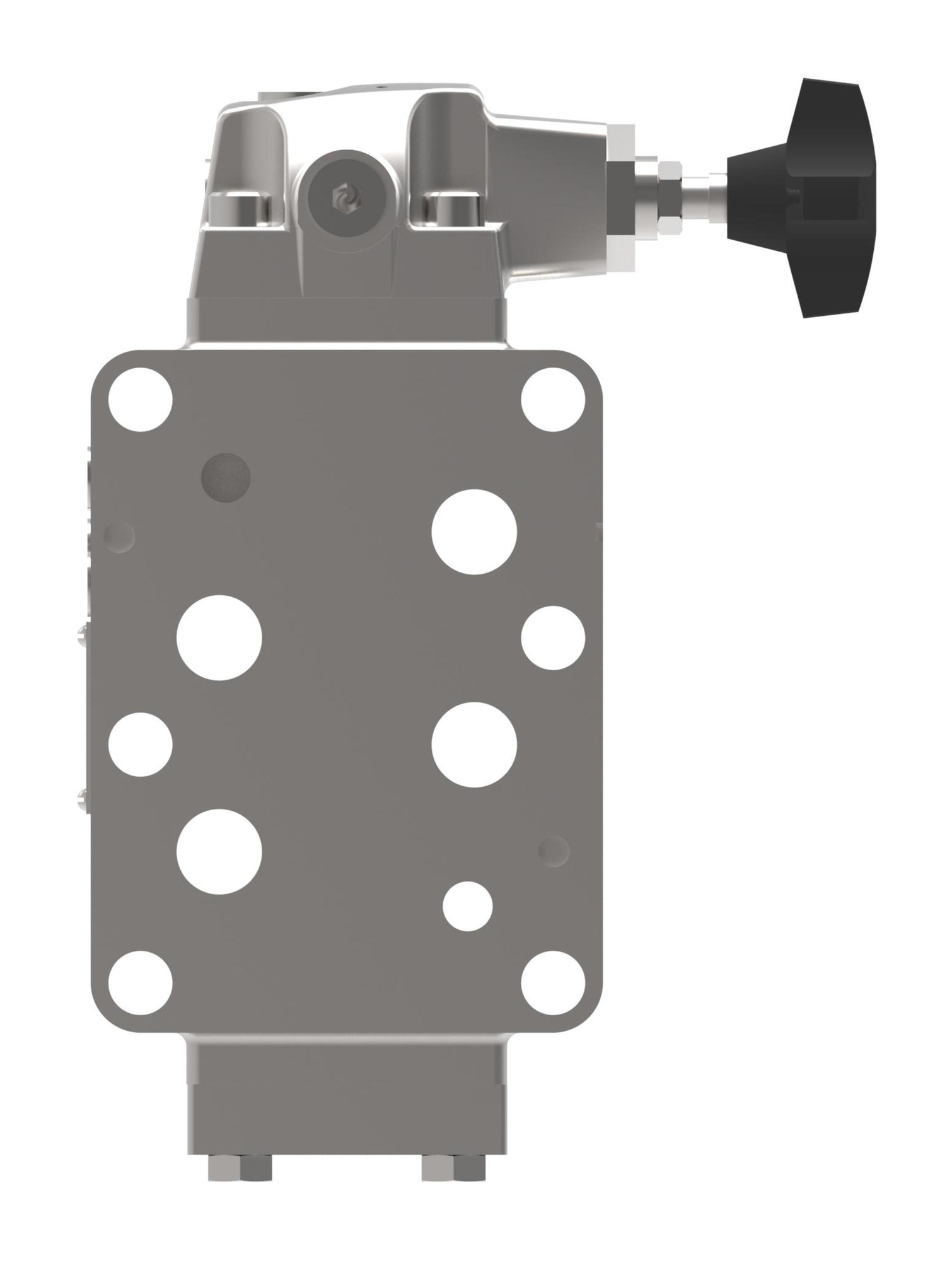

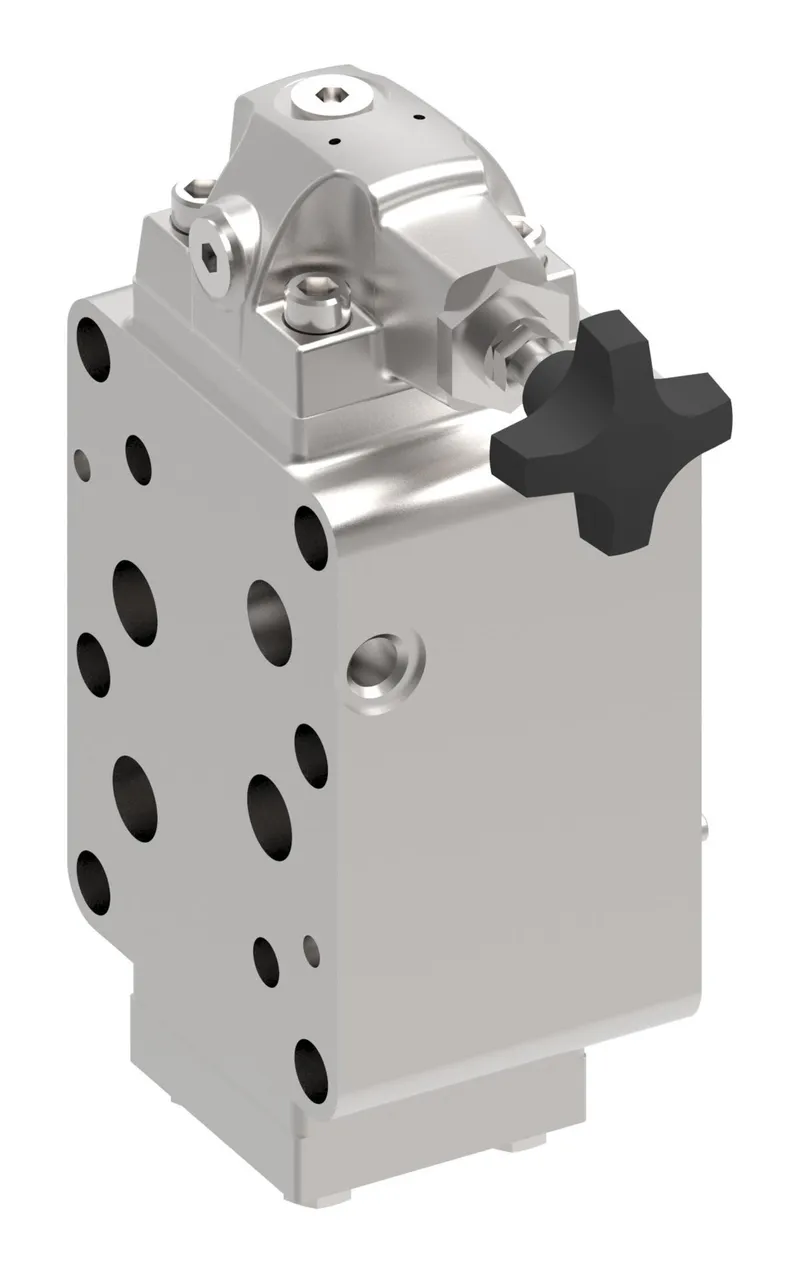

DGX 06 1F 60 S19, DGX061F60S19

MPN: 890477
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 890477?

Danfoss DGX 06 1F 60 S19, DGX061F60S19, manufacturer part number 890477. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Brand	Vickers by Danfoss
Design Series	60 Series
Drain option	Y port drain
Flow rate upto LPM	114
Flow rate upto USGPM	30.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
High flow	No
Interface	06 - 3/4"
Max adjustable pressure BAR	70
Max adjustable pressure PSI	1000
Maximum pressure upto bar	210
Maximum pressure upto psi	3000
Model Code 1	DGX061F60S19
Performance	Standard
Product height in	3.750
Product height mm	95.250
Product length in	9.640
Product length mm	244.856
Product width in	4.500
Product width mm	114.3
Seal type	Buna-N
Special features	Internally drained to tank
Valve Mount Type	Subplate/manifold mounted
Valve type	Pressure reducing module
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
