Danfoss 87391-32-32RSV

HOSE NIPPLE ASSY, 2P/32, C61/32, AP, 90D

MPN
87391-32-32RSV
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

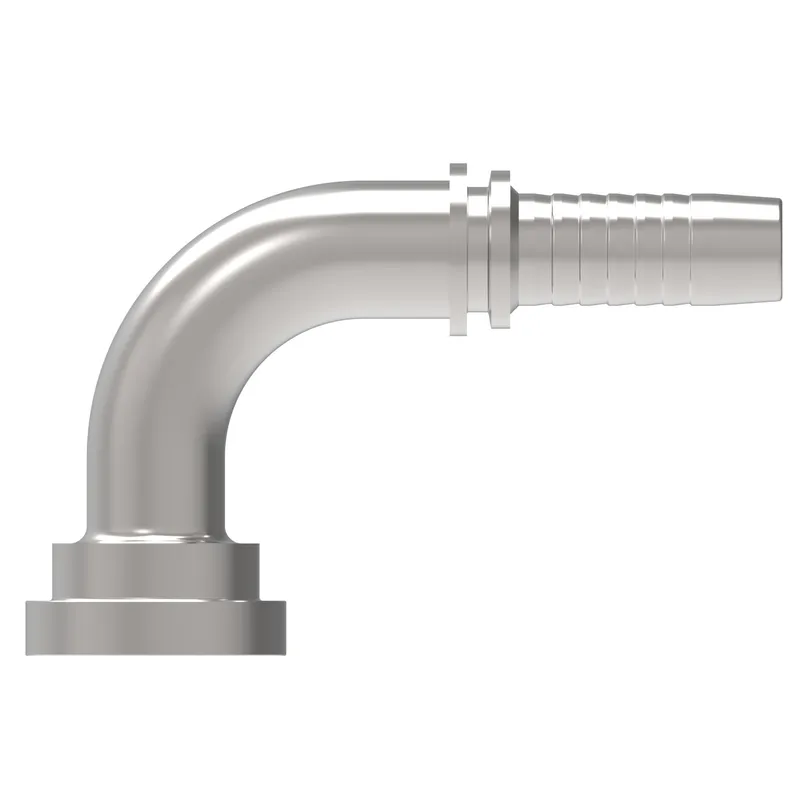

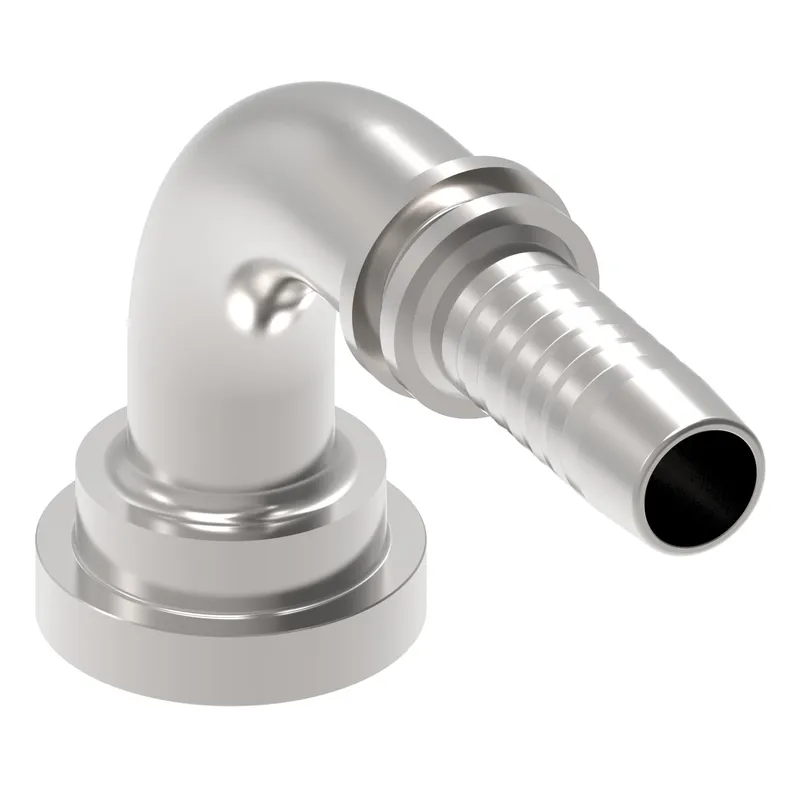

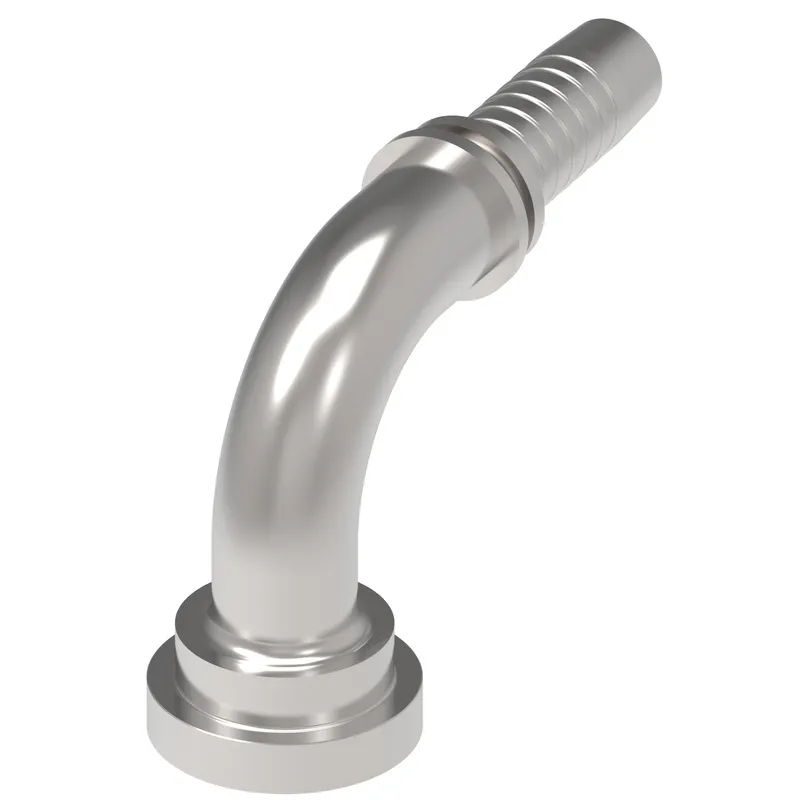

What is the Danfoss 87391-32-32RSV?

Danfoss HOSE NIPPLE ASSY, 2P/32, C61/32, AP, 90D, manufacturer part number 87391-32-32RSV. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN8.021
A dimension MM203.750
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN2.000
Compatible hose ID MM50.800
Construction StyleCrimp
Drop dimension IN4.498
Drop dimension MM114.25
End size 1-32
End Type 1Split flange code 61
Hose cut off factor IN5.187
Hose cut off factor MM131.750
Hose size-32
Inside diameter IN1.692
Inside diameter MM43.000
Product height in5.630
Product height mm142.999
Product length in9.409
Product length mm239.001
Product material316L Stainless steel
Product width in2.811
Product width mm71.399
Thread sealantNo
Working pressure max BAR206
Working pressure max PSI300
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
