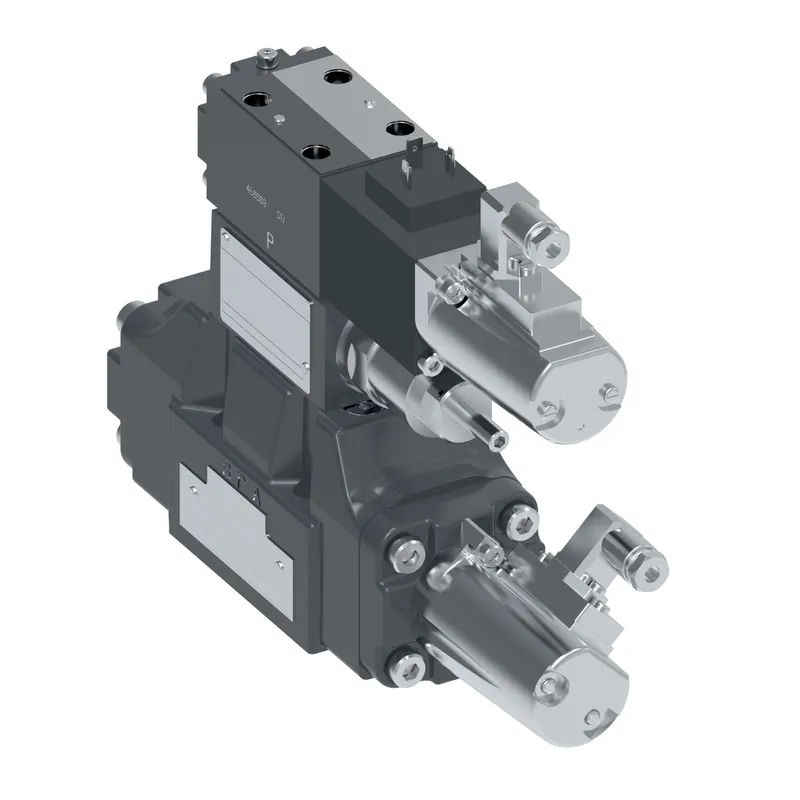

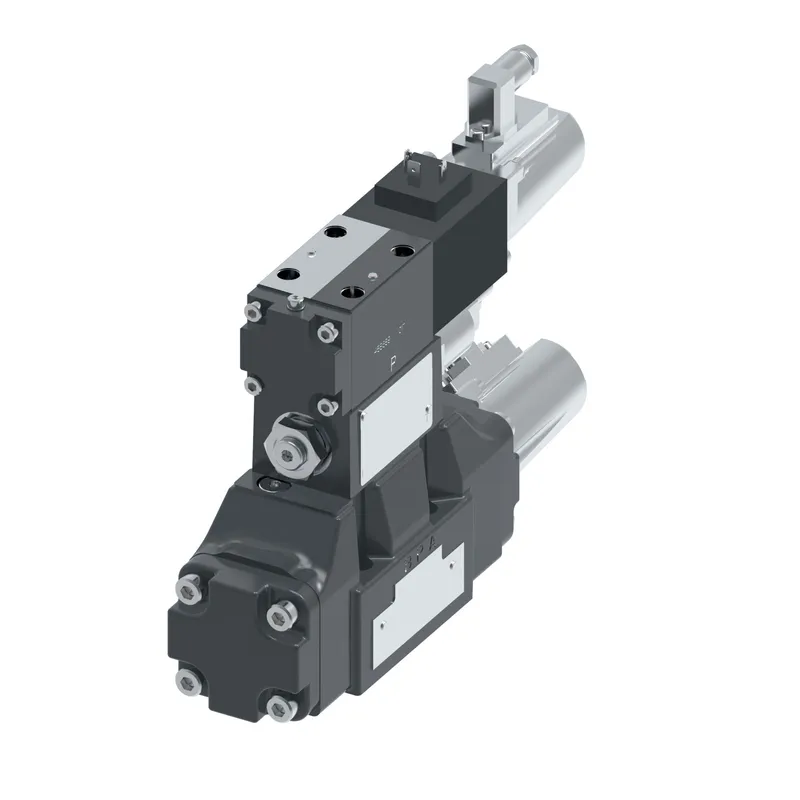

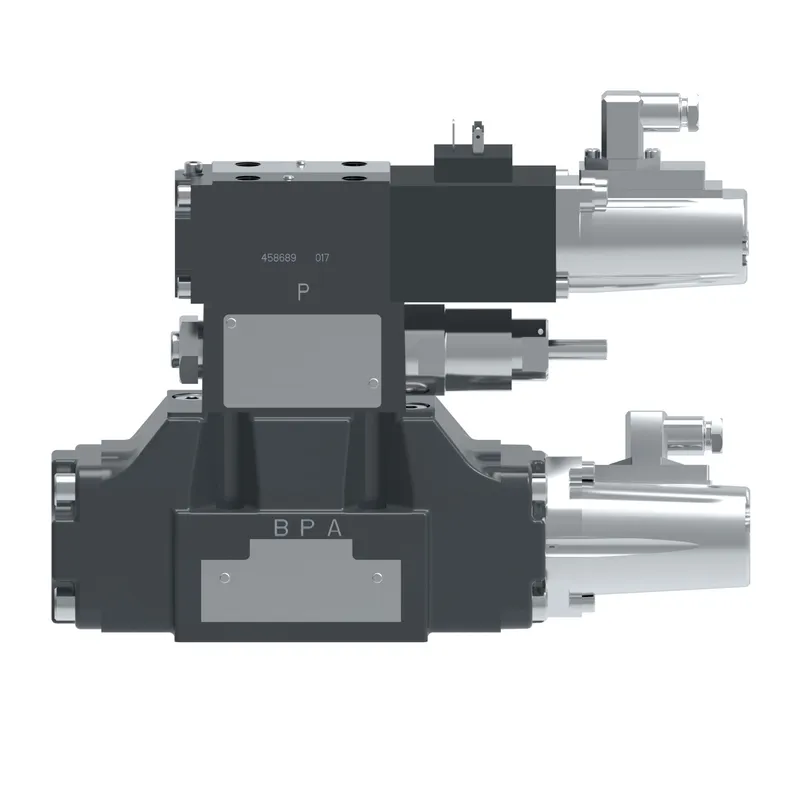

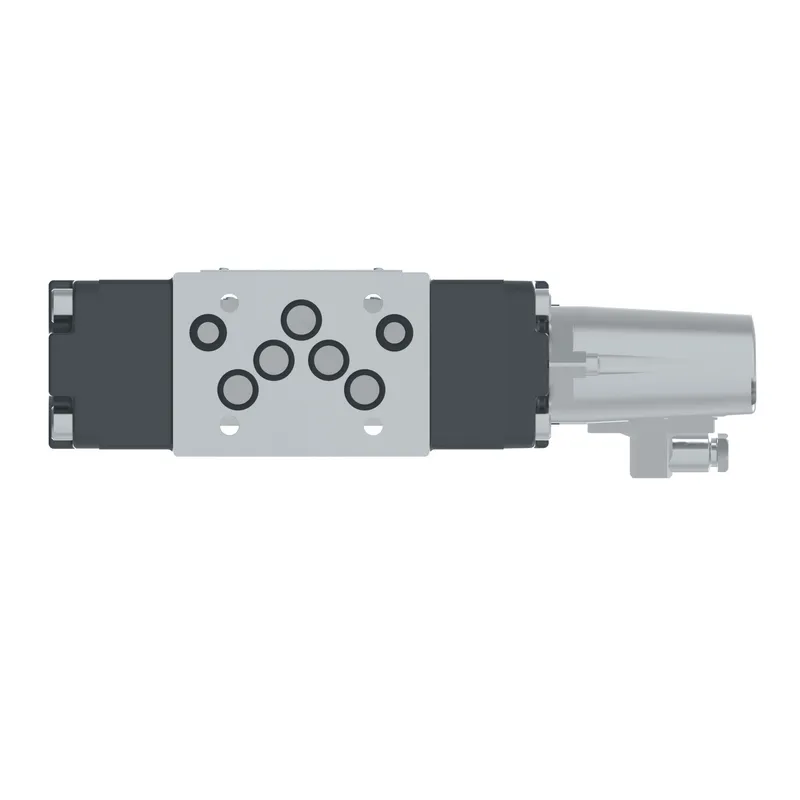

What is the Danfoss 871939?

Danfoss KHDG5V 5 2C100N EX VM U1H1 20, KHDG5V52C100NEXVMU1H120, manufacturer part number 871939. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM100.00
A Port flow USGPM26.40
Actuation TypeSolenoid controlled pilot operated
B Port flow LPM100.00
B Port flow USGPM26.40
BrandVickers by Danfoss
Build orientationSolenoid at B port end
Build typeSpring centered
Coil voltage24 Volt DC
Command inputNone
Communication protocolNone
Design Series20 Series
Electrical ConnectionISO4400 with fitted plugs
Feedback sensorYes
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-05/NFPA D05/CETOP 5/NG10
Manual overridePlain
Maximum pressure BAR315
Maximum pressure PSI4500
MeteringMeter in / meter out
Model Code 1KHDG5V52C100NEXVMU1H120
On board electronicsNo
PerformanceServo
Pilot supplyExternal
Product height in8.390
Product height mm213.106
Product length in10.280
Product length mm261.112
Product width in2.860
Product width mm72.644
ProFX compatibleNo
Reducer moduleYes
Reverse flow checkNo
Seal typeViton
Special featuresNone
Spool TypeISO4401-10/NFPA D10/CETOP 10/NG32
StageTwo stage
Symmetric flowYes
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
