Danfoss 871751

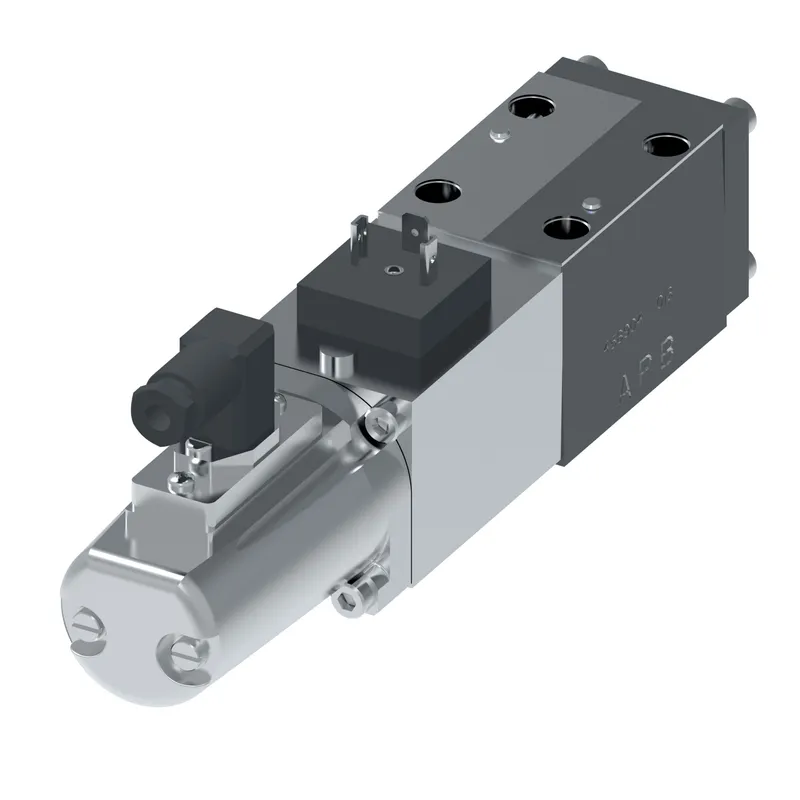

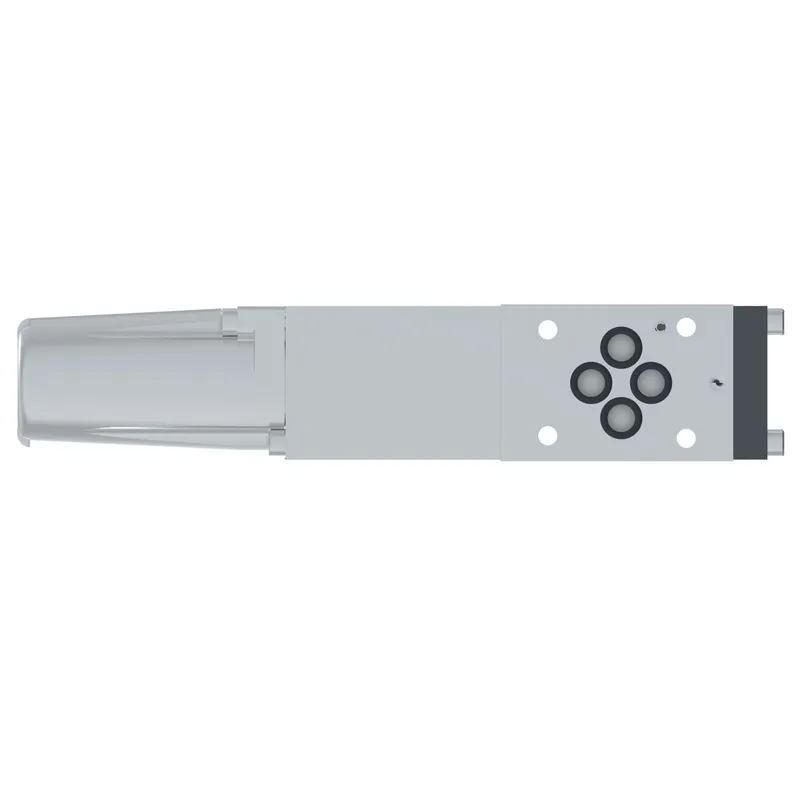

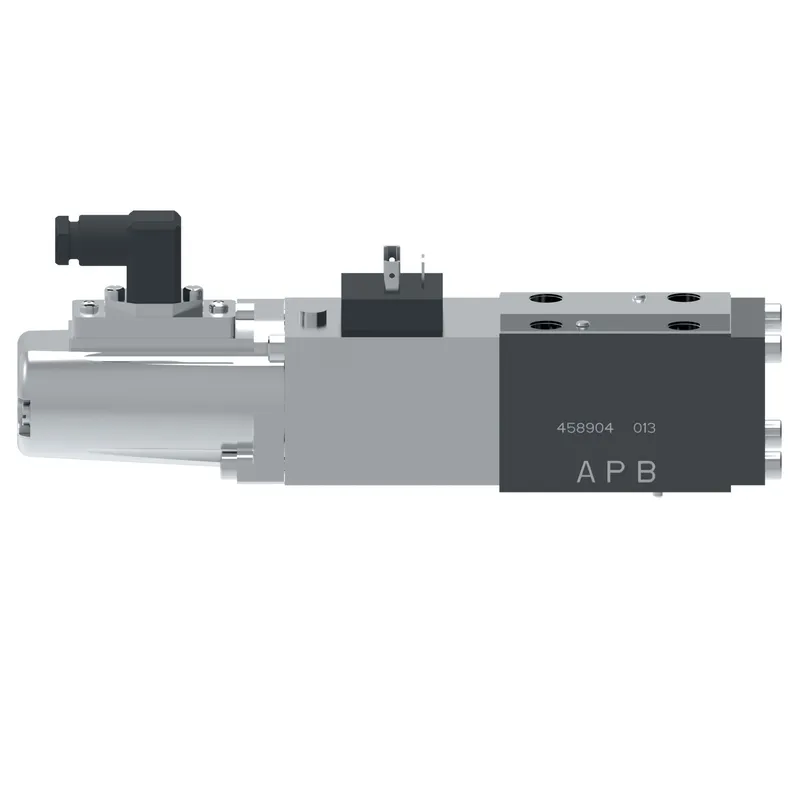

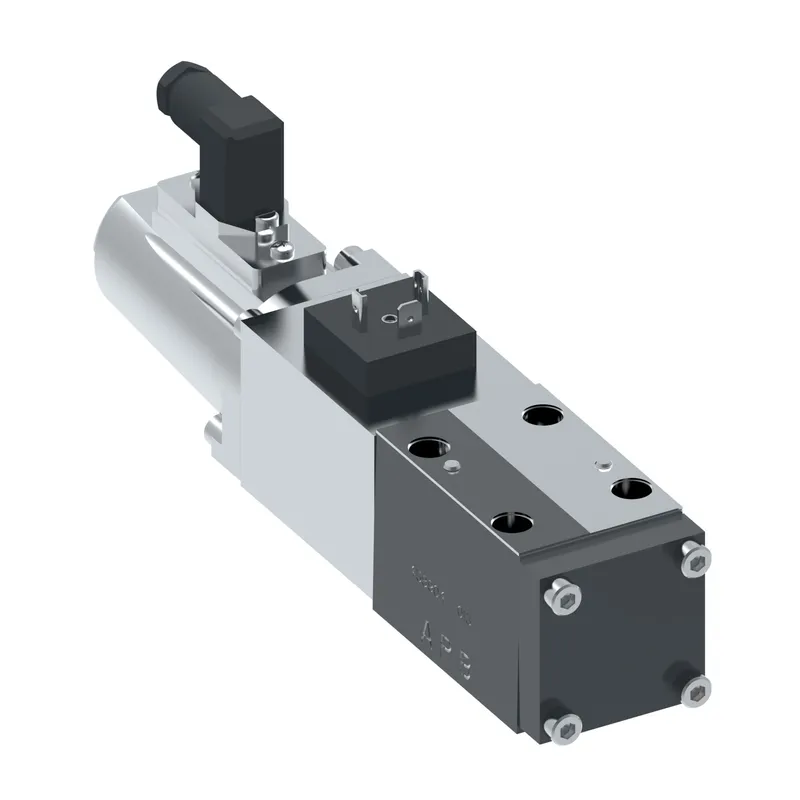

KFTG4V 3 2B03F Z M U1 H720, KFTG4V32B03FZMU1H720

MPN: 871751
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 871751?

Danfoss KFTG4V 3 2B03F Z M U1 H720, KFTG4V32B03FZMU1H720, manufacturer part number 871751. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid controlled
B Port flow LPM	3.00
B Port flow USGPM	0.80
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	20 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	None
Maximum pressure BAR	315
Maximum pressure PSI	4500
Metering	Fine meter in / fine meter out
Model Code 1	KFTG4V32B03FZMU1H720
On board electronics	No
Performance	High
Product height in	3.430
Product height mm	87.122
Product length in	8.860
Product length mm	225.044
Product width in	1.890
Product width mm	48.006
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional throttle
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
