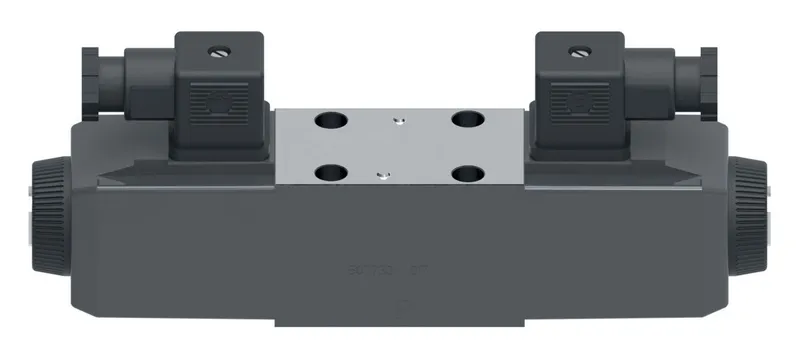

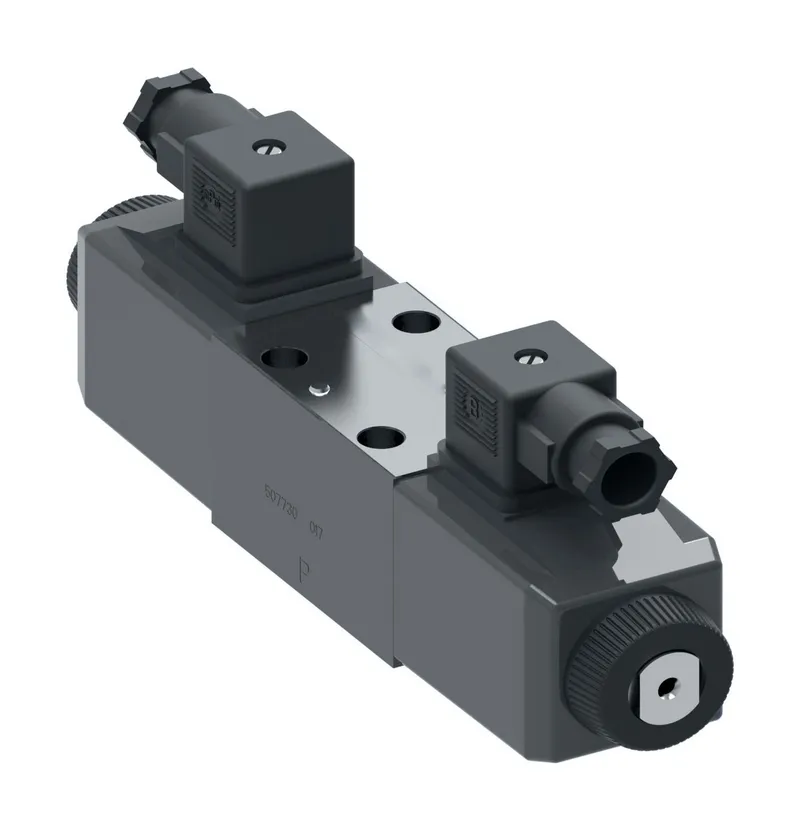

Danfoss 870283

DG4V-3-2N-H-M-U1-B6-60-EN38, DG4V32NHMU1B660EN38

MPN: 870283
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 870283?

Danfoss DG4V-3-2N-H-M-U1-B6-60-EN38, DG4V32NHMU1B660EN38, manufacturer part number 870283. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	60 Series
Electrical Connection	ISO4400 with fitted plugs
Energ Time	15-23 ms
Flow rate upto GPM	21.0
Flow rate upto LPM	80.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Waterproof
Model Code 1	DG4V32NHMU1B660EN38
Performance	High performance
Power Consumption	61VA 50HZ - 58VA 60HZ
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.420
Product length in	5.750
Product length mm	146.050
Product width in	1.800
Product width mm	45.72
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	Low leakage
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	No spring detented
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
