What is the Danfoss 869633?

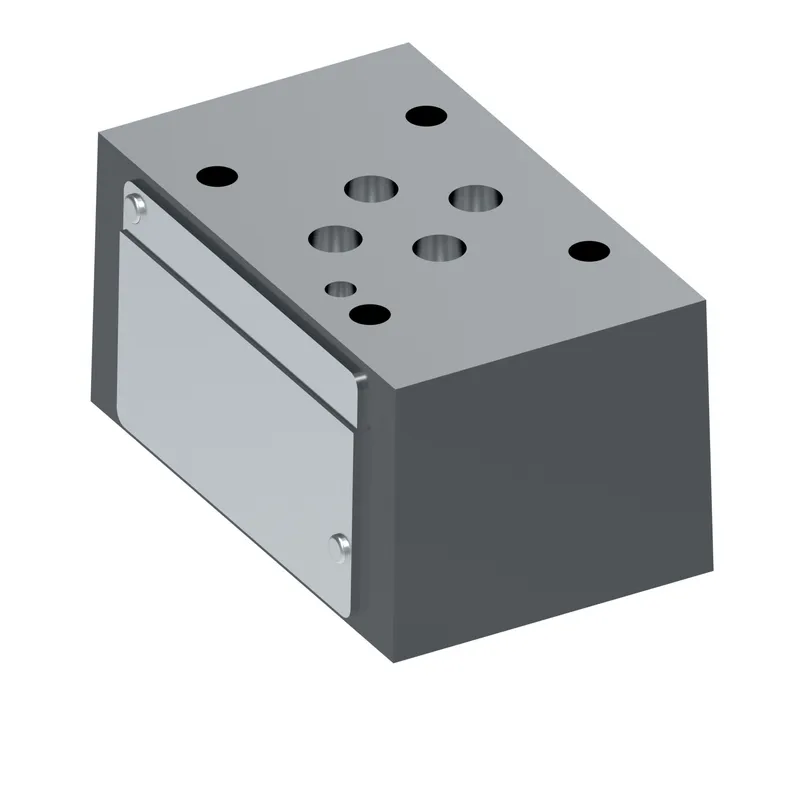

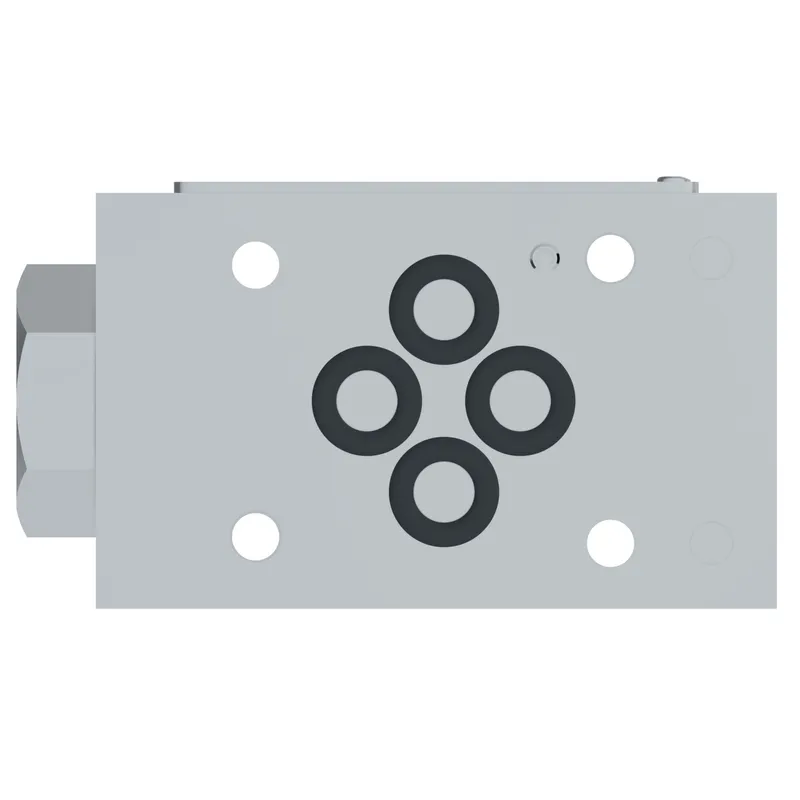

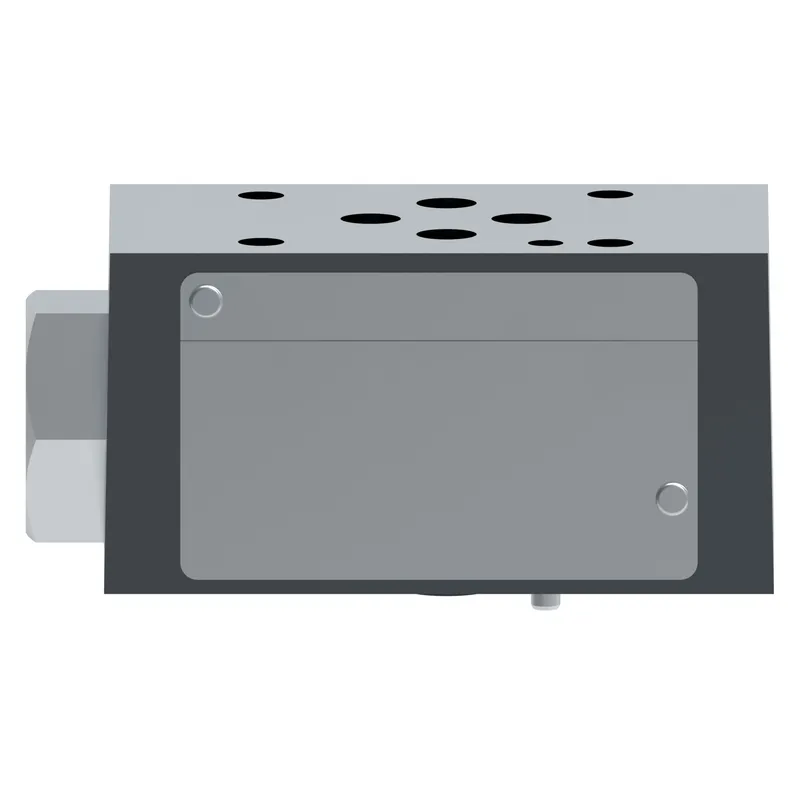

Danfoss DGMDC 3 Y BK 41, DGMDC3YBK41, manufacturer part number 869633. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Brand	Vickers by Danfoss
Check location	Line B
Cracking pressure bar	1.00
Cracking pressure psi	15
Design Series	41 Series
Direction of flow	Towards actuator
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-03
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMDC3YBK41
Performance	Standard
Product height in	1.570
Product height mm	39.878
Product length in	3.500
Product length mm	88.900
Product width in	1.870
Product width mm	47.498
Proposition 65	Cancer and Reproductive Harm
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Direct check valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
