Danfoss 868889

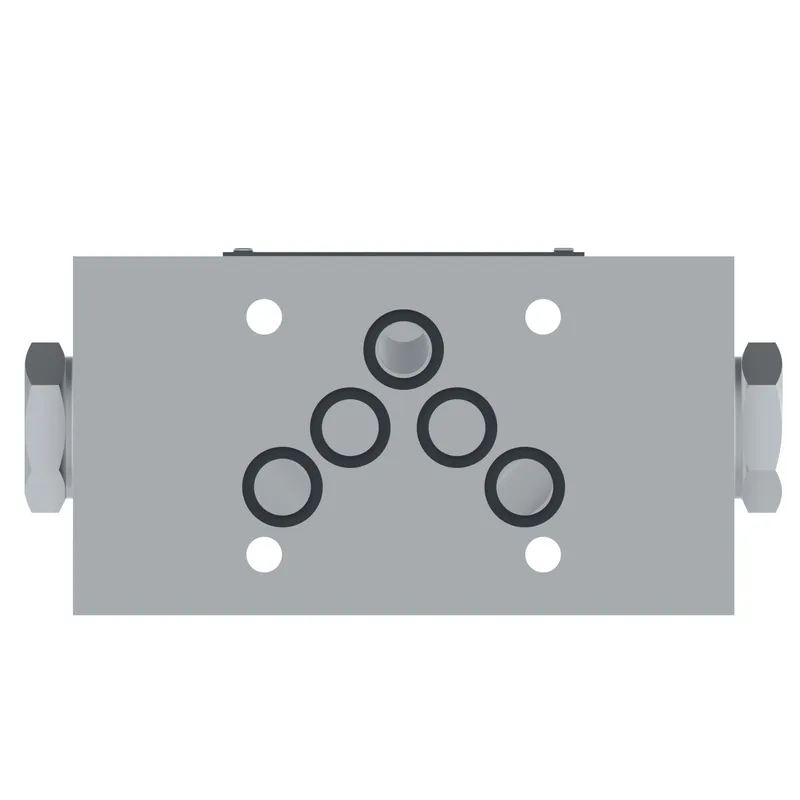

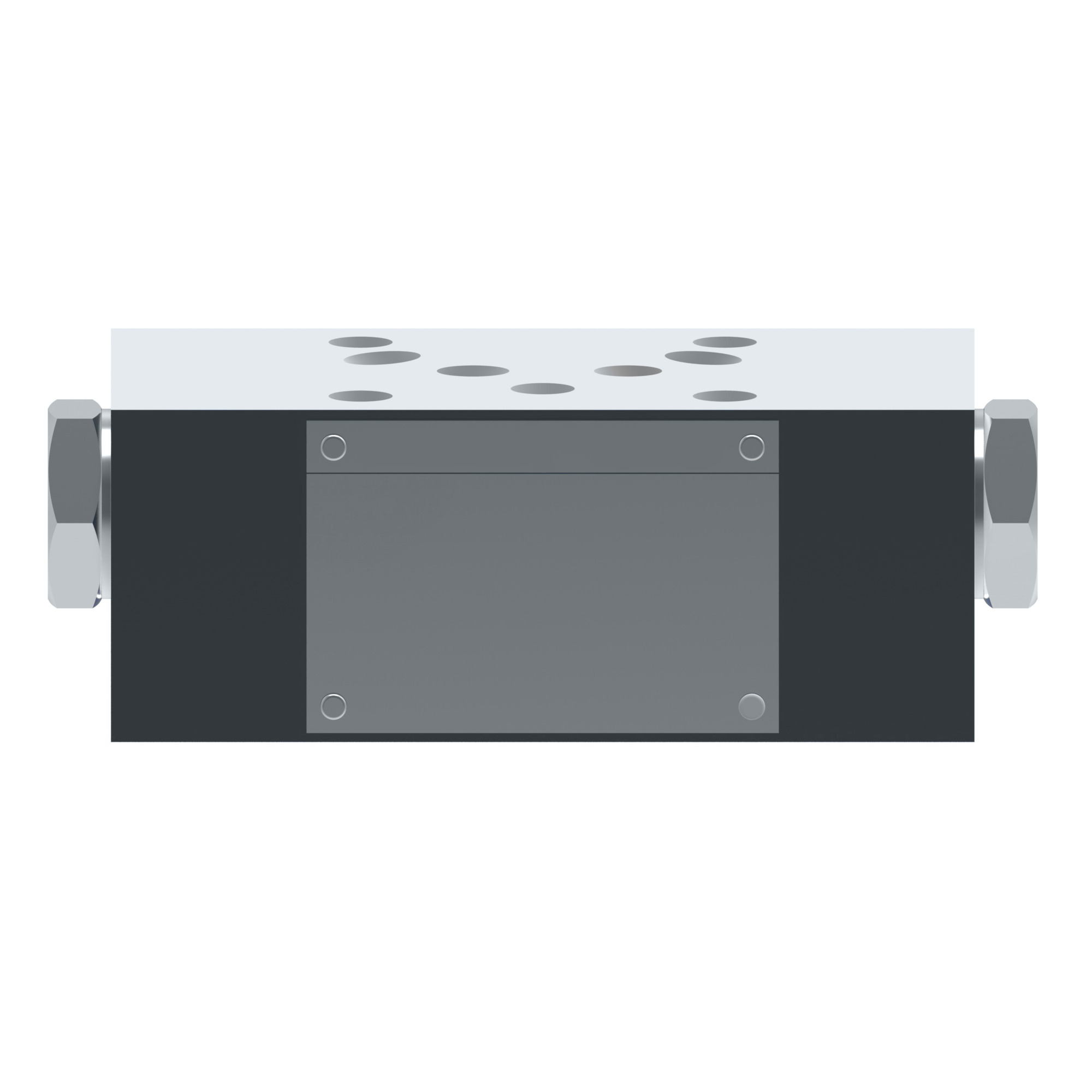

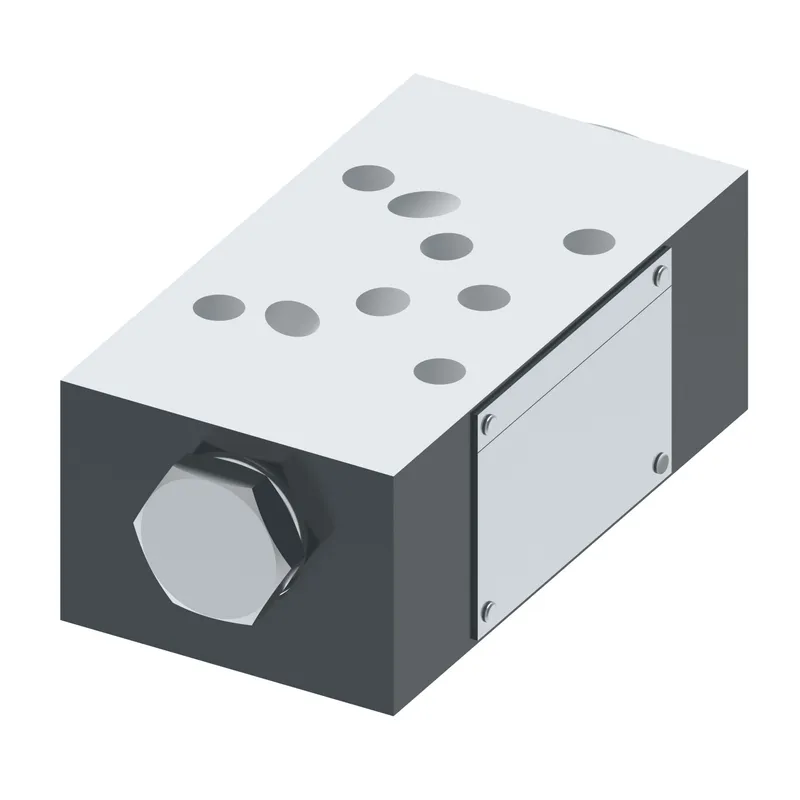

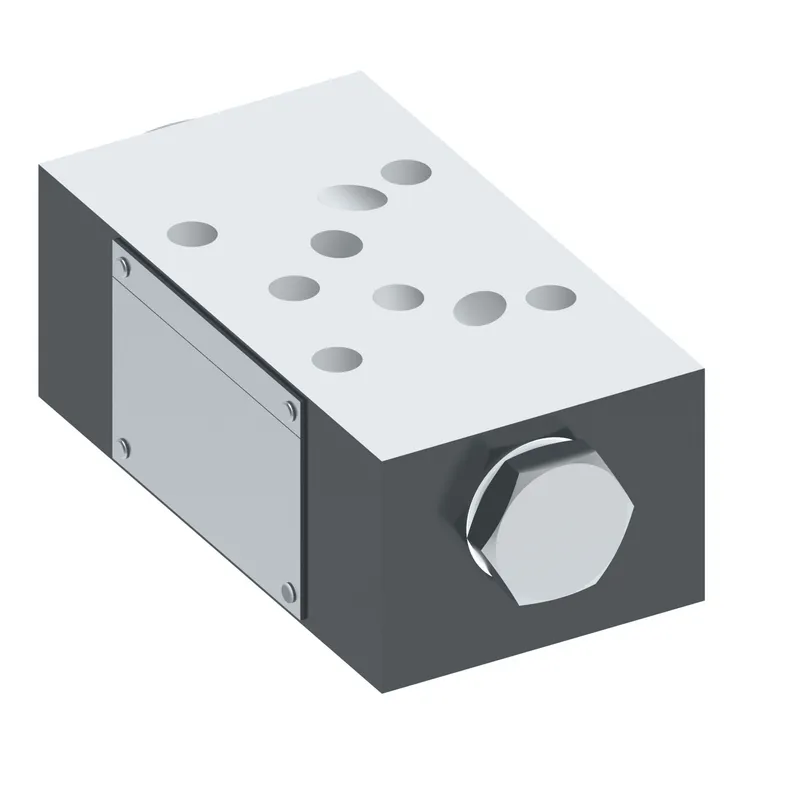

DGMPC 5 DBAK 30, DGMPC5DBAK30

MPN: 868889
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 868889?

Danfoss DGMPC 5 DBAK 30, DGMPC5DBAK30, manufacturer part number 868889. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Brand	Vickers by Danfoss
Check location	Line B
Cracking pressure bar	1.00
Cracking pressure psi	15
Decopression feature	Decompression feature
Design Series	30 Series
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Function	Check in line B, pilot operated from line A
Interface	ISO4401-05
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMPC5DBAK30
Performance	Standard
Port operated upon	B cylinder port
Product height in	1.970
Product height mm	50.038
Product length in	5.820
Product length mm	147.828
Product width in	2.740
Product width mm	69.596
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	PO check valve
Working temp max C	50
Working temp max F	120
Working temp min C	20
Working temp min F	70
