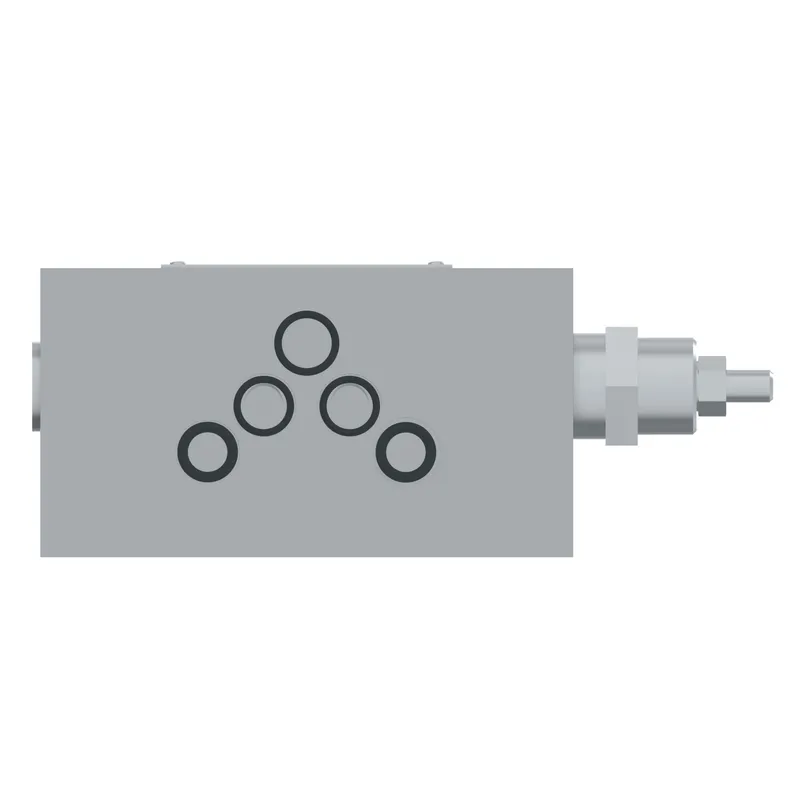

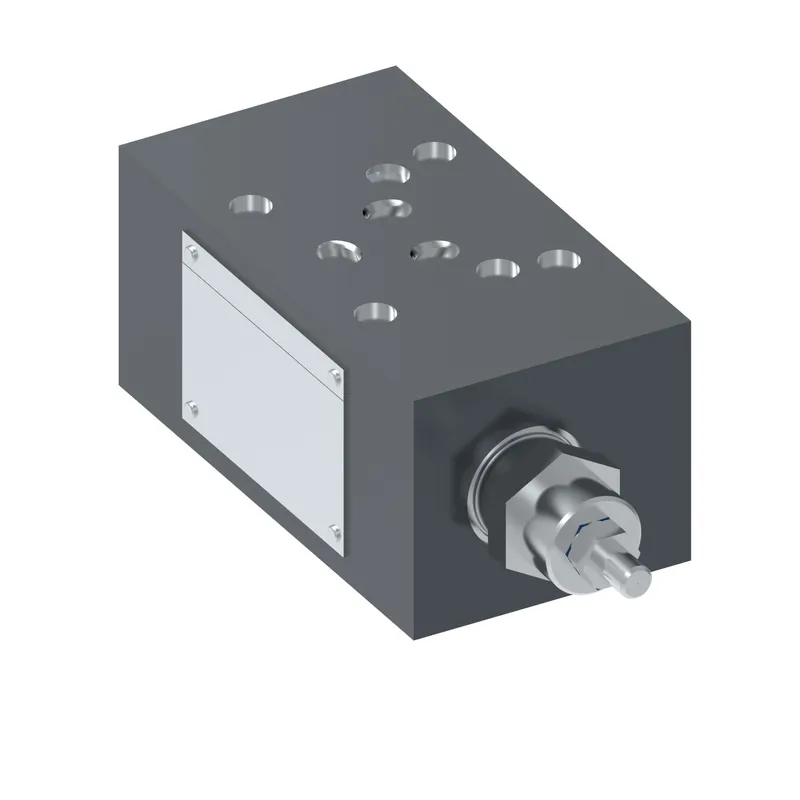

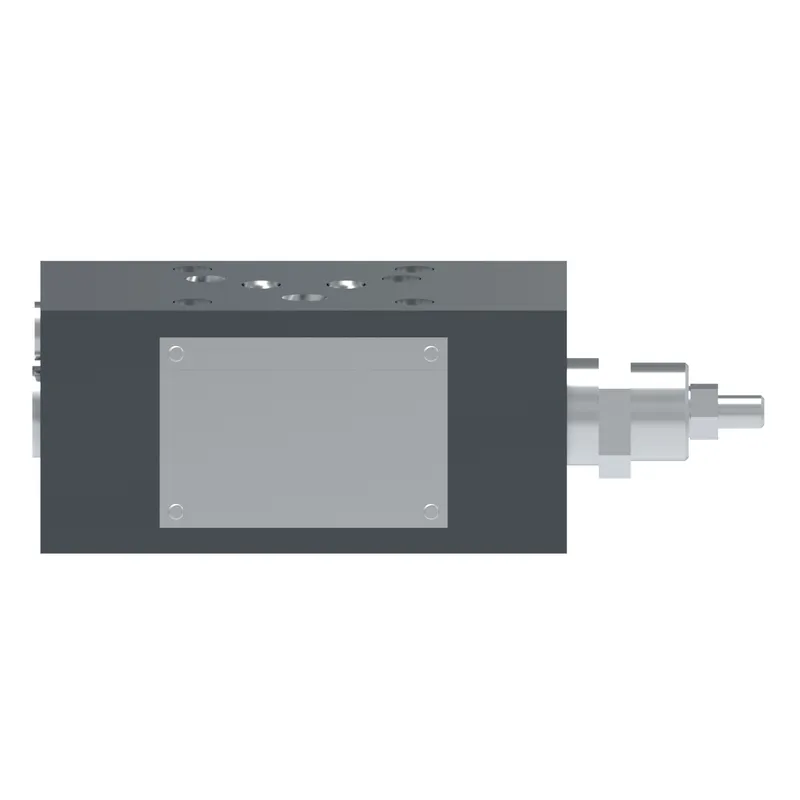

Danfoss 868878

DGMX2 5 PB FW E S 30, DGMX25PBFWES30

MPN: 868878
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 868878?

Danfoss DGMX2 5 PB FW E S 30, DGMX25PBFWES30, manufacturer part number 868878. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Screw and locknut
Brand	Vickers by Danfoss
Design Series	30 Series
External drain	Yes
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Gauge Port Thread Type	SAE 4 (7/16"-20 UNF-2B)
Interface	ISO4401-05
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMX25PBFWES30
Pilot control	Cylinder port B
Port operated upon	P pressure port
Pressure adjustment range	8.5-200 bar (125-2900 psi)
Product height in	2.360
Product height mm	59.944
Product length in	8.190
Product length mm	208.026
Product width in	2.820
Product width mm	71.628
Remote control port	No
Valve Mount Type	Subplate/manifold mounted
Valve type	PRESSURE REDUCING VALVE
Working temp max C	80
Working temp max F	176
Working temp min C	0
Working temp min F	32
