What is the Danfoss 867334?

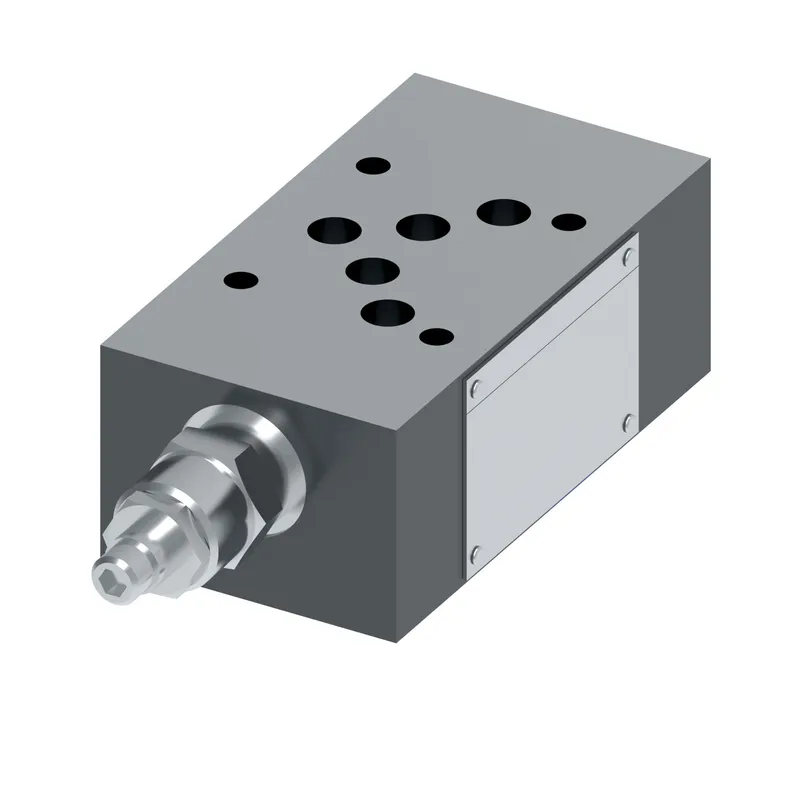

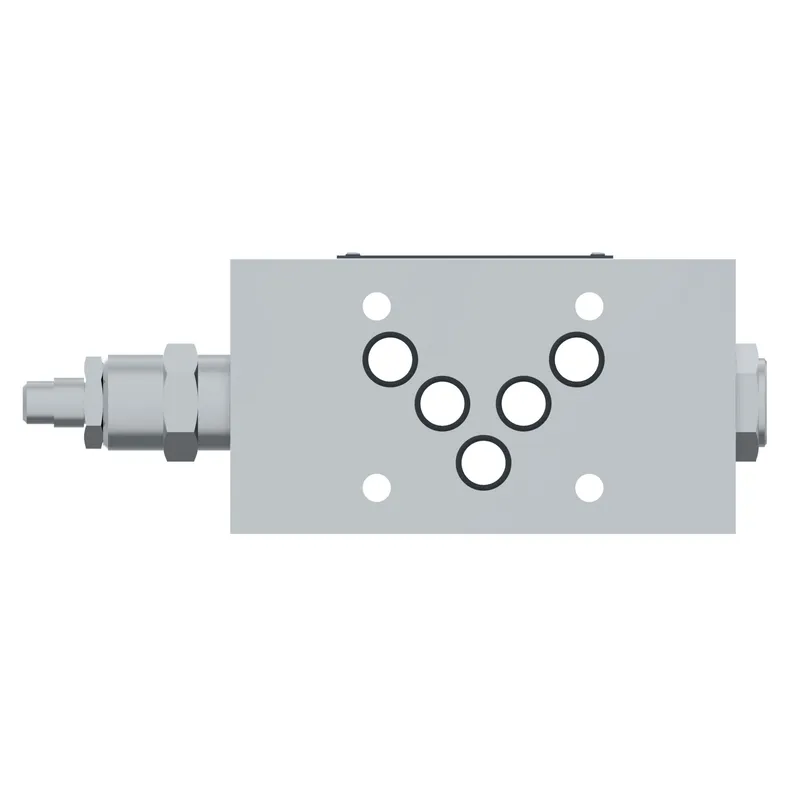

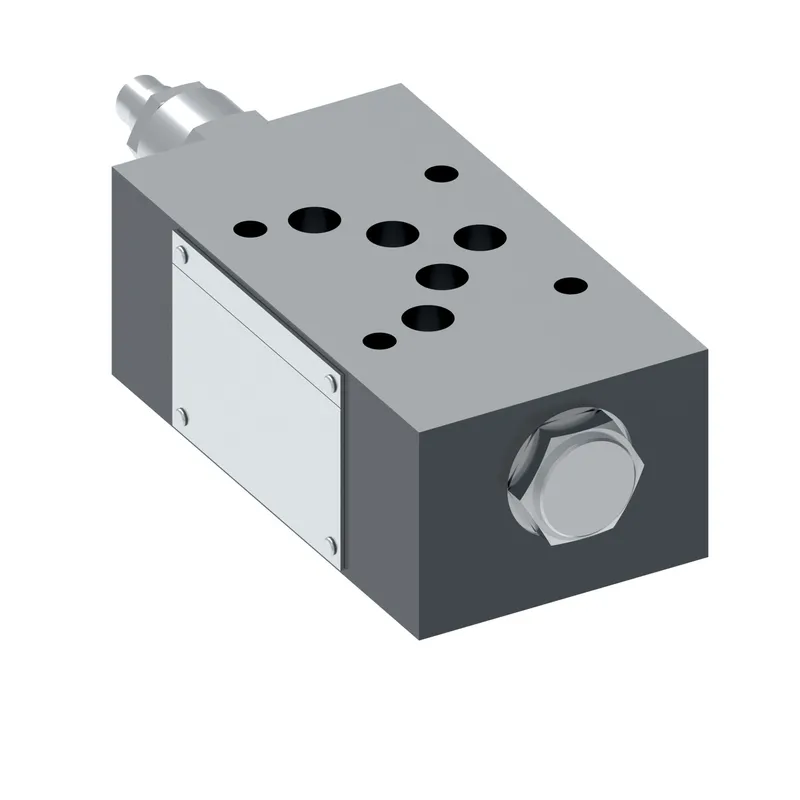

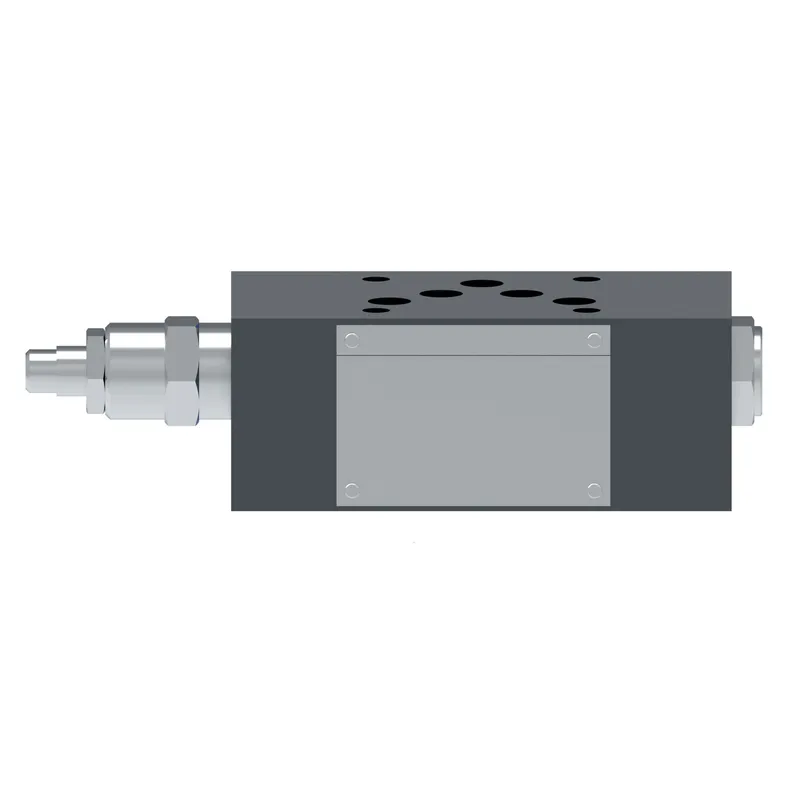

Danfoss DGMFN 5 Y A1W 30, DGMFN5YA1W30, manufacturer part number 867334. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Screw and locknut
Brand	Vickers by Danfoss
Control type 1	Fine control
Design Series	30 Series
Direction of flow	Meter-out control
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-05
Location control function 1	Line A
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMFN5YA1W30
Performance	Standard
Port operated upon	A cylinder port
Product height in	1.970
Product height mm	50.038
Product length in	6.780
Product length mm	172.212
Product width in	2.820
Product width mm	71.628
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Flow control valve
Working temp max C	50
Working temp max F	120
Working temp min C	20
Working temp min F	70
