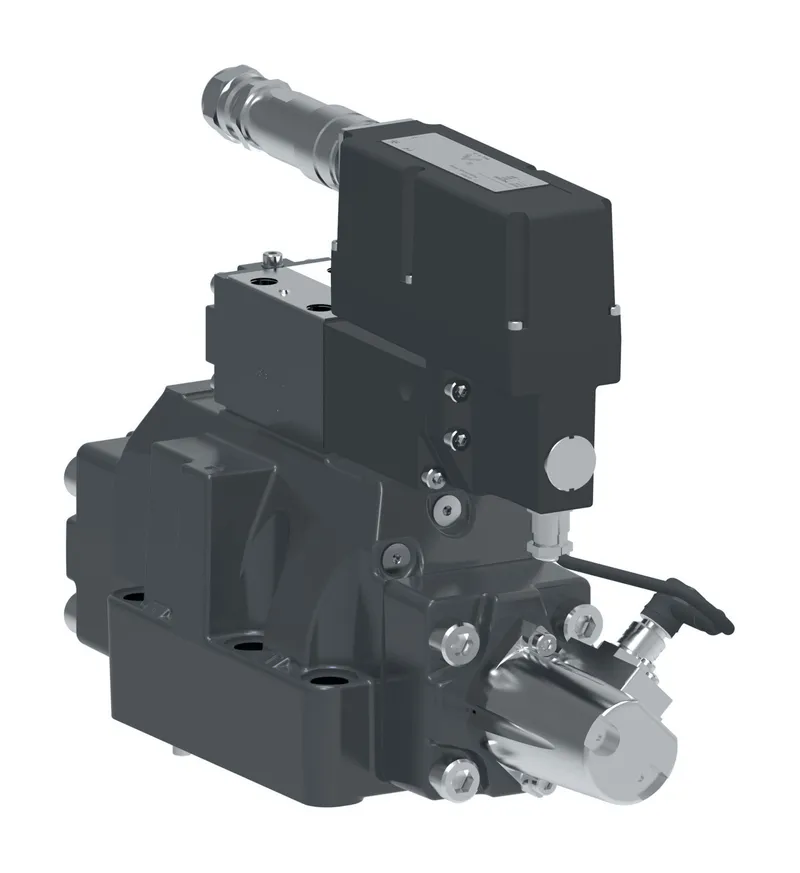

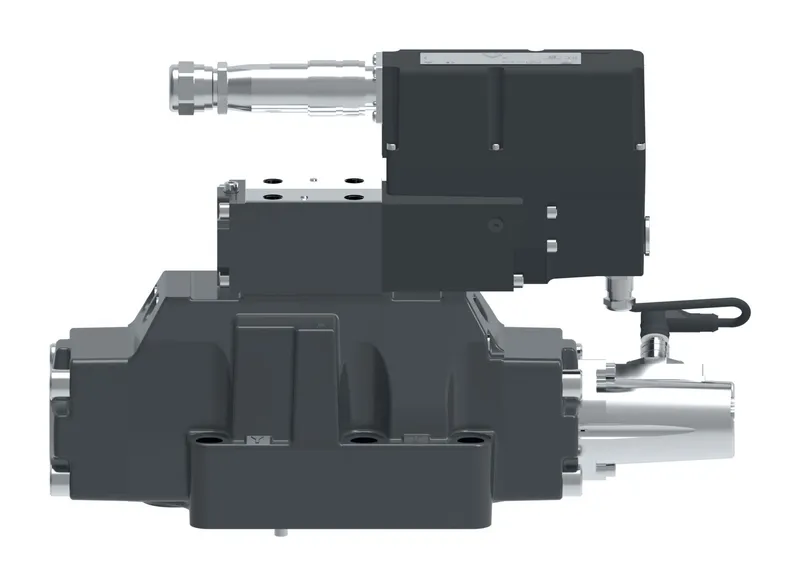

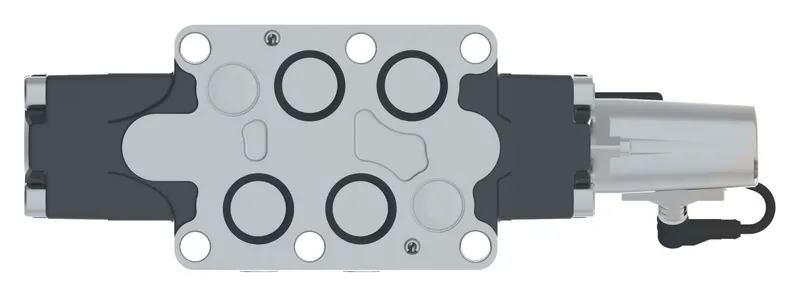

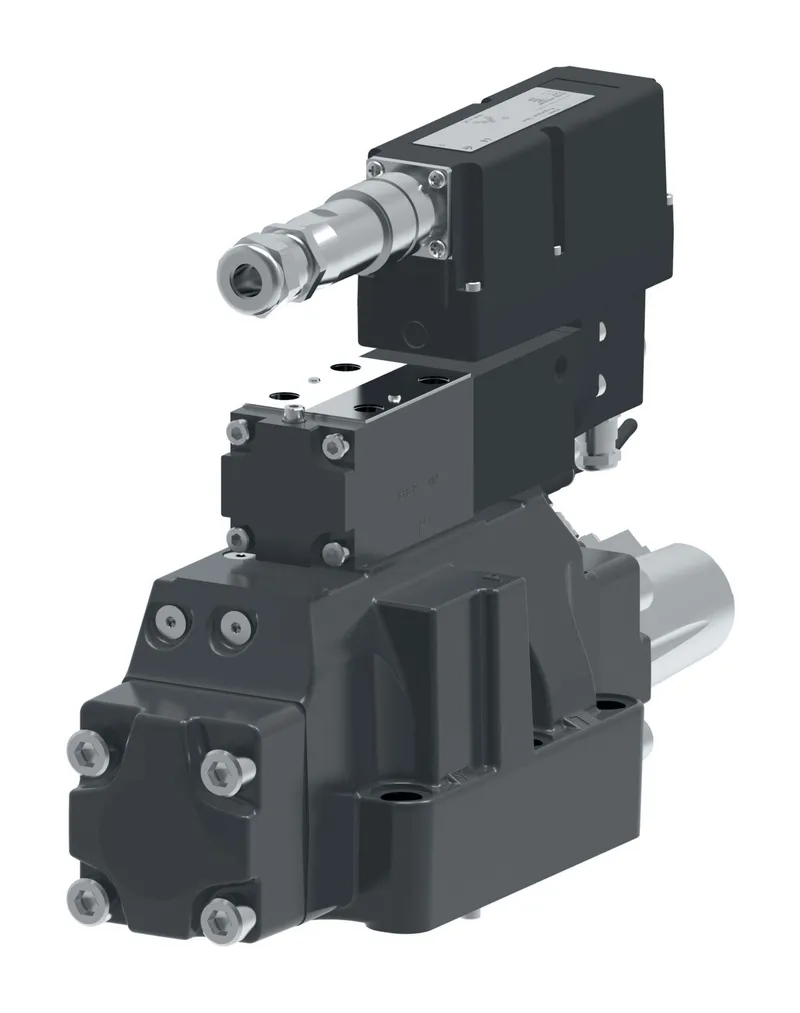

Danfoss 864AN00003A

KBHDG5V-7-33C180N-T-M1-PE7-H4-12-EN037, KBHDG5V733C180NTM1PE7H412EN037

MPN
864AN00003A
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 864AN00003A?

Danfoss KBHDG5V-7-33C180N-T-M1-PE7-H4-12-EN037, KBHDG5V733C180NTM1PE7H412EN037, manufacturer part number 864AN00003A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM180.00
A Port flow USGPM48.00
Actuation TypeSolenoid controlled pilot operated
B Port flow LPM180.00
B Port flow USGPM48.00
BrandVickers by Danfoss
Build orientationSolenoid at B port end
Build typeSpring centered
Coil voltage24 Volt DC
Command input+/-10V Command +/-10V feedback
Communication protocolNone
Current3 amp
Design Series12 Series
Electrical ConnectionElectrical (PE7) 7 pin electrical plug with mating half
Feedback sensorYes
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-07/NFPA D07/CETOP 7/NG16
Manual overrideNone
Maximum pressure BAR210
Maximum pressure PSI3000
MeteringMeter in / meter out
Model Code 1KBHDG5V733C180NTM1PE7H412EN037
On board electronicsYes
PerformanceServo
Pilot drainInternal
Pilot supplyInternal
Product height in8.300
Product height mm210.820
Product length in10.920
Product length mm277.368
Product width in3.620
Product width mm91.948
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresSpecial for Van Dorn
Spool TypeBleed A and B to T
StageTwo stage
Symmetric flowYes
Tank port rating BAR50
Tank port rating PSI700
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-40
Working temp min F-40

864AN00003A: frequently asked questions

When can 864AN00003A be shipped?

864AN00003A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 864AN00003A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 864AN00003A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 864AN00003A, subject to availability and destination.
