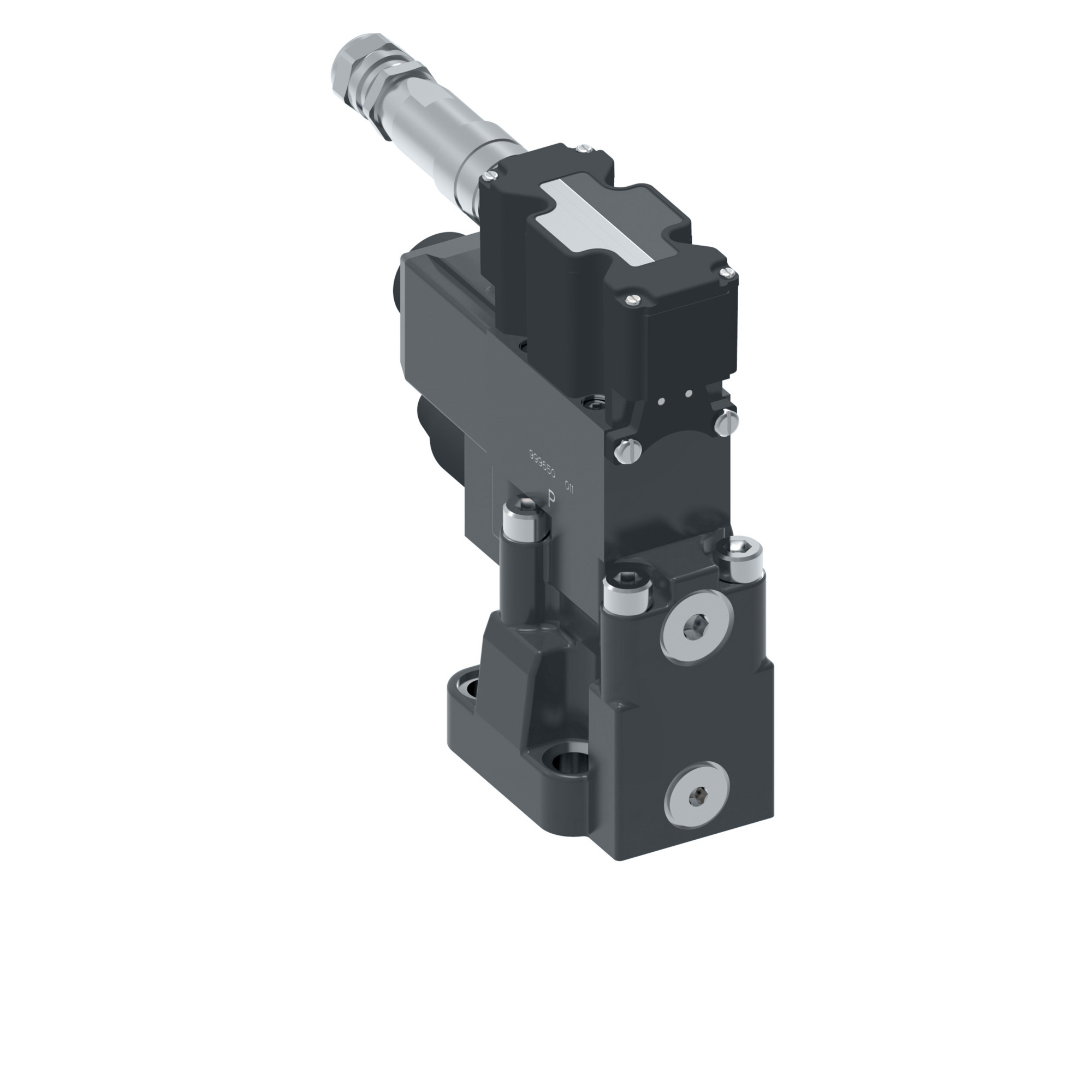

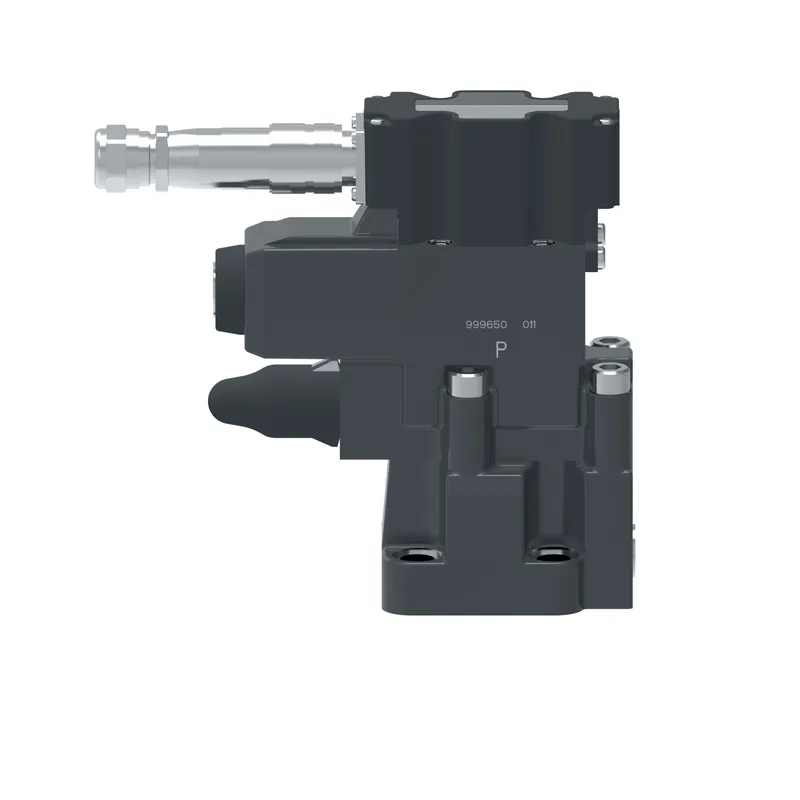

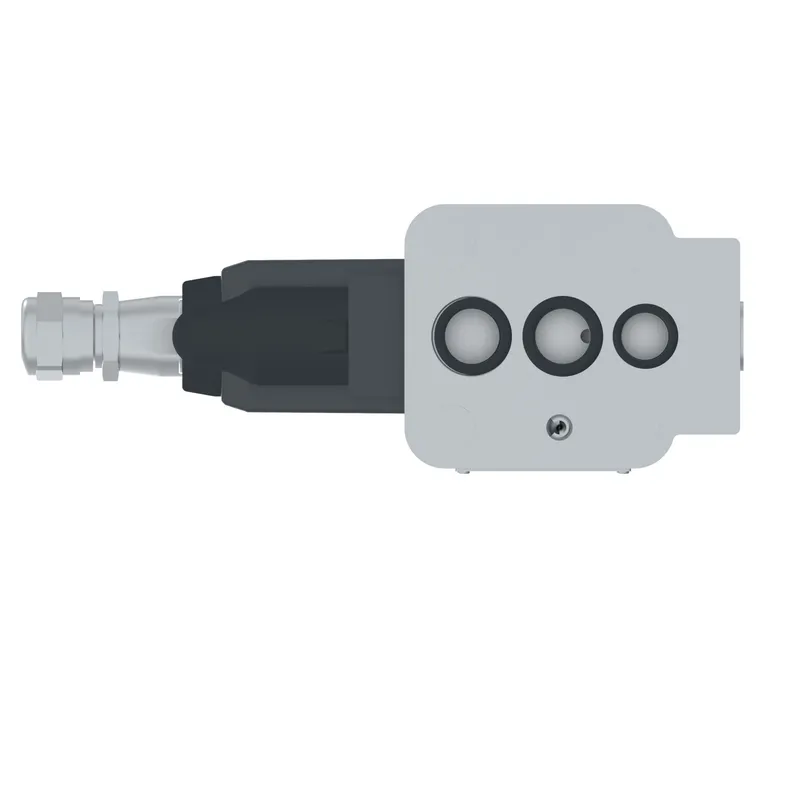

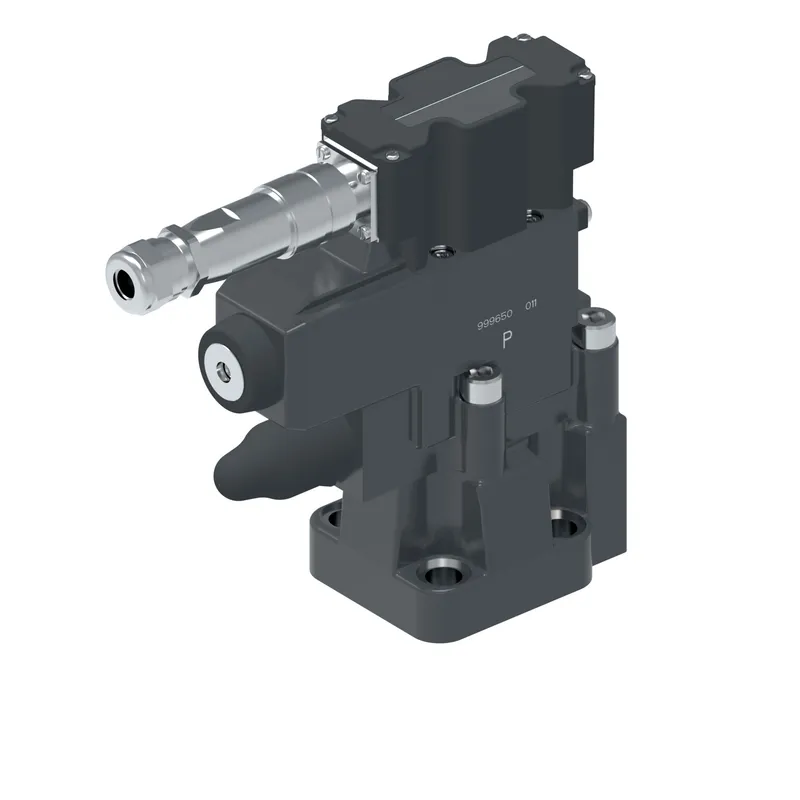

Danfoss 862AN00014A

KBCG-6-W160-1-Z-M1-3-A-PE7-H1-11, KBCG6W1601ZM13APE7H111

MPN: 862AN00014A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 862AN00014A?

Danfoss KBCG-6-W160-1-Z-M1-3-A-PE7-H1-11, KBCG6W1601ZM13APE7H111, manufacturer part number 862AN00014A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid controlled pilot operated
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	+/- 10V control signal
Communication protocol	None
Design Series	11 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO6264-AR-06-2-A
Manual adjustment	Screw and locknut
Manual override	None
Maximum flow LPM	200.0
Maximum flow USGPM	52.8
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KBCG6W1601ZM13APE7H111
On board electronics	Yes
Performance	High
Pressure range	8.5-160 bar (125-2300 psi)
Product height in	7.740
Product height mm	196.596
Product length in	8.120
Product length mm	206.248
Product width in	3.100
Product width mm	78.74
ProFX compatible	No
Ramp	Standard ramp
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Stage	Two stage
Symmetric flow	Yes
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional pressure relief
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
