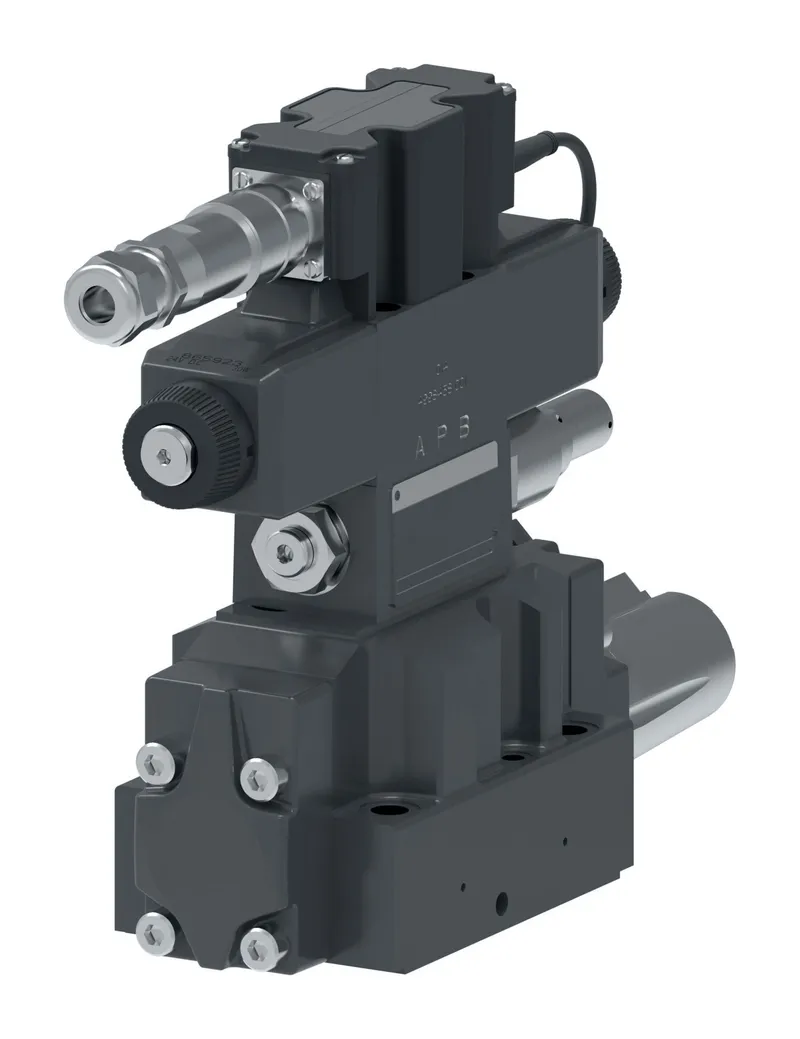

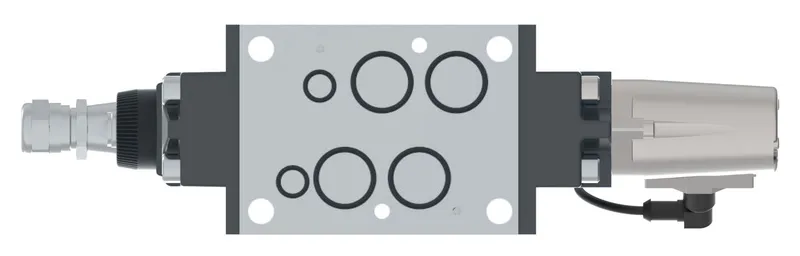

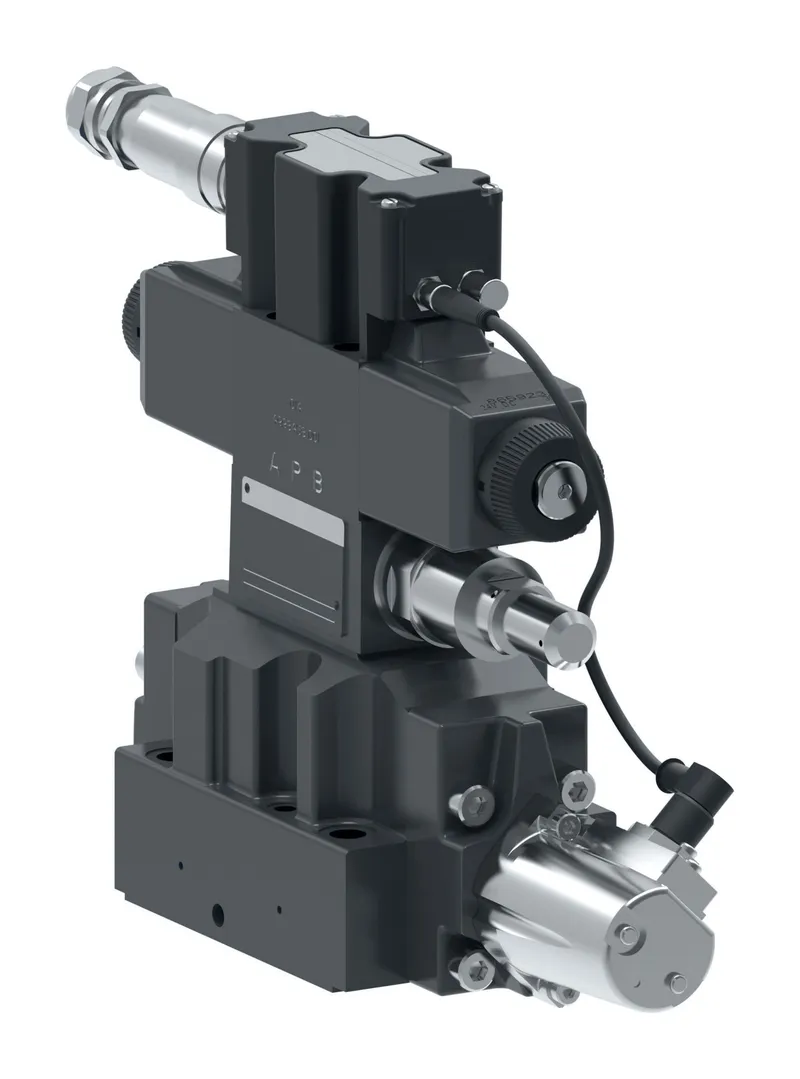

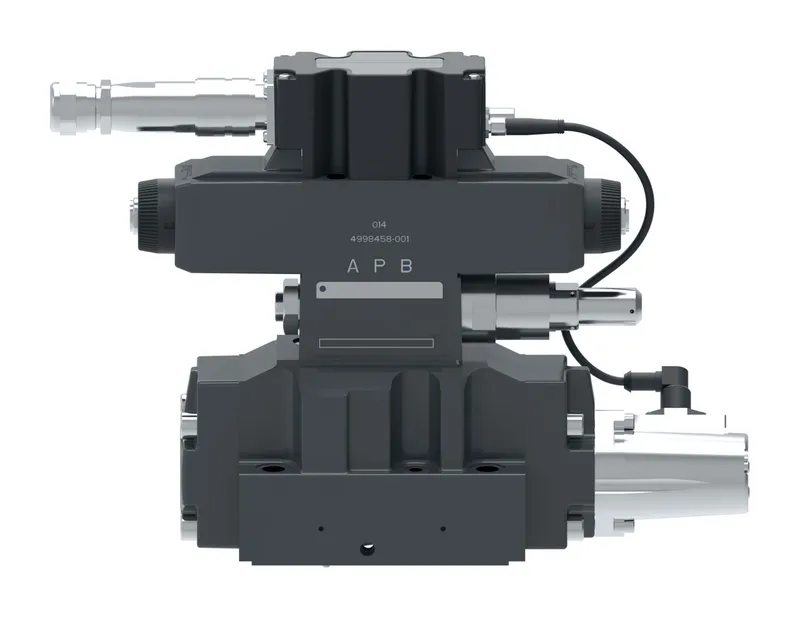

Danfoss 861AN00096A

KBFDG5V-7-33C160N-EX-M1-PE7-H1-20, KBFDG5V733C160NEXM1PE7H120

MPN: 861AN00096A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 861AN00096A?

Danfoss KBFDG5V-7-33C160N-EX-M1-PE7-H1-20, KBFDG5V733C160NEXM1PE7H120, manufacturer part number 861AN00096A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	160.00
A Port flow USGPM	42.30
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	160.00
B Port flow USGPM	42.30
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	+/-10V Command +/-10V feedback
Communication protocol	None
Design Series	20 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-07/NFPA D07/CETOP 7/NG16
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter in / meter out
Model Code 1	KBFDG5V733C160NEXM1PE7H120
On board electronics	Yes
Performance	High
Pilot drain	External
Pilot supply	External
Product height in	9.280
Product height mm	235.712
Product length in	13.010
Product length mm	330.454
Product width in	3.620
Product width mm	91.948
ProFX compatible	No
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	P blocked, A & B to tank
Stage	Two stage
Symmetric flow	Yes
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
