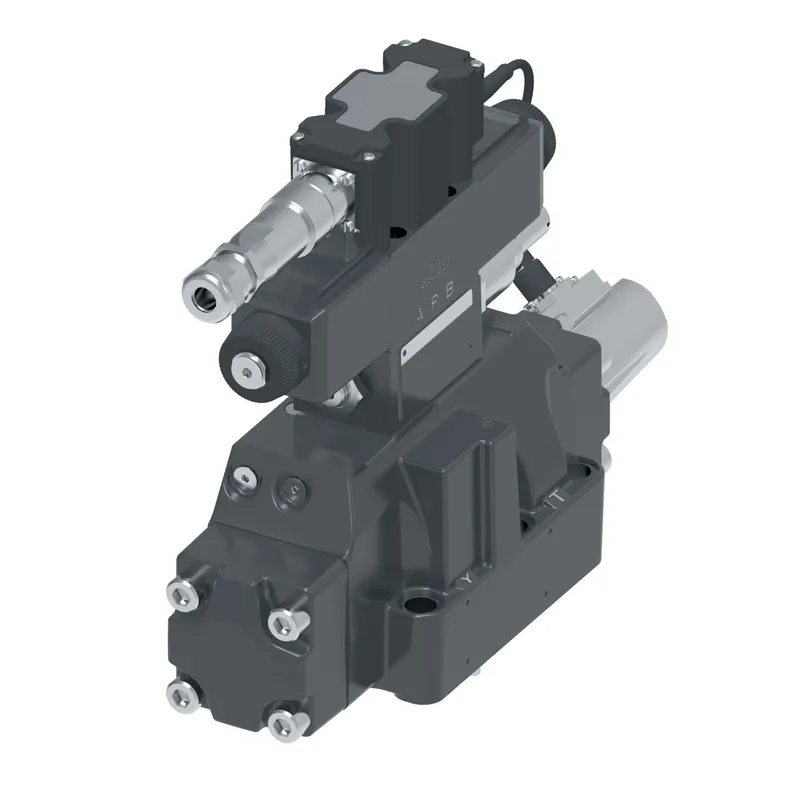

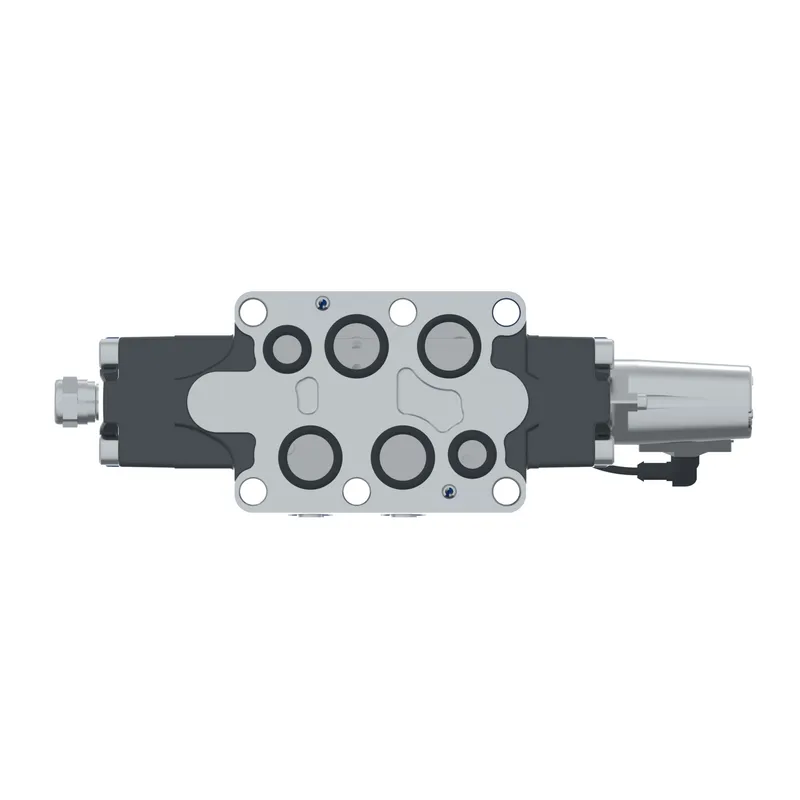

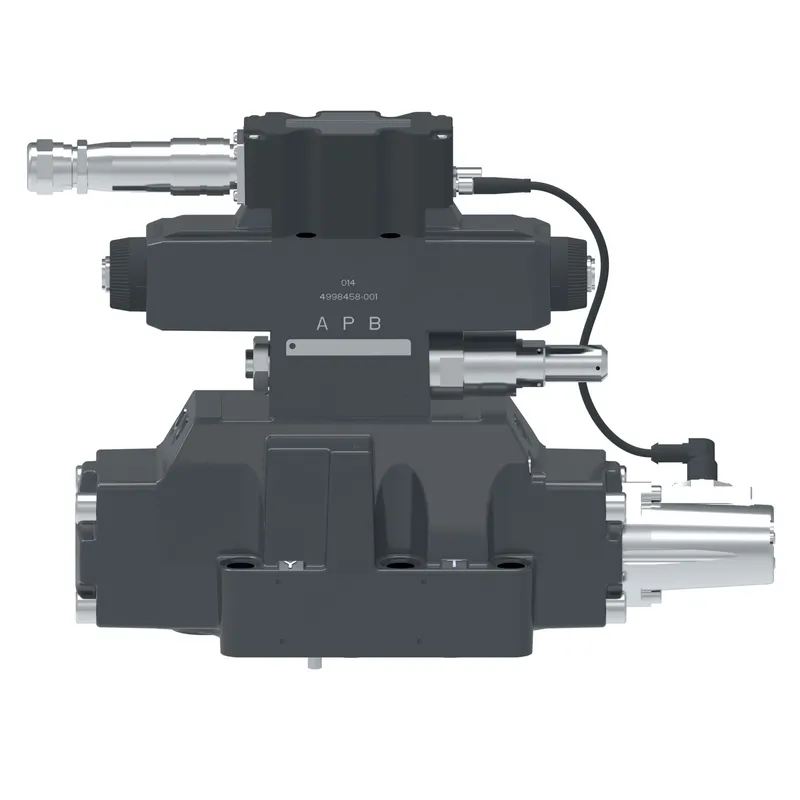

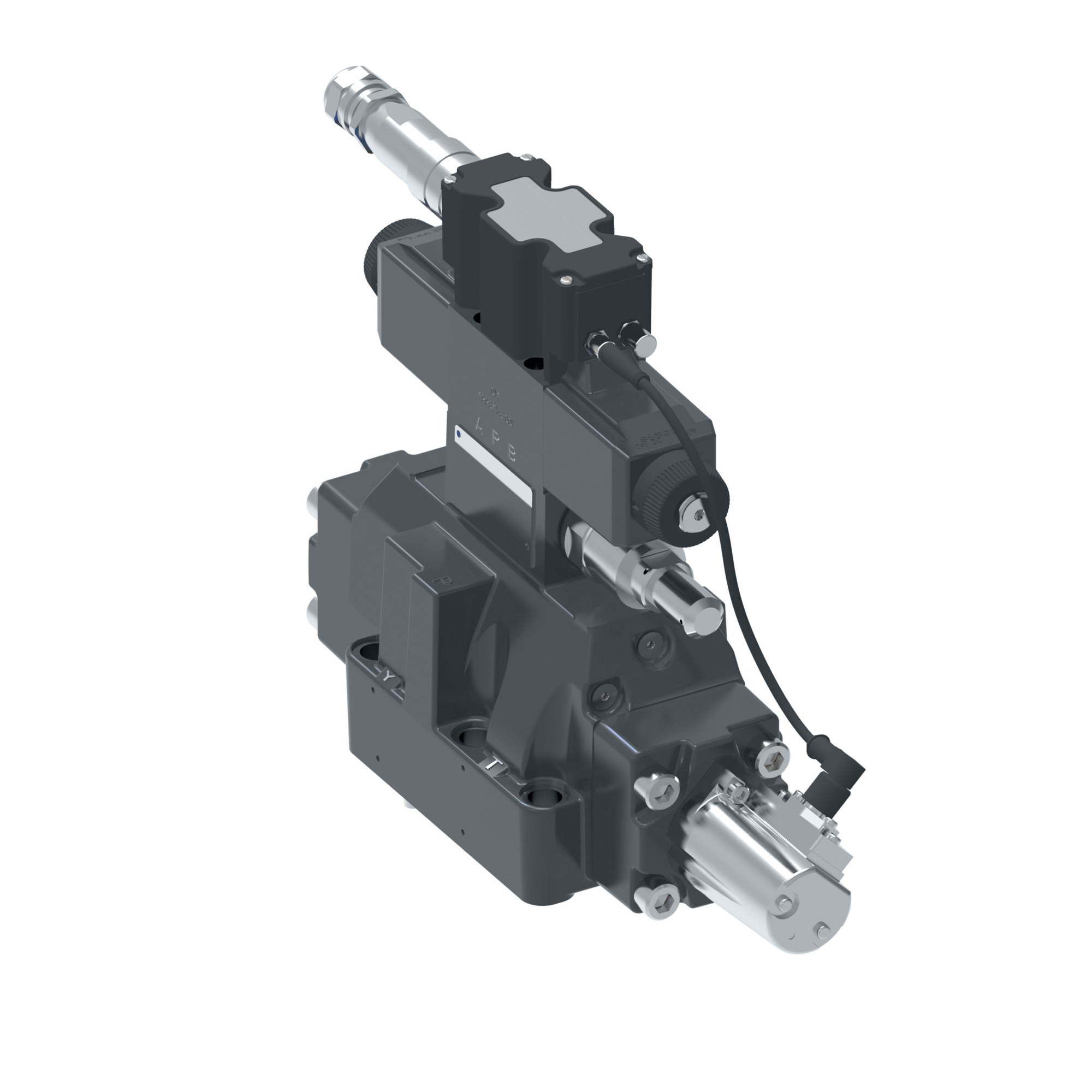

Danfoss 861AN00028A

KBFDG5V-8-33C375N-EX-M2-PE7-H1-11, KBFDG5V833C375NEXM2PE7H111

MPN: 861AN00028A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 861AN00028A?

Danfoss KBFDG5V-8-33C375N-EX-M2-PE7-H1-11, KBFDG5V833C375NEXM2PE7H111, manufacturer part number 861AN00028A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	375.00
A Port flow USGPM	99.00
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	375.00
B Port flow USGPM	99.00
Brand	Vickers by Danfoss
Build orientation	Solenoid 'B' at port 'A' end of valve and solenoid 'A' at port 'B' end of valve
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	4-20mA Command +/-10V feedback
Communication protocol	None
Current	1.6 amp
Design Series	11 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-08/NFPA D08/CETOP 8/NG25
Manual override	None
Metering	Meter in / meter out
Model Code 1	KBFDG5V833C375NEXM2PE7H111
On board electronics	Yes
Performance	High
Pilot drain	External
Pilot supply	External
Pressure drop rated flow BAR	5
Pressure drop rated flow PSI	72
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	9.930
Product height mm	252.222
Product length in	14.170
Product length mm	359.918
Product width in	4.150
Product width mm	105.41
ProFX compatible	No
Reducer module	Yes
Seal type	Fluorocarbon
Special features	None
Spool Type	Bleed A and B to T
Stage	Two stage
Symmetric flow	Yes
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
