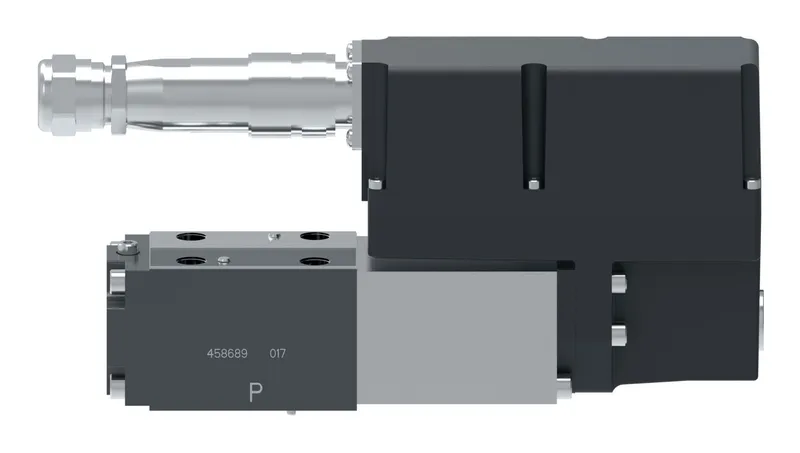

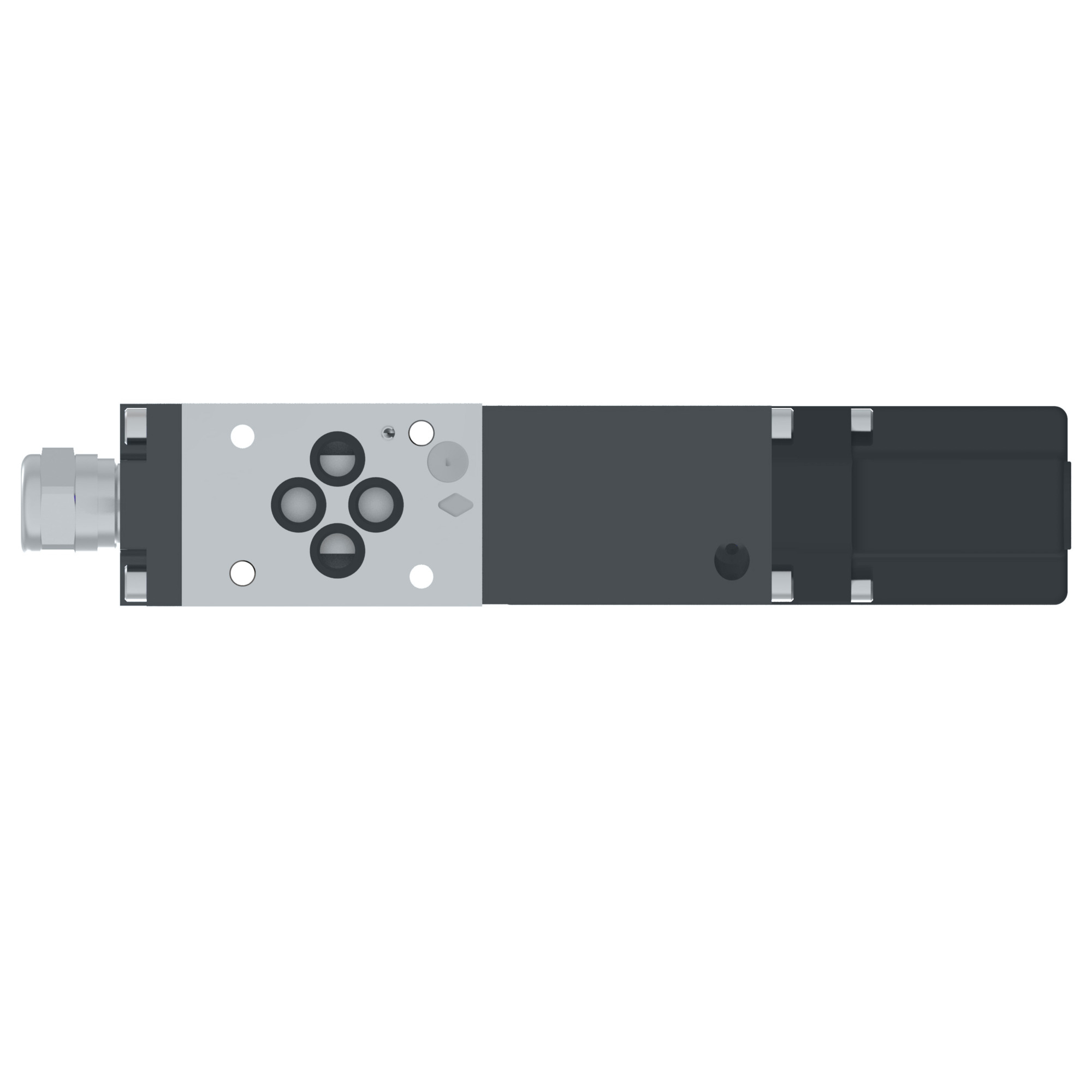

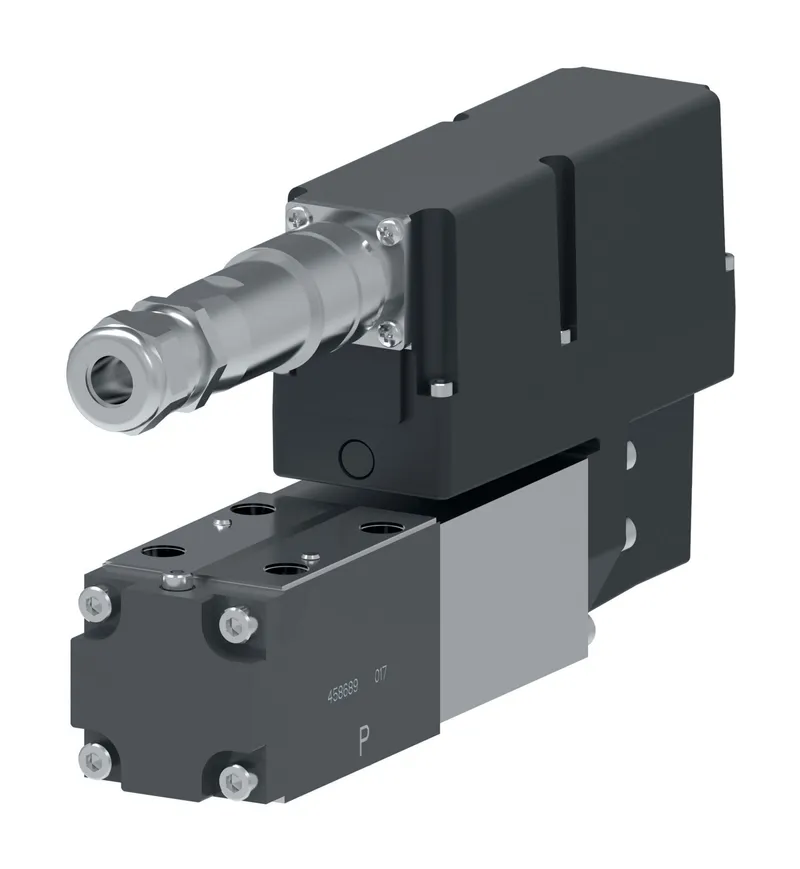

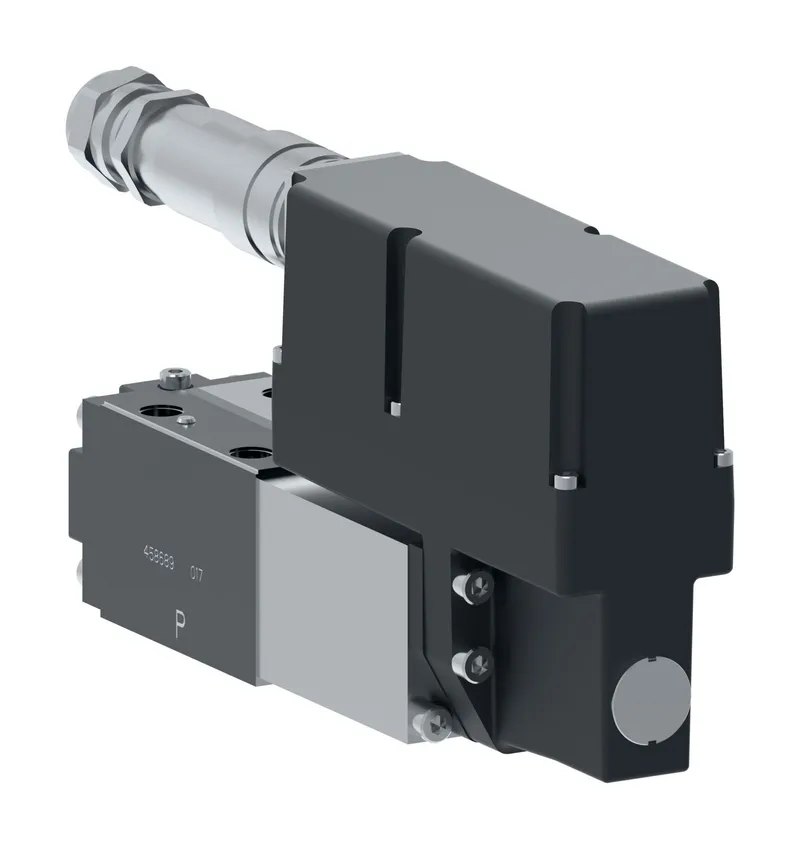

Danfoss 859AN00013A

KBSDG4V-3-92L-12N-M1-PH7-H7-12, KBSDG4V392L12NM1PH7H712

MPN: 859AN00013A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 859AN00013A?

Danfoss KBSDG4V-3-92L-12N-M1-PH7-H7-12, KBSDG4V392L12NM1PH7H712, manufacturer part number 859AN00013A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid controlled
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	+/-10V Command +/-10V feedback
Communication protocol	None
Design Series	12 Series
Electrical Connection	Electrical (PH7) as PE7 but with pin C used for enable signal
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KBSDG4V392L12NM1PH7H712
On board electronics	Yes
Performance	Servo
Product height in	4.570
Product height mm	116.078
Product length in	8.930
Product length mm	226.822
Product width in	1.890
Product width mm	48.006
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	Ports P, A & T blocked
Stage	Single stage
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
