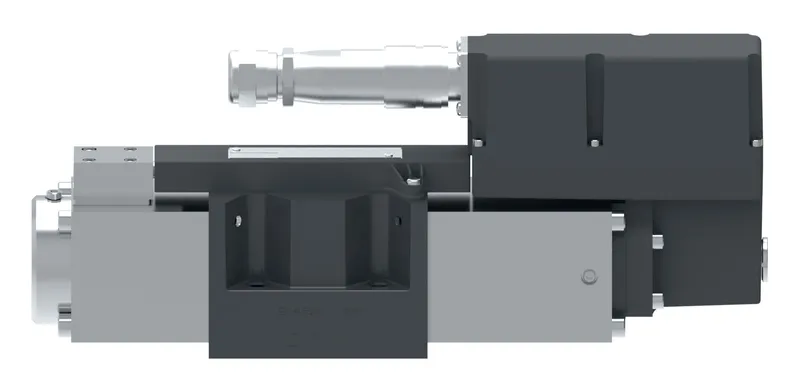

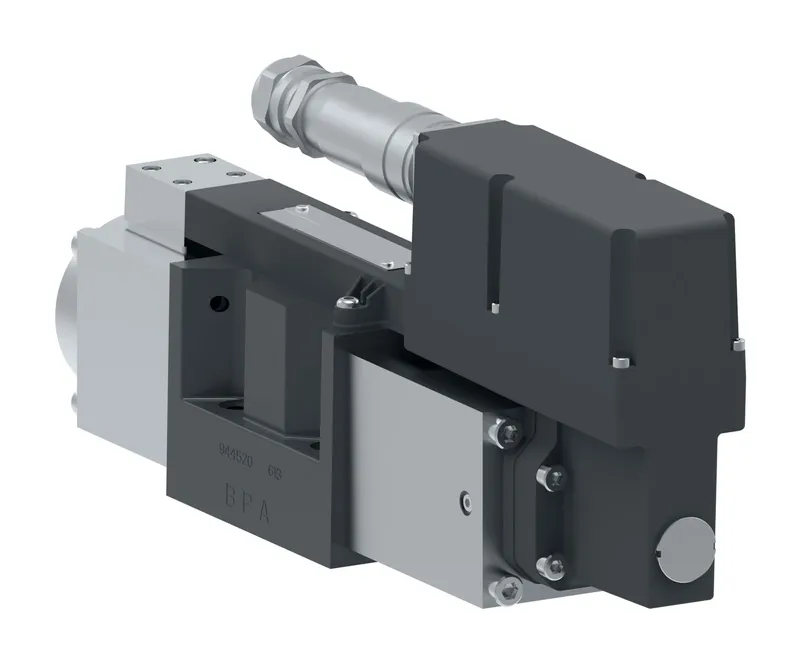

Danfoss 858AN00136A

KBFDG4V-5-9C50N-Z-M1-PH7-H7-12, KBFDG4V59C50NZM1PH712

MPN
858AN00136A
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 858AN00136A?

Danfoss KBFDG4V-5-9C50N-Z-M1-PH7-H7-12, KBFDG4V59C50NZM1PH712, manufacturer part number 858AN00136A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM50.00
A Port flow USGPM13.20
Actuation TypeSolenoid controlled
B Port flow LPM50.00
B Port flow USGPM13.20
BrandVickers by Danfoss
Build orientationSolenoid 'B' at port 'A' end of valve and solenoid 'A' at port 'B' end of valve
Build typeSpring centered
Coil voltage24 Volt DC
Command input+/-10V Command +/- 10V feedback
Communication protocolNone
Current2.7 amp
Design Series12 Series
Electrical ConnectionElectrical (PH7) as PE7 but with pin C used for enable signal
Feedback sensorYes
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-05/NFPA D05/CETOP 5/NG10
Manual overrideNo override
MeteringMeter in / meter out
Model Code 1KBFDG4V59C50NZM1PH712
On board electronicsYes
PerformanceHigh
Pressure drop rated flow BAR5
Pressure drop rated flow PSI72
Pressure rating BAR315
Pressure rating PSI4500
Product height in5.310
Product height mm134.874
Product length in12.910
Product length mm327.914
Product width in2.760
Product width mm70.104
ProFX compatibleNo
Reducer moduleNo
Seal typeFluorocarbon
Special featuresNone
Spool TypeClosed centre (all ports)
StageSingle stage
Symmetric flowYes
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C85
Working temp max F185
Working temp min C-40
Working temp min F-40
