What is the Danfoss 858AN00048A?

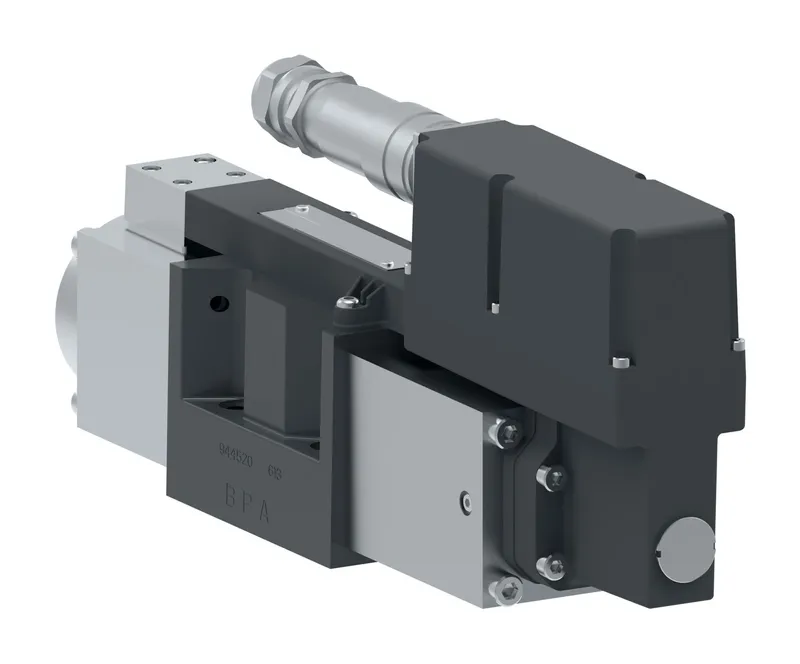

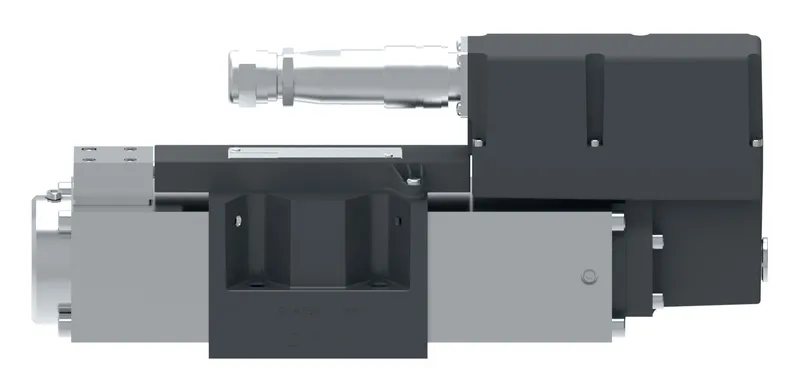

Danfoss KBFDG4V-5-2C75N45-Z-M1-PC7-H7-12-EN135, KBFDG4V52C75N45ZM1PC7H712EN135, manufacturer part number 858AN00048A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM75.00
A Port flow USGPM19.80
Actuation TypeSolenoid controlled
B Port flow LPM45.00
B Port flow USGPM11.90
BrandVickers by Danfoss
Build orientationSolenoid 'B' at port 'A' end of valve and solenoid 'A' at port 'B' end of valve
Build typeSpring centered
Coil voltage24 Volt DC
Command input+/-10V Command +/- 10V feedback
Communication protocolNone
Current2.7 amp
Design Series12 Series
Electrical ConnectionElectrical (PC7) 7 pin connector without plug
Feedback sensorYes
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-05/NFPA D05/CETOP 5/NG10
Manual overrideNo override
MeteringMeter in / meter out
Model Code 1KBFDG4V52C75N45ZM1PC7H712EN135
On board electronicsYes
PerformanceHigh
Pressure drop rated flow BAR5
Pressure drop rated flow PSI72
Pressure rating BAR315
Pressure rating PSI4500
Product height in5.310
Product height mm134.874
Product length in12.910
Product length mm327.914
Product width in2.760
Product width mm70.104
ProFX compatibleNo
Reducer moduleNo
Seal typeFluorocarbon
Spool TypeISO4401-10/NFPA D10/CETOP 10/NG32
StageSingle stage
Symmetric flowNo
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C85
Working temp max F185
Working temp min C-40
Working temp min F-40
