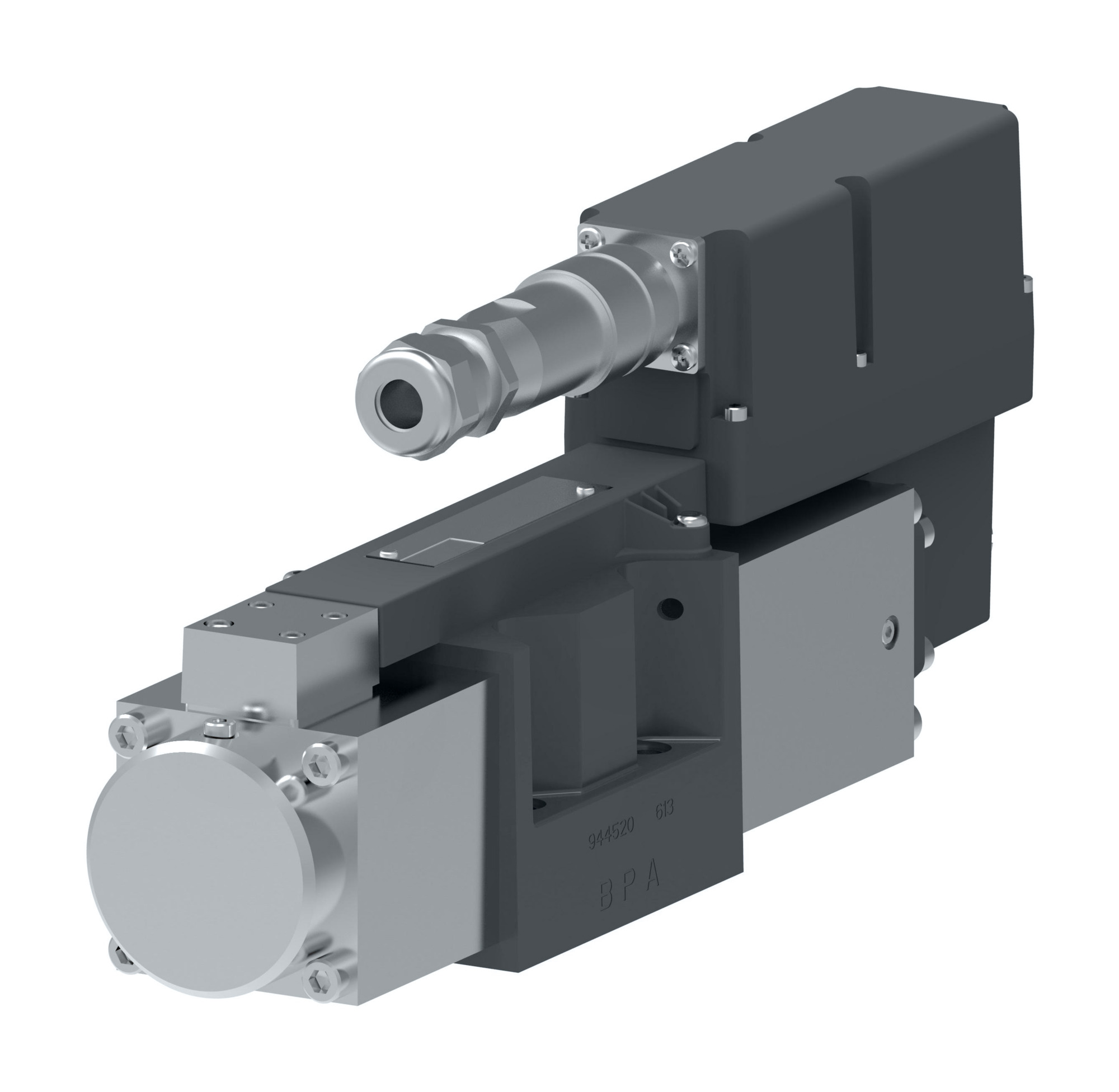

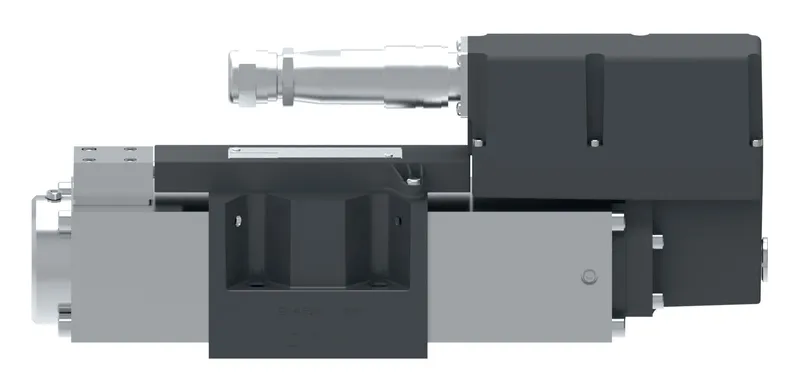

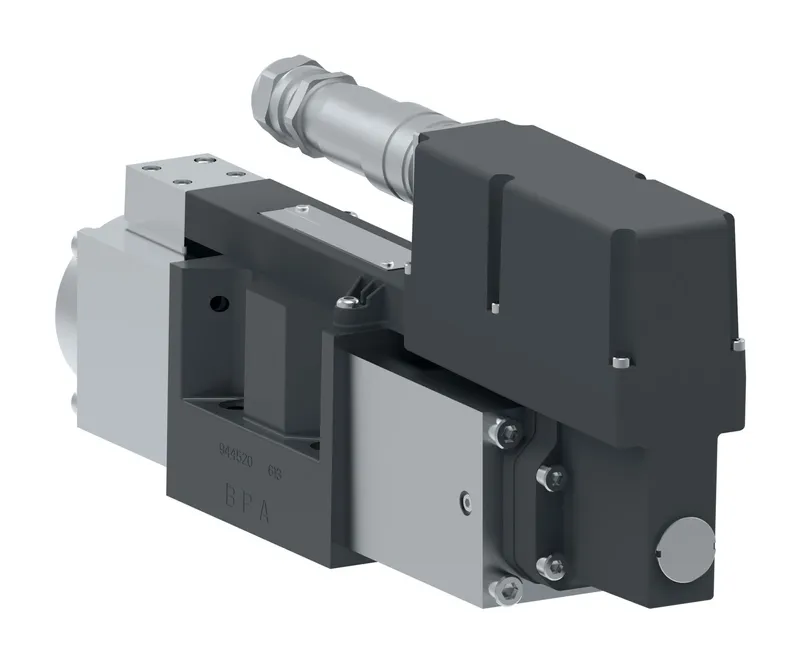

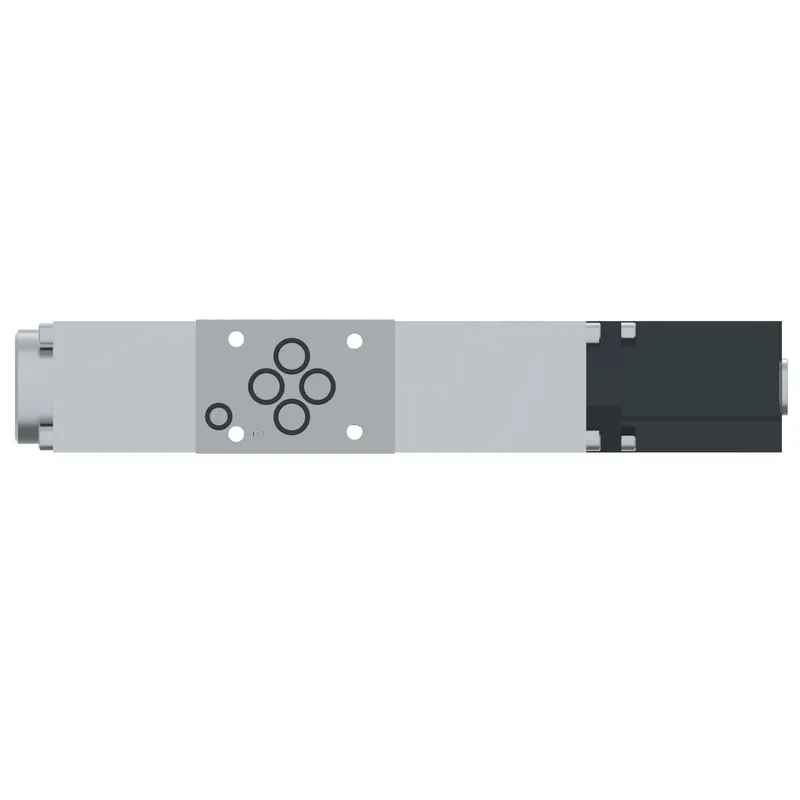

Danfoss 858AN00007A

KBFDG4V-5-33C50N-Z-M1-PE7-H7-12, KBFDG4V533C50NZM1PE7H712

MPN: 858AN00007A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 858AN00007A?

Danfoss KBFDG4V-5-33C50N-Z-M1-PE7-H7-12, KBFDG4V533C50NZM1PE7H712, manufacturer part number 858AN00007A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	50.00
A Port flow USGPM	13.20
Actuation Type	Solenoid controlled
B Port flow LPM	50.00
B Port flow USGPM	13.20
Brand	Vickers by Danfoss
Build orientation	Solenoid 'B' at port 'A' end of valve and solenoid 'A' at port 'B' end of valve
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	+/-10V Command +/- 10V feedback
Communication protocol	None
Current	2.7 amp
Design Series	12 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-05/NFPA D05/CETOP 5/NG10
Manual override	No override
Metering	Meter in / meter out
Model Code 1	KBFDG4V533C50NZM1PE7H712
On board electronics	Yes
Performance	High
Pressure drop rated flow BAR	5
Pressure drop rated flow PSI	72
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	5.310
Product height mm	134.874
Product length in	12.910
Product length mm	327.914
Product width in	2.760
Product width mm	70.104
ProFX compatible	No
Reducer module	No
Seal type	Fluorocarbon
Special features	None
Spool Type	P port blocked, A, B, T connected
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	85
Working temp max F	185
Working temp min C	-40
Working temp min F	-40
