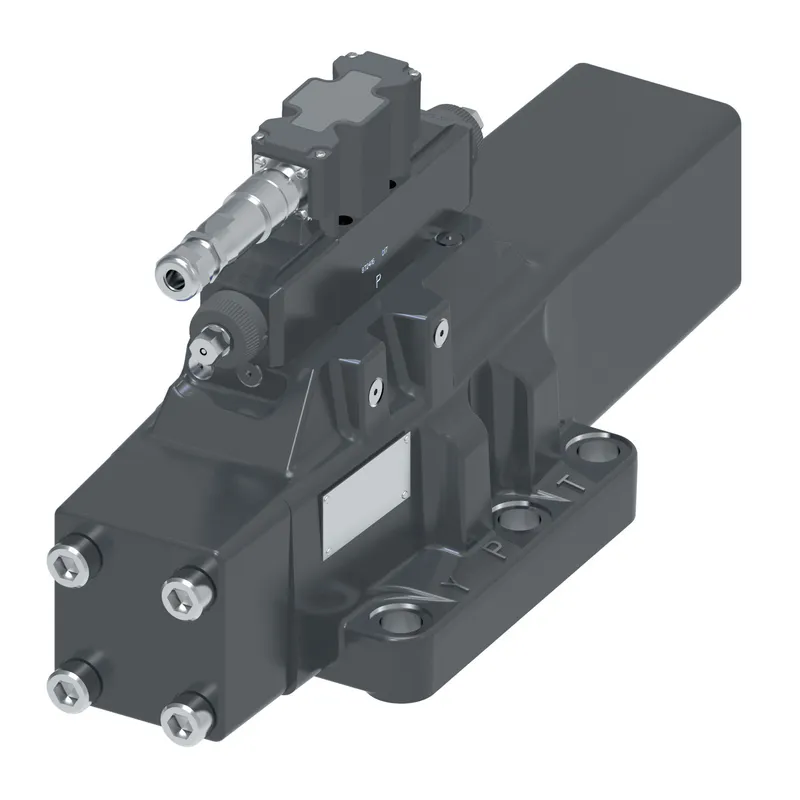

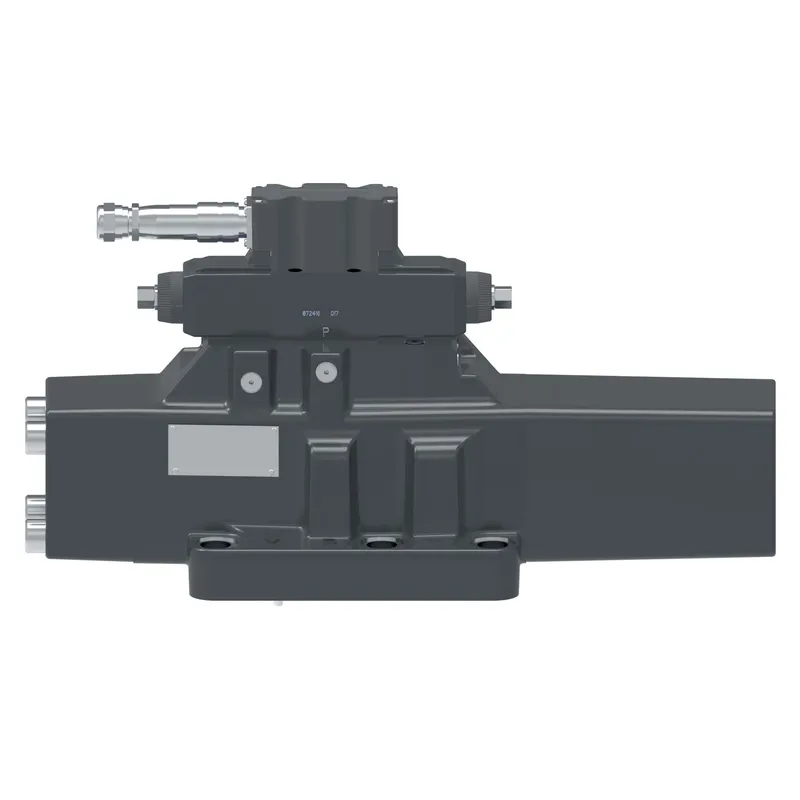

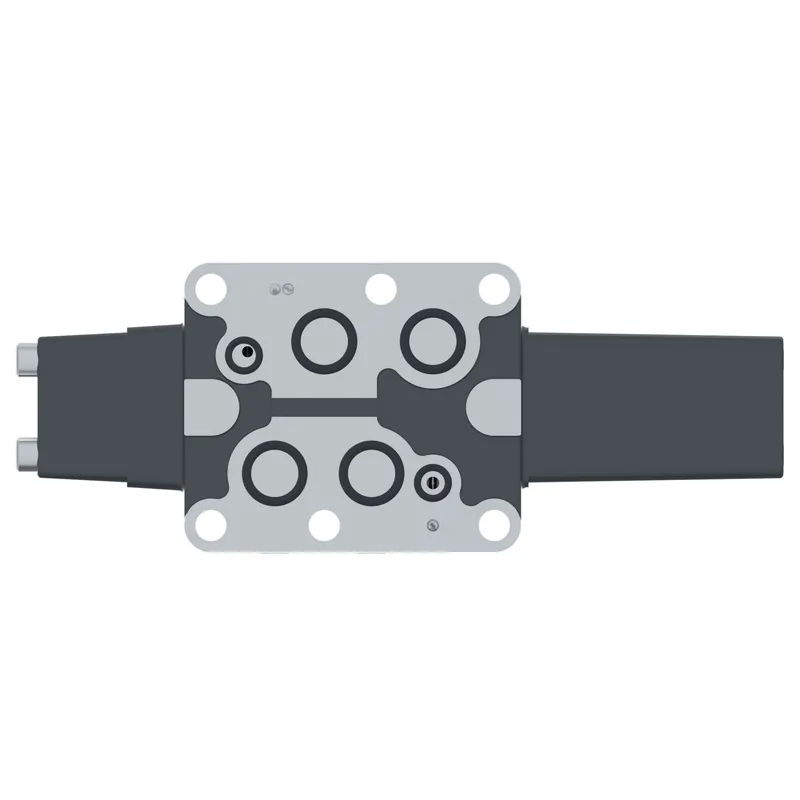

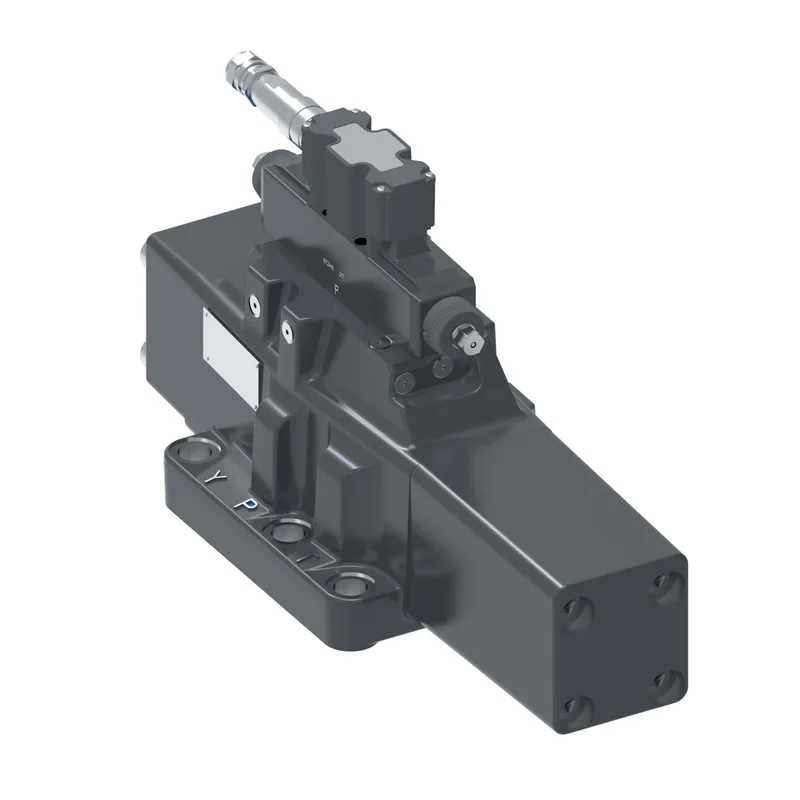

Danfoss 857AN00102K

KBDG5V-10-2C550N-M1-PE7- H1-12, KBDG5V102C550NM1PE7 H112

MPN
857AN00102K
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 857AN00102K?

Danfoss KBDG5V-10-2C550N-M1-PE7- H1-12, KBDG5V102C550NM1PE7 H112, manufacturer part number 857AN00102K. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM550.00
A Port flow USGPM145.00
Actuation TypeSolenoid controlled pilot operated
B Port flow LPM550.00
B Port flow USGPM145.00
BrandVickers by Danfoss
Build orientationStandard as per ANSI B93 9
Build typeSpring centered
Coil voltage24 Volt DC
Command input+/- 10V control signal
Communication protocolNone
Design Series12 Series
Electrical ConnectionElectrical (PE7) 7 pin electrical plug with mating half
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-10/NFPA D10/CETOP 10
Manual overridePlain
Maximum pressure BAR40
Maximum pressure PSI580
MeteringMeter in / meter out
Model Code 1KBDG5V102C550NM1PE7 H112
On board electronicsYes
PerformanceStandard
Pilot drainExternal
Pilot supplyInternal
Product height in11.570
Product height mm293.878
Product length in20.350
Product length mm516.890
Product width in7.750
Product width mm196.85
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresNone
Spool TypeISO4401-10/NFPA D10/CETOP 10/NG32
StageTwo stage
Symmetric flowYes
Tank port rating BAR350
Tank port rating PSI5000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

857AN00102K: frequently asked questions

When can 857AN00102K be shipped?

857AN00102K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 857AN00102K in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 857AN00102K and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 857AN00102K, subject to availability and destination.
