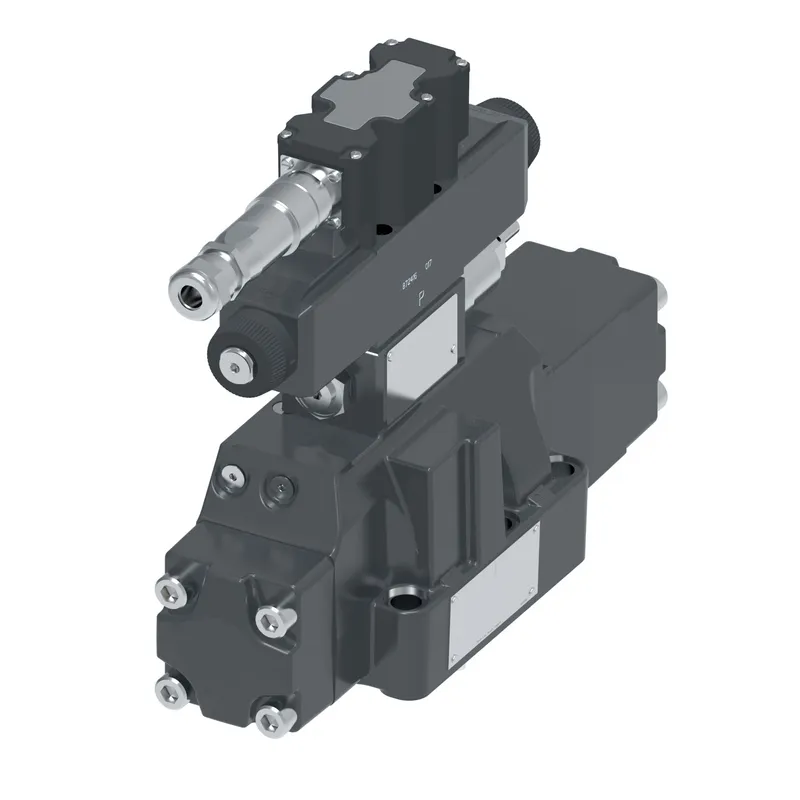

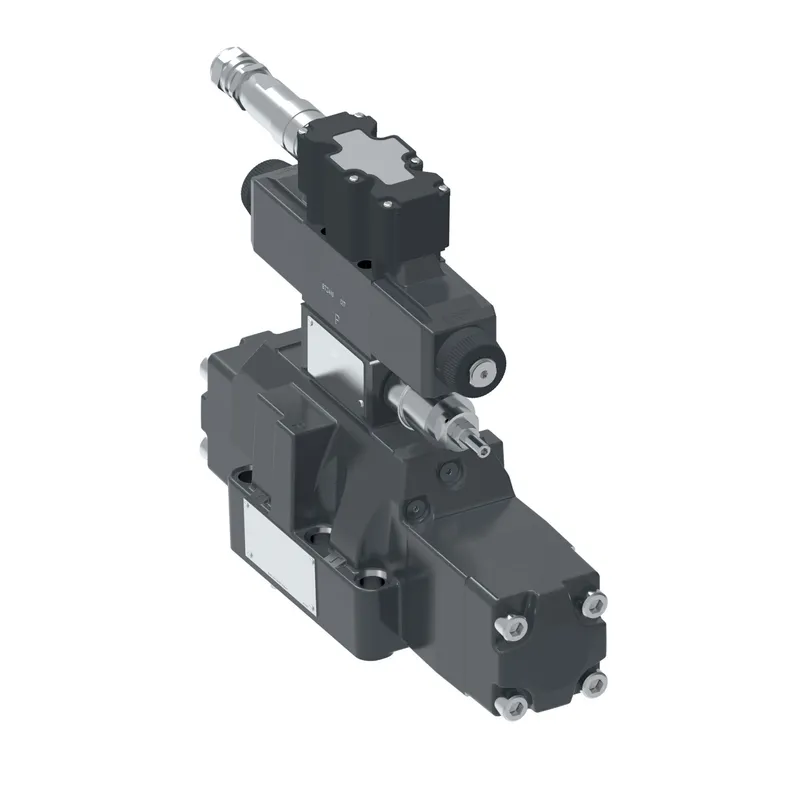

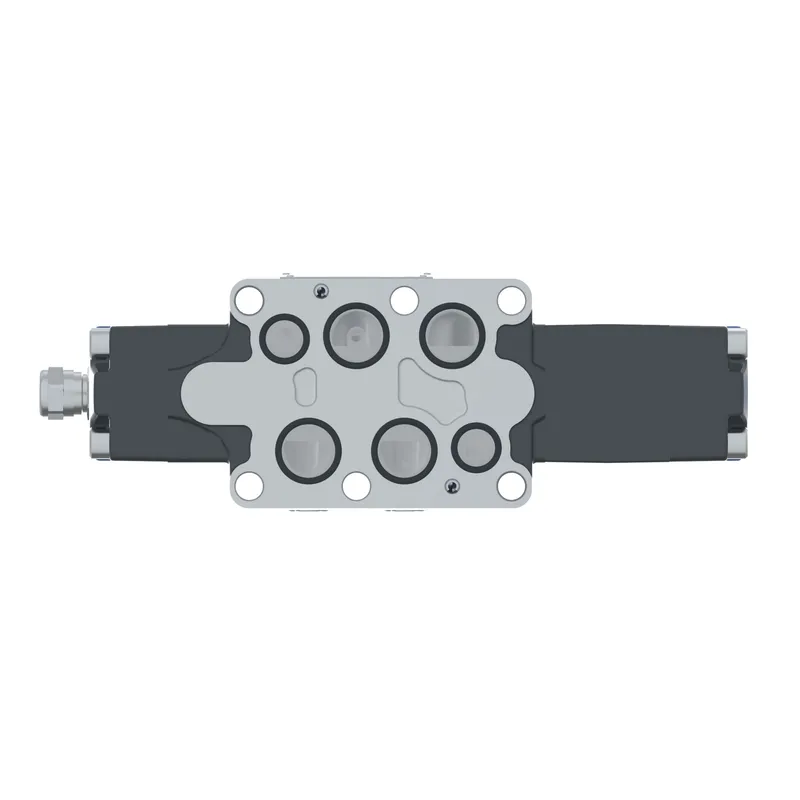

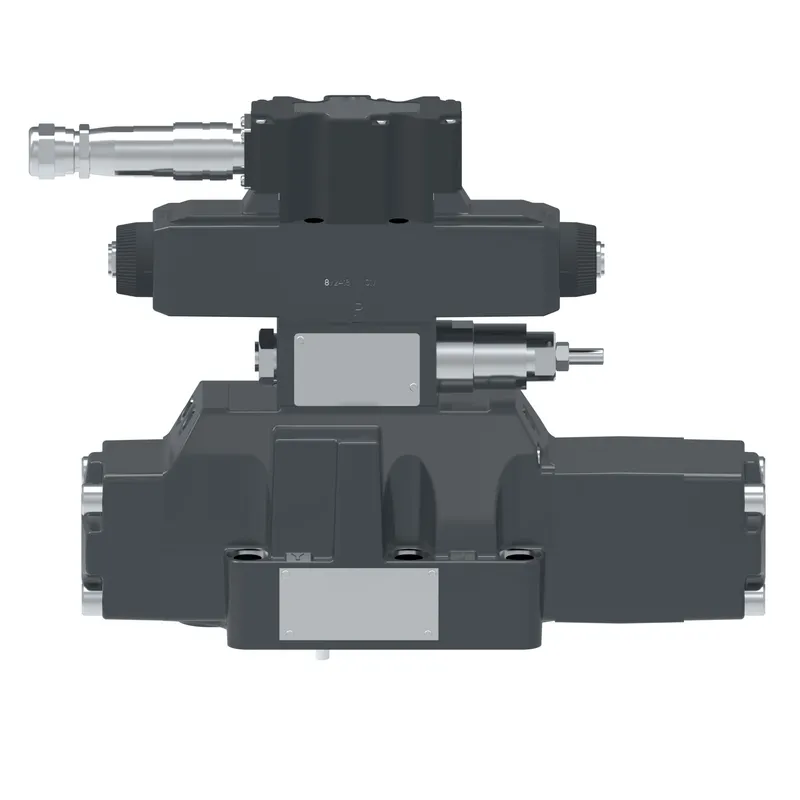

Danfoss 857AN00002A

KBDG5V-8-33C330N200-X-T-M2-PE7-H1-11, KBDG5V833C330N200XTM2PE7H111

MPN: 857AN00002A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 857AN00002A?

Danfoss KBDG5V-8-33C330N200-X-T-M2-PE7-H1-11, KBDG5V833C330N200XTM2PE7H111, manufacturer part number 857AN00002A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	330.00
A Port flow USGPM	88.00
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	200.00
B Port flow USGPM	52.00
Brand	Vickers by Danfoss
Build orientation	Solenoid 'B' at port 'A' end of valve and solenoid 'A' at port 'B' end of valve
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	4-20mA Control signal
Communication protocol	None
Current	1.6 amp
Design Series	11 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-08/NFPA D08/CETOP 8/NG25
Manual override	Plain
Metering	Meter in / meter out
Model Code 1	KBDG5V833C330N200XTM2PE7H111
On board electronics	Yes
Performance	Standard
Pilot drain	Internal
Pilot supply	Internal
Pressure drop rated flow BAR	5
Pressure drop rated flow PSI	72
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	10.130
Product height mm	257.302
Product length in	13.860
Product length mm	352.044
Product width in	4.600
Product width mm	116.84
ProFX compatible	No
Reducer module	Yes
Seal type	Fluorocarbon
Special features	None
Spool Type	P blocked, A & B to tank
Stage	Two stage
Symmetric flow	No
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
