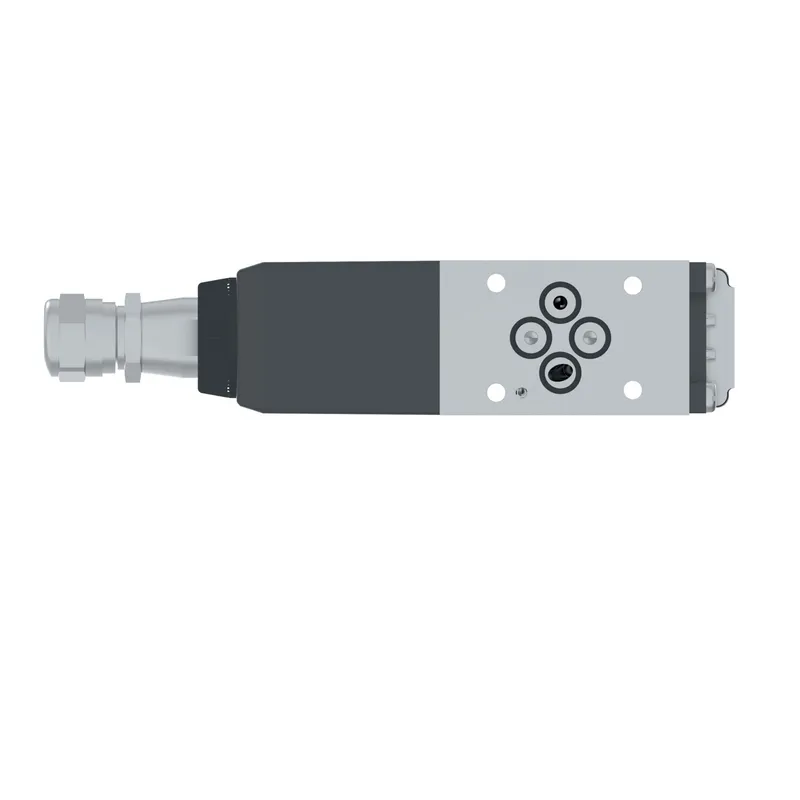

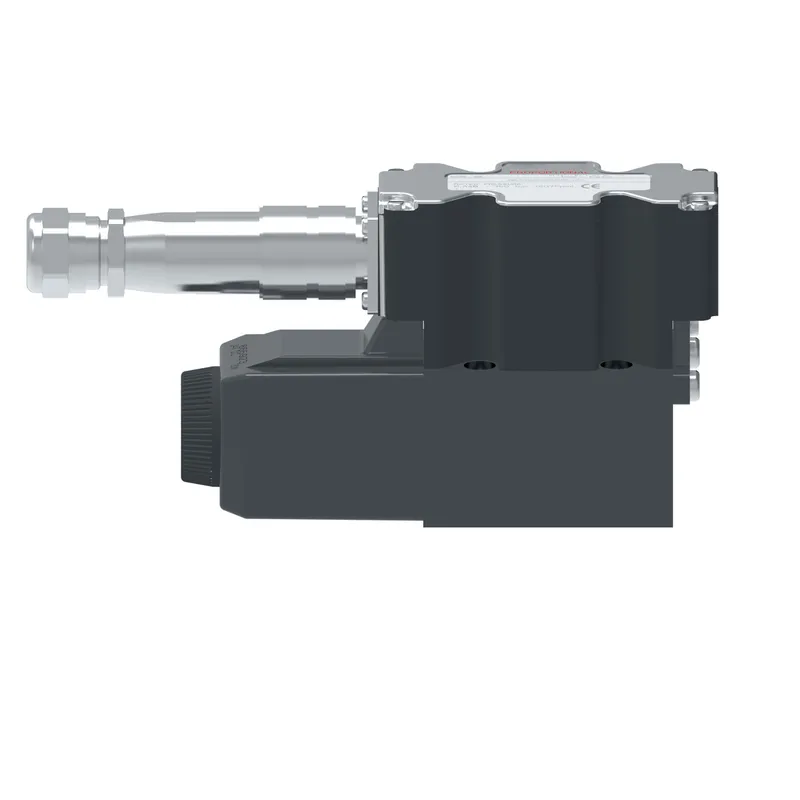

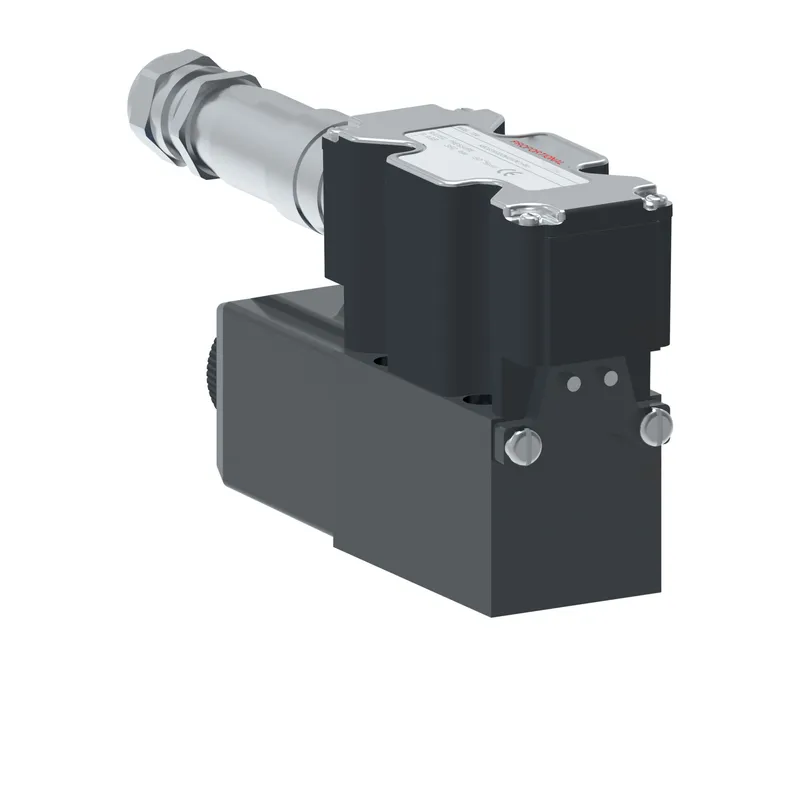

Danfoss 856AN00073A

KBCG-3-L100D-Z-M2-3-A-PE7-H1-11, KBCG3L100DZM23APE7H111

MPN: 856AN00073A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 856AN00073A?

Danfoss KBCG-3-L100D-Z-M2-3-A-PE7-H1-11, KBCG3L100DZM23APE7H111, manufacturer part number 856AN00073A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid controlled
Brand	Vickers by Danfoss
Build orientation	Left hand
Build type	Left hand
Coil voltage	24 Volt DC
Command input	4-20mA Control signal
Communication protocol	None
Design Series	11 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	None
Maximum flow LPM	5.0
Maximum flow USGPM	1.3
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KBCG3L100DZM23APE7H111
On board electronics	Yes
Performance	High
Pressure range	3-100 bar (44-1450 psi)
Product height in	3.940
Product height mm	100.076
Product length in	7.280
Product length mm	184.912
Product width in	1.810
Product width mm	45.974
ProFX compatible	No
Ramp	Long ramp (typically 80 ms)
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	None
Stage	Single stage
Symmetric flow	Yes
Valve Mount Type	Subplate
Valve type	Proportional pressure relief
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
