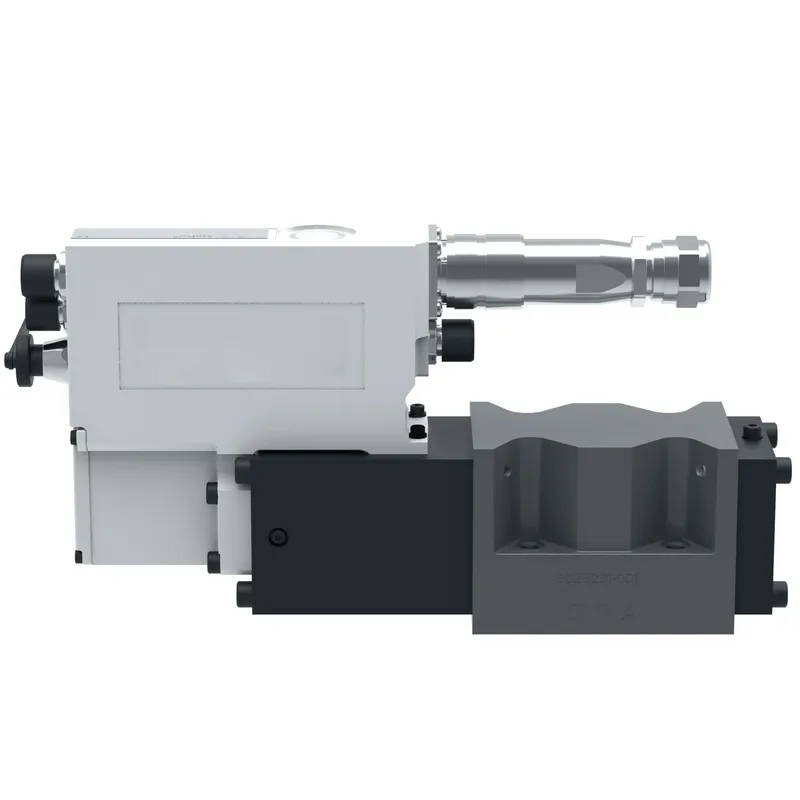

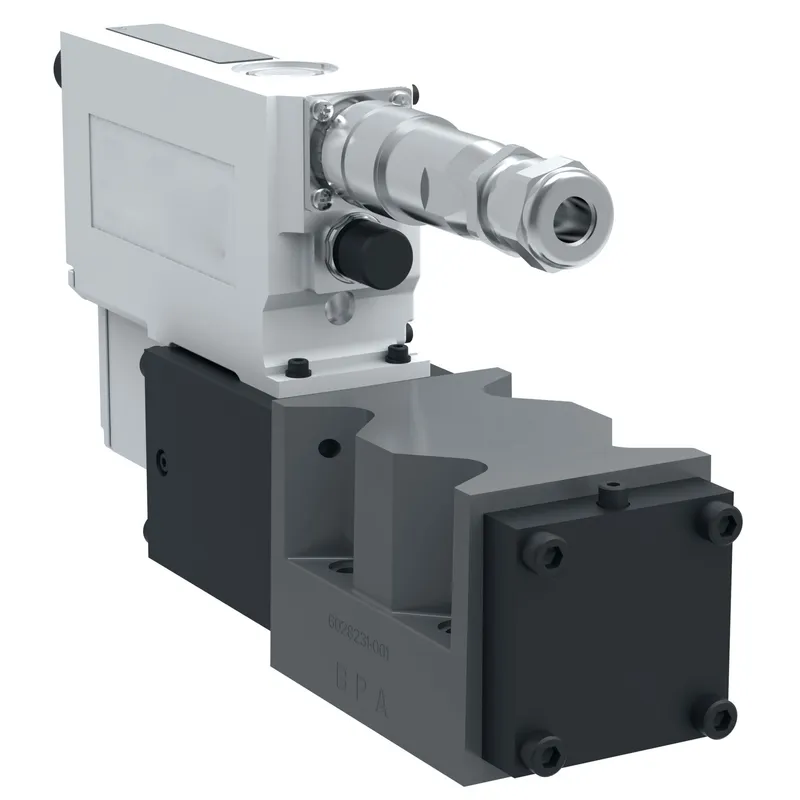

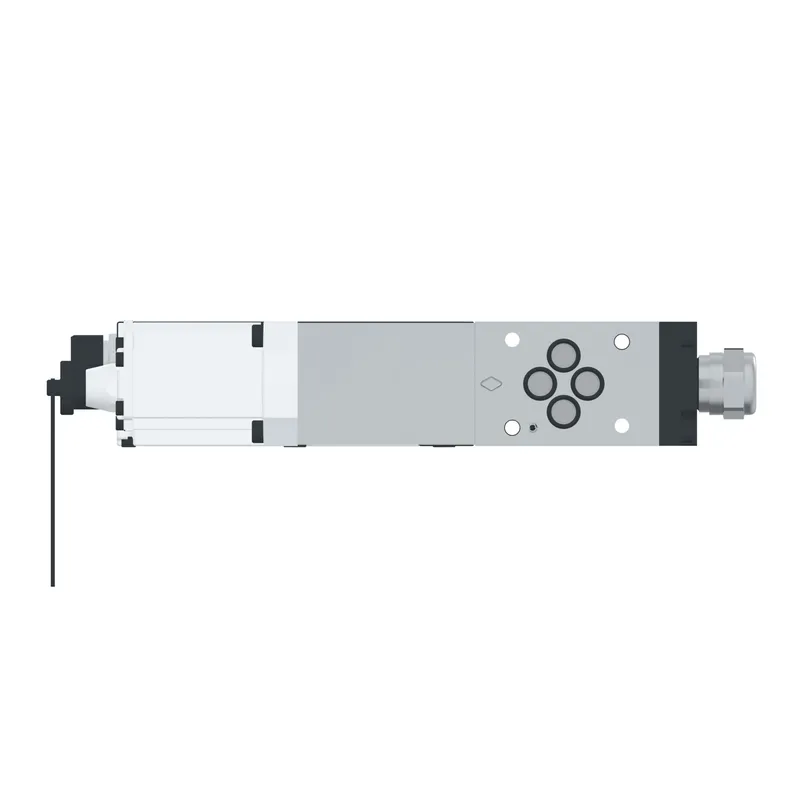

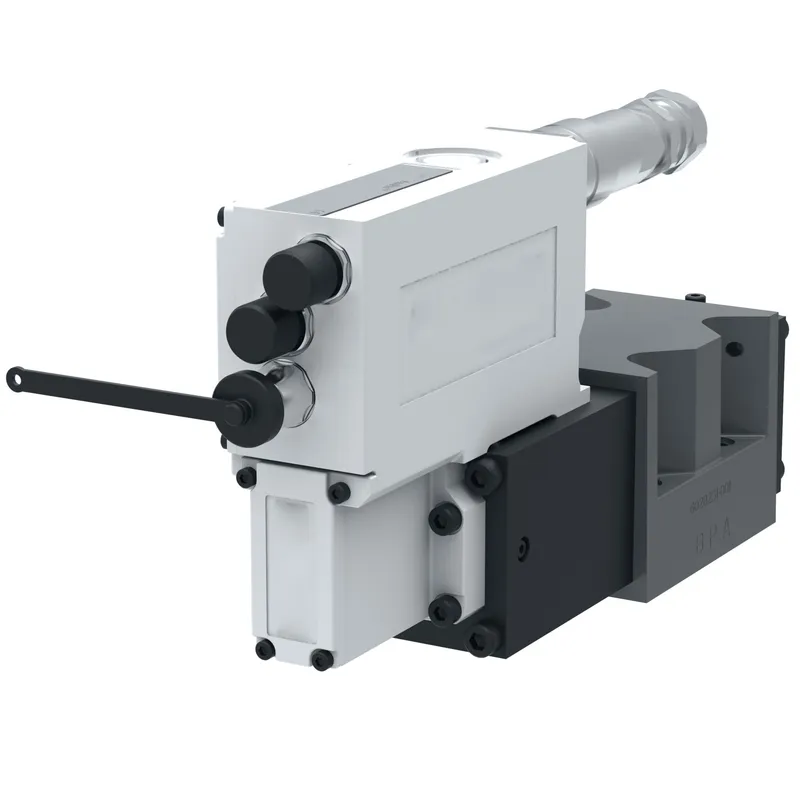

Danfoss 852AN00125B

KBS2-05-05-NS-11-E-CO-D-NS-VSC-NS-002-10, KBS20505NS11ECODNSVSCNS00210

MPN: 852AN00125B
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 852AN00125B?

Danfoss KBS2-05-05-NS-11-E-CO-D-NS-VSC-NS-002-10, KBS20505NS11ECODNSVSCNS00210, manufacturer part number 852AN00125B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	100.00
A Port flow USGPM	26.60
Actuation Type	Solenoid controlled
B Port flow LPM	100.00
B Port flow USGPM	26.60
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port side
Coil voltage	24 Volt DC
Command input	+/-10V Command +/-10V feedback
Communication protocol	CANopen
Current	3.7 amp
Design Series	10 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-05/NFPA D05/CETOP 5/NG10
Manual override	None
Model Code 1	KBS20505NS11ECODNSVSCNS00210
On board electronics	Yes
Performance	Servo
Pressure drop rated flow BAR	35
Pressure drop rated flow PSI	500
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	5.700
Product height mm	144.780
Product length in	11.000
Product length mm	279.400
Product width in	2.740
Product width mm	69.596
Seal type	Fluorocarbon
Special features	None
Spool Type	P port blocked, A, B, T connected
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	250
Tank port rating PSI	3600
Valve Mount Type	Line
Valve type	AxisPro level 2
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
