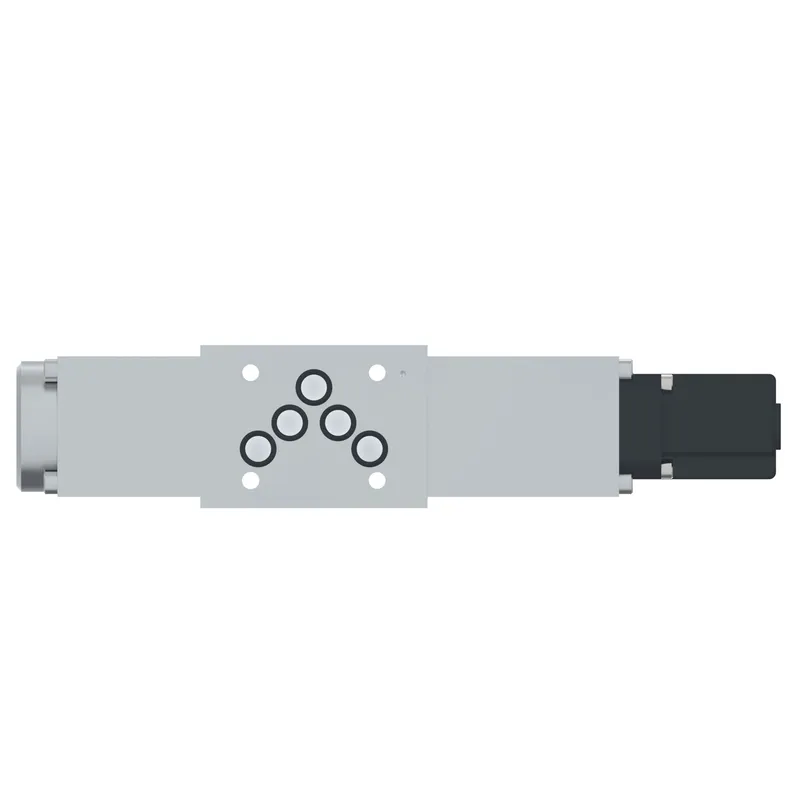

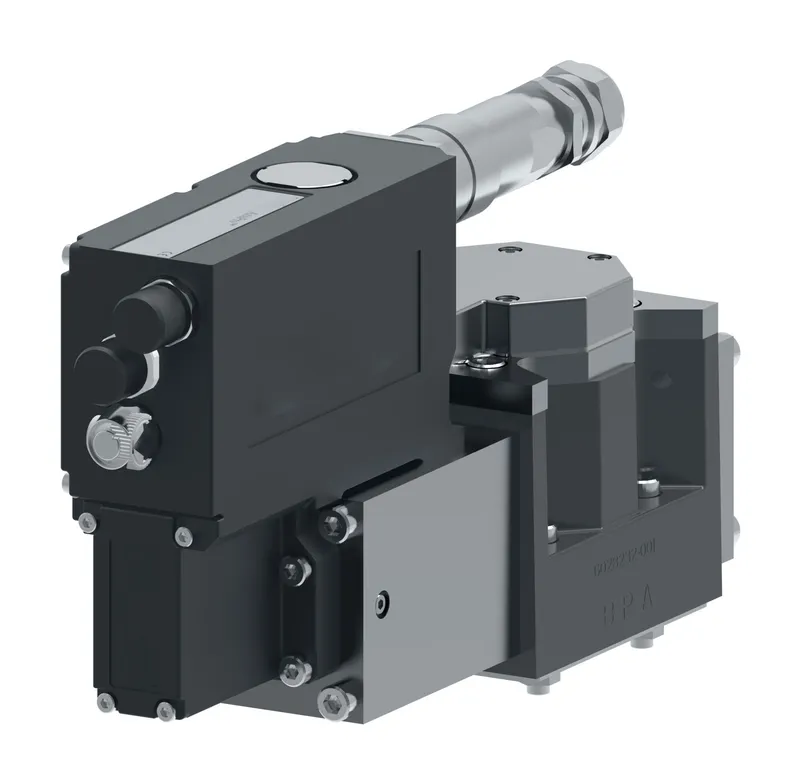

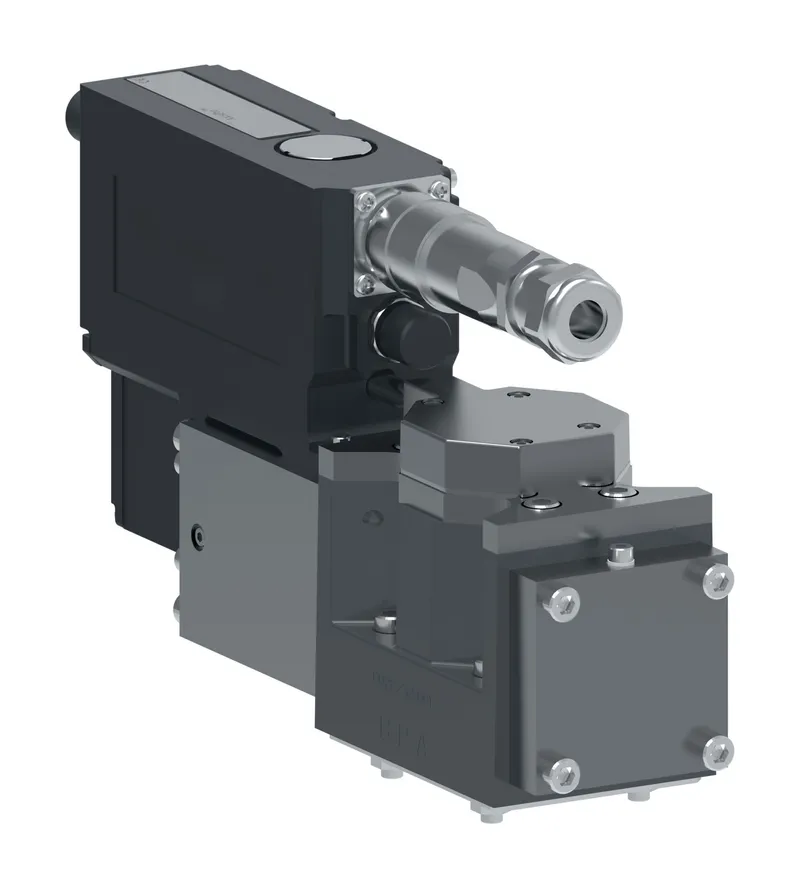

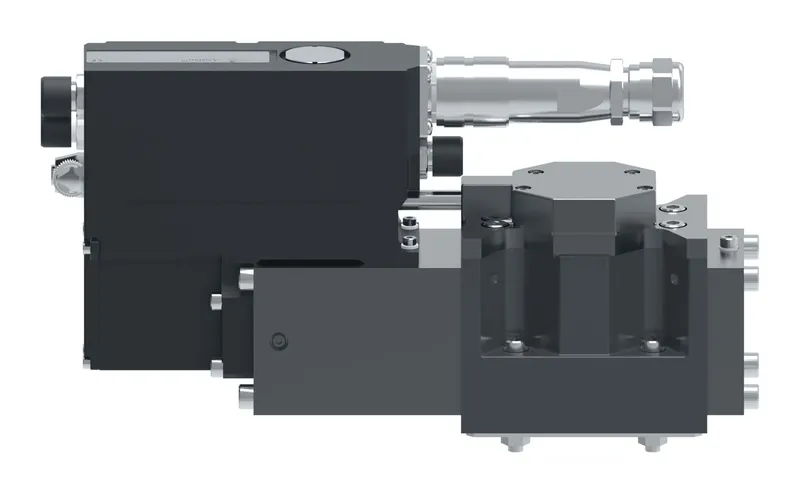

Danfoss 852AN00009C

KBS1-05-01-NS-11-E-NS-004-11, KBS10501NS11ENS00411

MPN: 852AN00009C
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 852AN00009C?

Danfoss KBS1-05-01-NS-11-E-NS-004-11, KBS10501NS11ENS00411, manufacturer part number 852AN00009C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	100.00
A Port flow USGPM	26.40
Actuation Type	Solenoid controlled
B Port flow LPM	100.00
B Port flow USGPM	26.40
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	+/-10V Command +/-10V feedback
Communication protocol	None
Design Series	11 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-05/NFPA D05/CETOP 5/NG10
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KBS10501NS11ENS00411
On board electronics	Yes
Performance	Servo
Product height in	5.700
Product height mm	144.780
Product length in	10.490
Product length mm	266.446
Product width in	2.740
Product width mm	69.596
ProFX compatible	Yes
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	250
Tank port rating PSI	3600
Valve Mount Type	Subplate
Valve type	AxisPro level 1
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
