Danfoss 850AN00126C

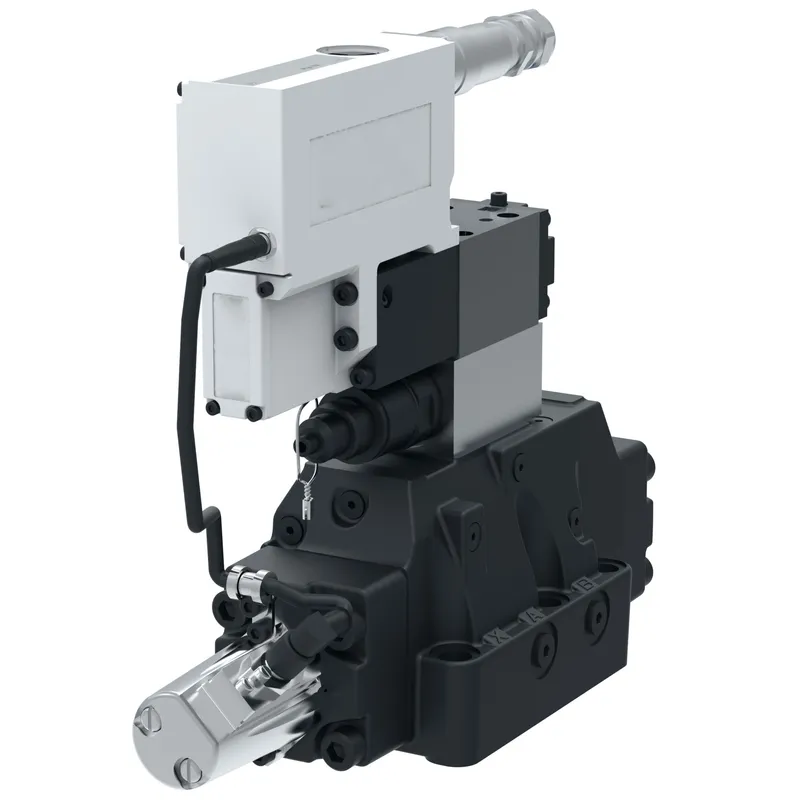

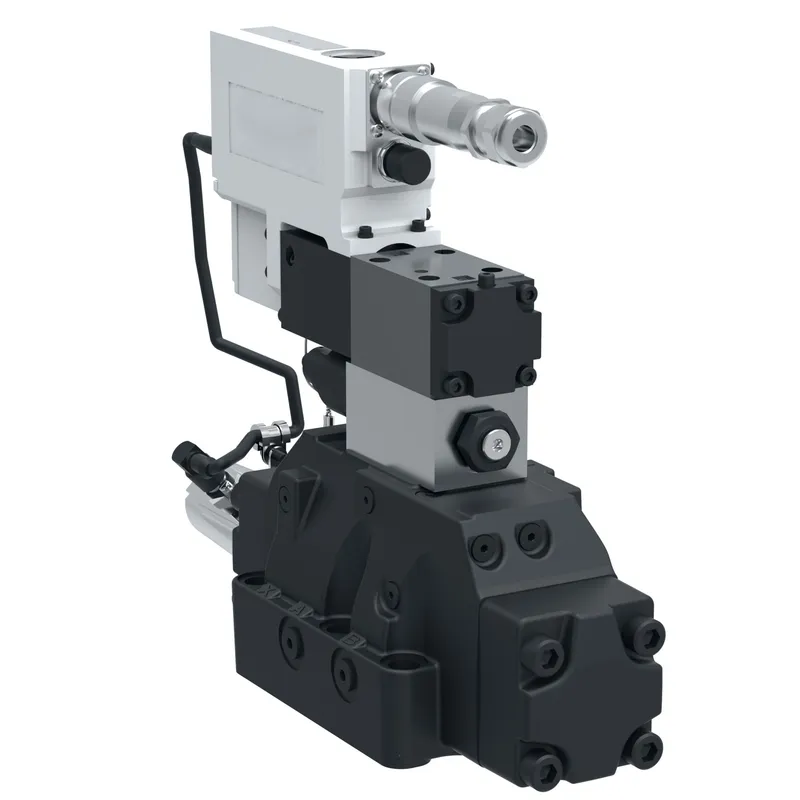

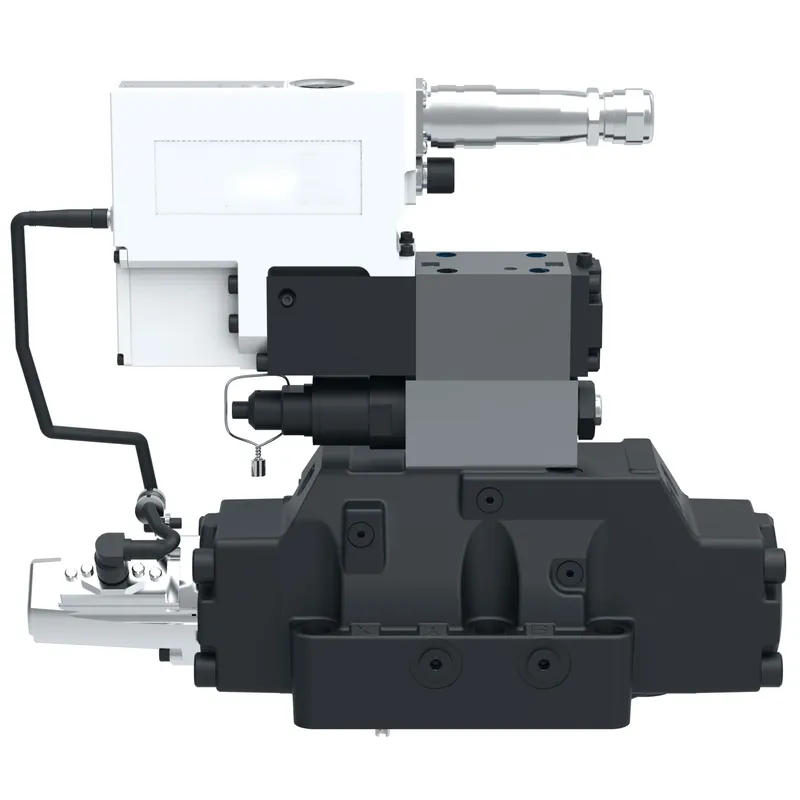

KBH2-07-06-NS-EX-D-11-E-CO-NS-A-NS-VSC-N, KBH20706NSEXD11ECONSANSVSCNS00411

MPN: 850AN00126C
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 850AN00126C?

Danfoss KBH2-07-06-NS-EX-D-11-E-CO-NS-A-NS-VSC-N, KBH20706NSEXD11ECONSANSVSCNS00411, manufacturer part number 850AN00126C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	230.00
A Port flow USGPM	61.30
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	140.00
B Port flow USGPM	37.30
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	+/-10V Command +/-10V feedback
Communication protocol	CANopen
Design Series	11 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-07/NFPA D07/CETOP 7/NG16
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KBH20706NSEXD11ECONSANSVSCNS00
Model Code 2	411
On board electronics	Yes
Performance	Servo
Pilot drain	External
Pilot supply	External
ProFX compatible	Yes
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	P blocked, A&B to tank asymm
Stage	Two stage
Symmetric flow	No
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	AxisPro level 2
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

850AN00126C: frequently asked questions

When can 850AN00126C be shipped?

850AN00126C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 850AN00126C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 850AN00126C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 850AN00126C, subject to availability and destination.
