Danfoss 850AN00091B

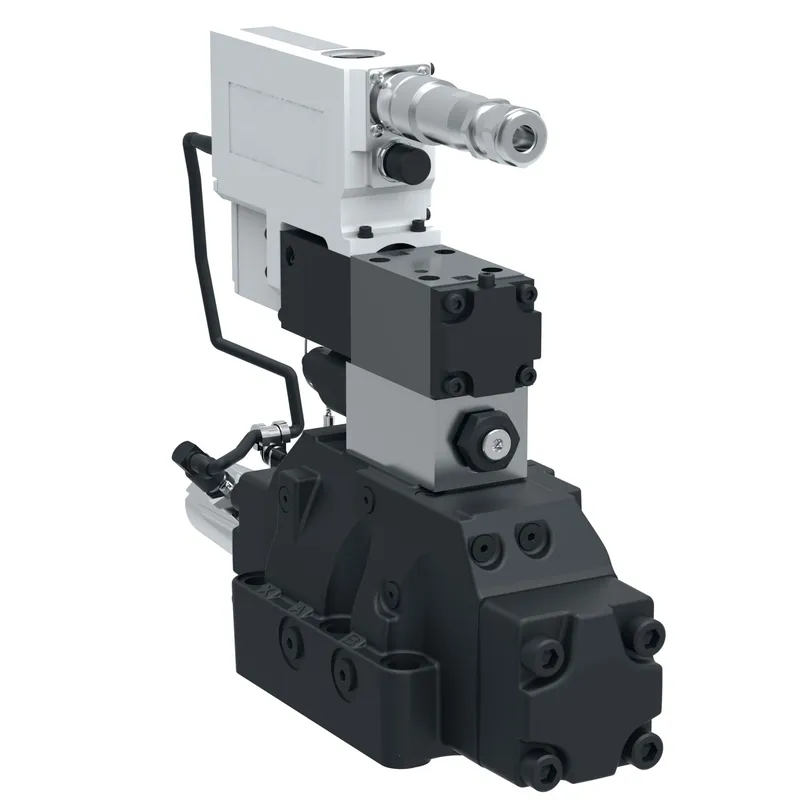

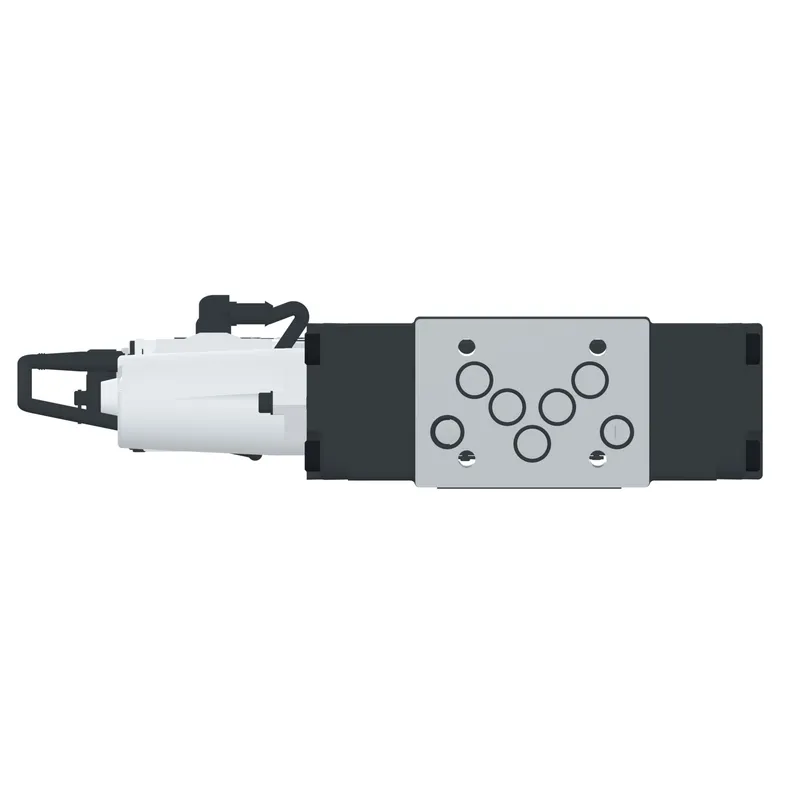

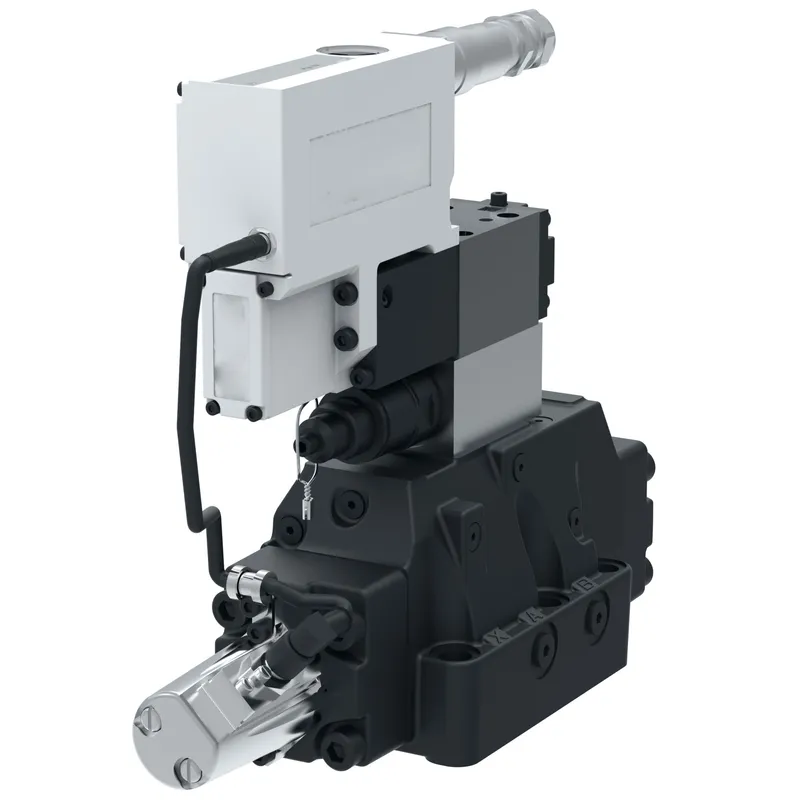

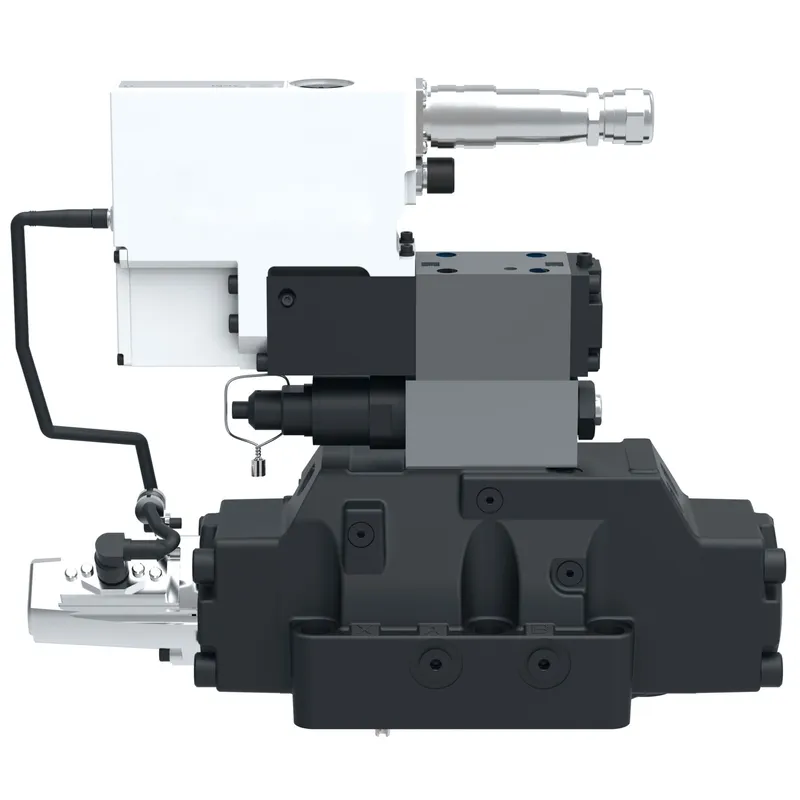

KBH1-07-06-NS-TX-D-11-R-NS-002-10, KBH10706NSTXD11RNS00210

MPN: 850AN00091B
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 850AN00091B?

Danfoss KBH1-07-06-NS-TX-D-11-R-NS-002-10, KBH10706NSTXD11RNS00210, manufacturer part number 850AN00091B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	230.00
A Port flow USGPM	61.30
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	140.00
B Port flow USGPM	37.30
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	+/-10V Command +/-10V feedback
Communication protocol	None
Design Series	10 Series
Electrical Connection	Electrical (PR7) as PC7 but with pin C used for enable signal
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-07/NFPA D07/CETOP 7/NG16
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KBH10706NSTXD11RNS00210
On board electronics	Yes
Performance	Servo
Pilot drain	External
Pilot supply	Internal
Product height in	10.380
Product height mm	263.652
Product length in	11.690
Product length mm	296.926
Product width in	3.620
Product width mm	91.948
ProFX compatible	Yes
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	P blocked, A&B to tank asymm
Stage	Two stage
Symmetric flow	No
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	AxisPro level 1
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
