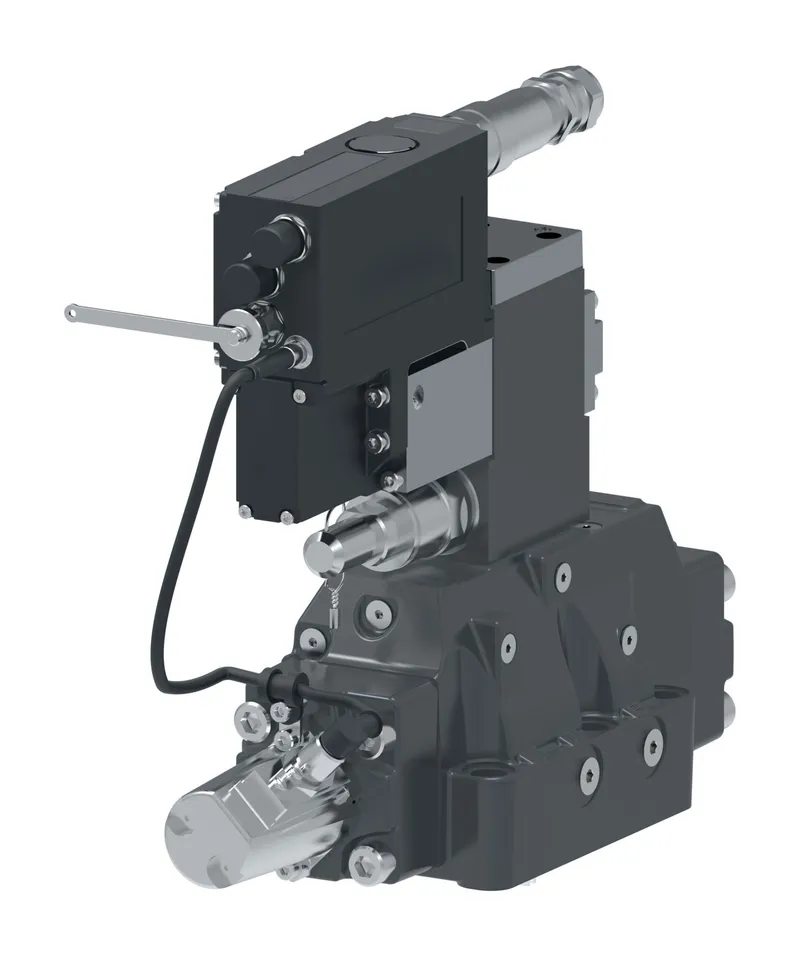

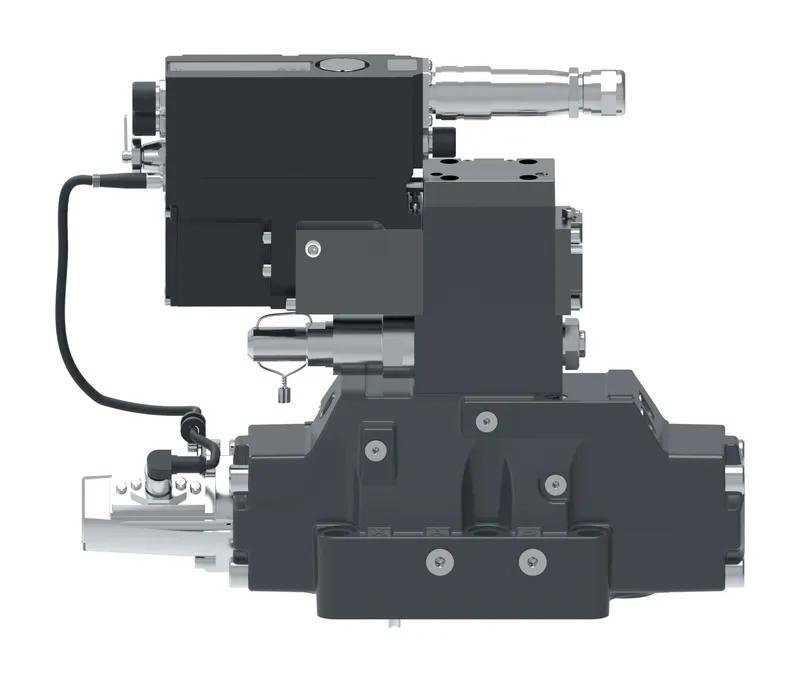

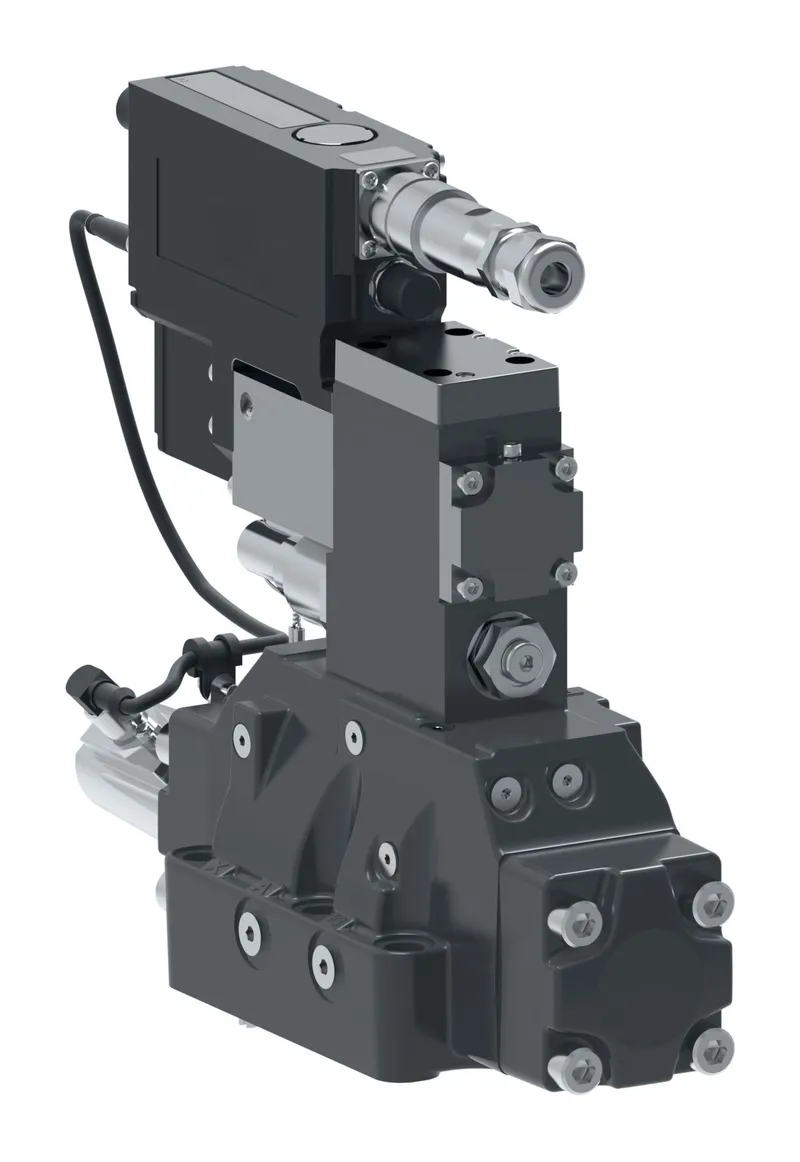

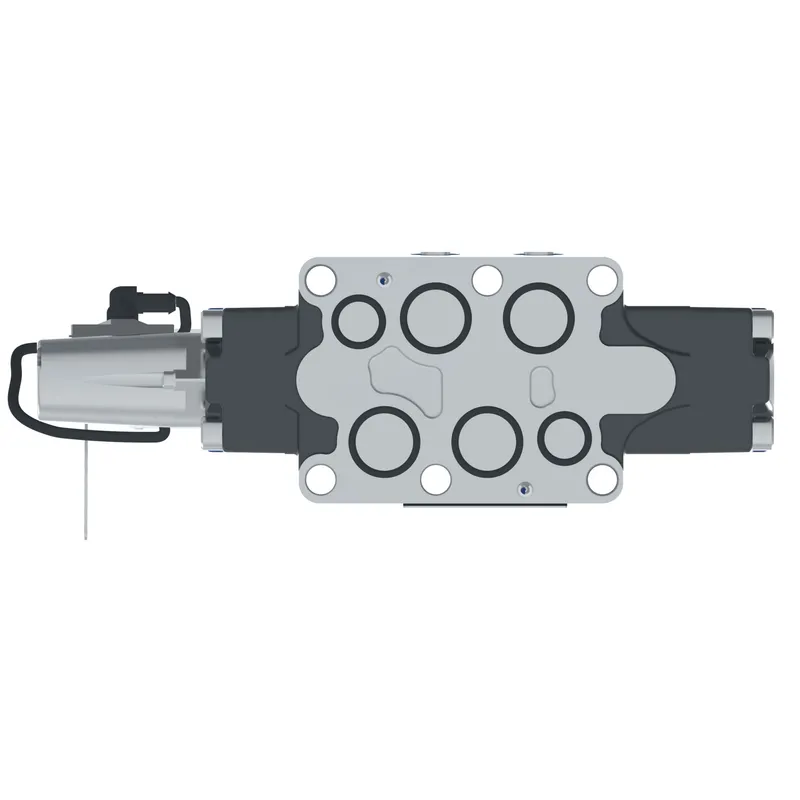

Danfoss 850AN00083B

KBH2-08-01-NS-TX-T-11-E-CO-NS-A-CW-VSC-N, KBH20801NSTXT11ECONSACWVSCNS00210

MPN: 850AN00083B
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 850AN00083B?

Danfoss KBH2-08-01-NS-TX-T-11-E-CO-NS-A-CW-VSC-N, KBH20801NSTXT11ECONSACWVSCNS00210, manufacturer part number 850AN00083B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	375.00
A Port flow USGPM	99.00
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	375.00
B Port flow USGPM	99.00
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	+/-10V Command +/-10V feedback
Communication protocol	CANopen
Design Series	10 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-08/NFPA D08/CETOP 8/NG25
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KBH20801NSTXT11ECONSACWVSCNS00
Model Code 2	210
On board electronics	Yes
Performance	Servo
Pilot drain	Internal
Pilot supply	Internal
Product height in	10.060
Product height mm	255.524
Product length in	10.470
Product length mm	265.938
Product width in	2.760
Product width mm	70.104
ProFX compatible	Yes
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Two stage
Symmetric flow	Yes
Tank port rating BAR	50
Tank port rating PSI	700
Valve Mount Type	Subplate
Valve type	AxisPro level 2
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

850AN00083B: frequently asked questions

When can 850AN00083B be shipped?

850AN00083B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 850AN00083B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 850AN00083B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 850AN00083B, subject to availability and destination.
